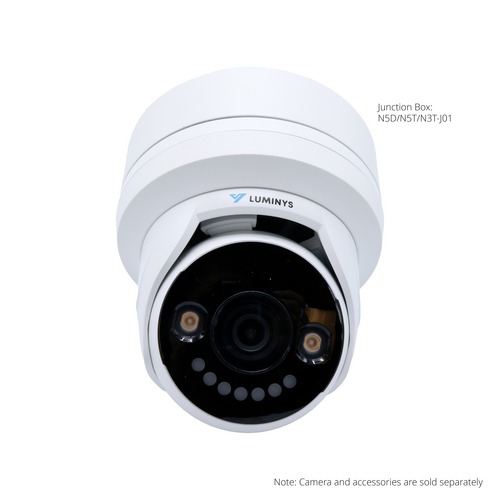

The N3T-8BA2 is part of Luminys’s N3 entry-level series of security devices. N3 series devices are designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons.
Key Technologies
LumiLightBand technology activates a camera’s light strip by schedule or when an event alarm is triggered. The lights come in different colors and can be set to keep steady, wave, or flash for a specific amount of time
LumiLuxSmart technology allows cameras to capture clear, full-color video day or night. When motion is detected, LumiLuxSmart cameras switch from IR LEDs to white-light LEDs to illuminate a scene, then switch back to IR mode once motion has ceased to prevent light pollution and energy inefficiency
Features:
- 8MP Turret Housing
- 2.8 mm Lens
- LumiLightBand
- LumiLuxSmart — IR and White-Light LEDs
- Video Content Analytics: Line Crossing and Intrusion
- iMD
| Specifications | |
| Camera | |
| Luminys Series | N3 Series (Entry Level) |
| Image Sensor | 1/2.8-in. 8MP Progressive CMOS |
| Maximum Resolution | 3840 × 2160 |
| Minimum Illumination | Color: 0.008 Lux at F1.6 (30 IRE) Black/White: 0.0008 Lux at F1.6 (30 IRE) 0 Lux With IR Light On |
| Number of Illuminators | Two (2) IR, One (1) White-Light Supports LumiLuxSmart/LumiLightBand |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | IR/Warm-Light: Up to 30.0 m (98.4 ft) |
| Electronic Shutter Speed | Automatic, Manual; 1/3 s to 1/100,000 s |
| Pan/Tilt/Zoom | Pan and Zoom: 0° to 360° Tilt: 0° to 78° |
| S/N Ratio | > 50 dB |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperature | F1.6 |
| Field of View | H: 111° V: 58° D: 132° |
| Close Focus Range` | 1.5 m (4.9 ft) |
| DORI Distance | Detect: 58.2 m (190.9 ft) Observe: 23.3 m (76.4 ft) Recognize: 11.6 m (38.1 ft) Identify: 5.8 m (19.0 ft) |
| Video | |
| Compression | H.265, H.264, MJPEG (Sub Stream Only) |
| Stream Capability | Two (2) Streams |
| Resolution | 8MP (3840 × 2160), 6MP (3072 × 2048), 5MP (3072 × 1728/ 2880 x 1620), 4MP (2688 × 1520), 3MP (2304 × 1296/2048 × 1536), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240) |
| Maximum Frame Rate | Main Stream: 3840 × 2160 at 1–20 fps Sub Stream: 704 × 576 at 1–25 fps, 704 x 480 at 1–30 fps |
| Video Bit Rate | H.264: 32 to 8192 kbps H.265: 12 to 8192 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Rotation | 0°/90°/180°/270° (Supports 90°/270° With 4MP Resolution and Lower) |
| Mirroring | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
| Analytics | |
| Video Content Analytics | Line Crossing, Intrusion |
| Compression | PCM, G.711a, G.711Mu |
| Interface | Input: Built-in Microphone |
| Alarm | |
| Event | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Scene Changing, Audio Detection, iMD |
| Network | |
| Protocol | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP,RTSP, RTMP, FTP, SFTP ,NAS, DHCP,DNS DDNS, QoS, UPnP, NTP , NFS, PPPoE, SMTP, 802.1x |
| Interoperability | ONVIF (Profile S/G/T), CGI, SDK |
| Browser | Chrome, Firefox |
| Client | LumiViewer, LumiViewer Mobile App |
| Strorage | FTP, SFTP, NAS, MicroSD Card (Max. 256 GB) |
| Electrical | |
| Power Supply | 12 VDC, PoE (802.3af) |
| Power Consumption | 12 VDC: 8.4 W (Max.), 3.2 W (Normal) PoE: 9.8 W (Max.), 4.3 W (Normal) |
| Construction | |
| Net Weight | 0.5 kg (1.1 lb) |
| Gross Weight | 0.7 kg (1.4 lb) |
| Operating Temperature | -40 °C to 60 °C (-40 °F to 140 °F) < 95% RH (Non-Condensing) |
| Storage Temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Protection Ratings | IP67 |
| Dimensions (L × W × H) | Φ 122.0 mm × 104.7 mm (Φ 4.8 in. × 4.1 in.) |
| Material | Metal |
