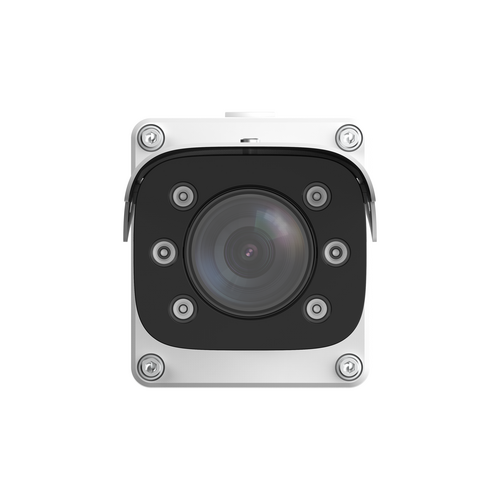

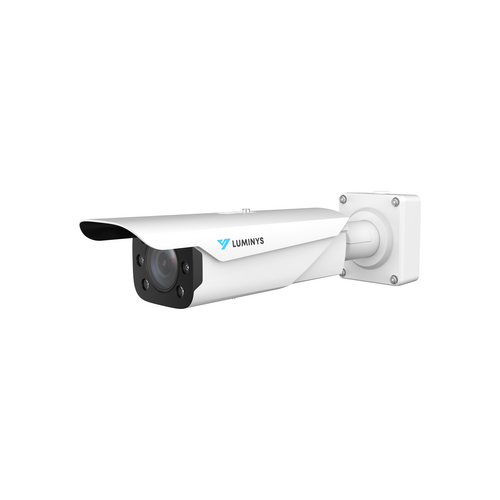

The N9L-4RAL is part of Luminys’s N9 series of specialty security devices. Designed to improve operations and go beyond today’s highest security standards, this LPR camera provides an
efficient, cost-effective way to manage vehicle access and traffic flow at key access points. The camera’s intelligent algorithms can accurately identify vehicle details. The LPR can
categorize the type of vehicle (large bus, large truck, medium truck, sedan, van, small truck, medium bus, SUV, MPV, pickup truck) and if there are front-seat occupants. LumiTrajectory
captures and displays the vehicle’s license plate number and path through the monitored area. The camera can recognize plates from the United States and Canada and up to 12 vehicle
colors (gray, black, white, silver, blue, green, purple, red, orange, pink, brown, yellow). The Luminys LPR Gate System can automatically manage vehicle access at both entry and
exit points. The LPR (license plate recognition) feature can also be used to control gate access based on vehicle identification. This camera is ideal for vehicle detection and identification in applications such as parking lots, community roads, toll gates, and more.
Features:
Specifications | |
Camera | |
Luminys Series | N9 Series (Specialty) |
Image Sensor | 1/1.8-in. 4MP Progressive CMOS |
Maximum Resolution | 2688 × 1520 (OSD Black Strip Excluded) |
Minimum Illumination | 0.002 Lux (Built-In Illuminator On) |
Number of Illuminators | Six (6) IR Illuminators With Adjustable Brightness |
Illuminator Control | Automatic, Manual |
Maximum Illumination Distance | Up to 30.0 m (98.4 ft) |
Maximum Detection Speed | 60.0 km/h (196850.4 ft/h) |
Detection Width | 6 to 7 m (19.7 to 23.0 ft) |
Capture Distance | 8.0 to 30.0 m (26.3 to 98.4 ft) |
Trigger Mode | Video Detection, I/O Coil |
Shutter Mode | Single Shutter |
Electronic Shutter Speed | Automatic, Manual 1/25 s–1/10,000 s |
Lens | |
Lens Mount | Module |
Iris Type | Automatic (W:1.33—T:1.34) |
Lens Type | Motorized Vari-Focal |
Focal Length | 10 to 50 mm (0.4 to 2.0 in.) |
Field of View | Horizontal: 40.55° (W)–9.33° (T) Vertical: 22.7° (W)–5.3° (T) Diagonal: 46.6° (W)–10.63° (T) |
Video | |
Compression | H.265, H.264M, H.264H, MJPEG |
Image Encoding Format | JPEG |
Stream Capability | Two (2) Streams |
Resolution | Main Stream: 4MP (2688×1520), UXGA (1600×1200), 1080p (1920×1080), 720p (1280 × 720) Sub Stream: 720p (1280 × 720), 960H (960× 480), D1 (704 × 480), CIF (352 × 240) |
Maximum Frame Rate | Main Stream: 2688 x 1520/1600 x 1200/1920 x 1080/1280 x 720 at 1–30 fps Sub Stream: 1280 × 720/960 x 480/704 x 408/352 x 240 at 1–30 fps |
Video Bit Rate | H.264/H.265: 2615 to 15689 kbps MJPEG: 7845 to 47068 kbps |
Light Balancing | Wide Dynamic Range (96 dB) |
White Balancing | Automatic, Regional Custom, Manual, Outdoor, Natural Lighting, Street Lamp |
Exposure Mode | Fully Automatic, Customized Automatic, Manual |
Noise Reduction | 3D NR |
Edge Enhancement | Supported |
OSD Overlay | Time, Address, Plate, Vehicle (Color, Type) Vehicle Position, Counterfeit, Checkpoint Direction, Trigger Source, Custom |
Image Tampering Prevention | Watermark, Verification Function |
Analytics | |
Vehicle Recognition Attributes | Vehicle Type/Color, Front-Seat Passenger, Licensed/Unlicensed |
LumiAnalytics | Supported |
Smart Track Frame | Displays Plate and Vehicle Path |
Audio | |
Interface | Output: One (1) Channel (RCA port) |
Alarm | |
Event | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access |
Interface | Input: 2-Channel Optocoupler (On/Off) Output: 2-Channel Relay (Can Be Used to Connect Other Devices) |
Network | |
Interface | One (1) RJ-45 (100/1000 Mbps Ethernet) Port, Two (2) RS-485 Ports, One (1) Wiegand Channel |
Auto Registration | Supported |
Security | Username/Password, MAC Address Binding, HTTPS Encryption, IEEE 802.1×, Network Access Control |
Automatic Network Replenishment (ANR) | Supported via Platform/FTP |
Strorage | Built-In 1 TF Card Port (Max. 128 GB) |
Electrical | |
Power Supply | 12 VDC, PoE+ |
Power Consumption | < 20 W |
Construction | |
Net Weight | 3.2 kg (7.05 lb) |
Gross Weight | 5.2 kg (11.46 lb) |
Operating Temperature | -30 to 65 °C (-22 to 149 °F) 10 to 90% RH (Non-Condensing) |
Protection Ratings | IP67 |
Product Dimensions (L × W × H) | 497.4 × 121.6 × 130.0 mm (19.6 × 4.8 × 5.1 in.) |
Packaging Dimensions (L × W × H) | 625.0 × 305.0 × 270.0 mm (24.6 × 12.0 × 10.6 in.) |
Installation | Wall, Pole, or Ceiling Mount |
Material | Metal and Plastic |
