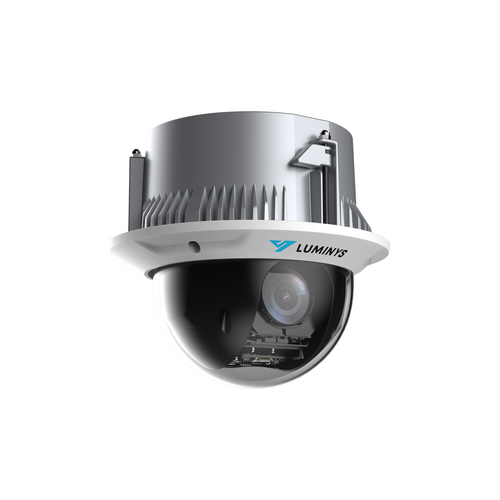

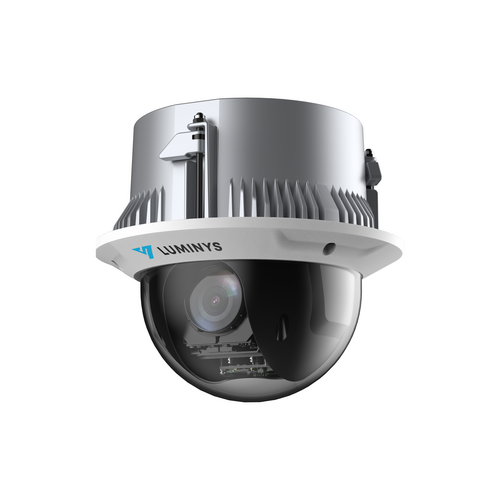

Luminys - P5C-4SA32 - P5-S Mainstream Series 4MP 32x LumiSearch In-Ceiling IP PTZ

Part number:
P5C-4SA32
Price:

The P5C-4SA32 is part of Luminys’s P5-S mainstream series of security devices. P5-S mainstream series devices are designed a with suite of advanced LumiTechnologies to meet the needs of today’s evolving security market.


Key Technologies
LumiTracking technology enhances security and efficiency by automating tracking of people and vehicles. It uses advanced AI algorithms to monitor and predict the direction and speed of moving targets, enabling quick response to potential issues for enhanced security and smooth operation.


LumiSearch+ technology lets you quickly find, track, and identify targets in security footage using a reference image. The LumiSearch+ algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in footage captured by any LumiSearch+-enabled camera and NVR.


LumiAnalytics technology uses detailed metadata and advanced AI algorithms to track important metrics such as people counting and behavior analysis. These insights give businesses highly valuable information to improve and optimize operations.


LumiFocus technology ensures a target stays in focus during the zooming process. LumiFocus uses advanced algoritms to accurately measure the distance from a target and predict the direction of its movement for enhanced image stability and clarity when zooming.



Features:

  • 4MP In-Ceiling Dome Housing
  • 32x Max Optical Zoom
  • VCA+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
  • LumiAnalytics, Face Detection, LumiSearch, People Counting
  • iMD, Smart Object Detection, LumiTracking
  • NDAA Compliant
  • FCC
  • IC
  • UL
Specification
Camera
Luminys SeriesP5-S Series (Mainstream)
Zoom32x
Image Sensor1/2.8-in. 4MP Progressive CMOS
Maximum Resolution2560 × 1440
Minimum IlluminationColor- 0.005 Lux at F1.6, Black/White- 0.0005 Lux at F1.6
Electronic Shutter Speed1/3 s to 1/100,000 s
Pan/Tilt/ZoomPan- 0.1° to 350°, Tilt- 0.1° to 250°
S/N Ratio> 55 dB
Power-Off MemorySupported
Lens
Focal Length4.8 mm to 154.0 mm
AperatureF1.6 to F4.0
Field of ViewHorizontal- 55.8° to 2.3°, Vertical- 31.9° to 1.3°, Diagonal-63.7° to 2.7°
Close Focus Range 0.1 m to 1.5 m (0.3 ft to 4.9 ft)
DORI DistanceDetect: 315.9 ft to 10,104.3 ft (96.3 m to
3079.8 m)
Observe: 125.3 ft to 3,991.1 ft (38.2 m to
1,216.5 m)
Recognize: 64.0 ft to 2,019.4 ft (19.5 m
to 615.5 m)
Identify: 32.2 ft to 1,010.5 ft (9.8 m to
308.0 m)
Pan/Tilt/Zoom
Range; Tilt0°to 90°, Auto Flip
Pan Speed; Manual Control0.1°/s to 350°/s, Preset
Tilt SpeedManual Control
Preset300
Tour8 (Up to 32 Presets per Tour)
Pattern5
Scan5
Scheduled ModesPreset, Pattern, Tour, Scan
Preset FreezingFreezes Images Between Presets
LumiFocusImages Maintain Focus When Zooming In or Out
Video
CompressionSmart Encoding H.265+, H.265, Smart, Encoding H.264+, H.264, MJPEG (Sub Stream 1 Only)
Stream CapabilityThree (3) Streams
Resolution4MP (2560 × 1440), 3MP (2304 × 1296),3MP (2048 × 1536), 1080p (1920 × 1080),960p (1280 × 960), 720p (1280 × 720),VGA (640 × 480), D1 (704 × 480), CIF (352 × 240)
Video
Maximum Frame Rate; Main Stream fps4MP/3MP/1080p/1.3MP/720p at 30 fps, Sub Stream 1
Video Bit Rate; H.26538 kbps to 8960 kbps, H.264
Bit Rate ControlCBR/VBR
Day/NightAutomatic (ICR), Color, Black and White
Light BalancingWide Dynamic Range (120 dB), BLC, HLC
Noise Reduction2D NR, 3D NR
Image Rotation180°
Image StabilizationElectronic
DefogElectronic
Region of InterestEight (8) Areas
Privacy Masking24 Areas (Up to 8 Areas in the Same View)
Analytics
Video Content Analytics+Line Crossing, Intrusion, Loitering,Detection, Parking Detection, People, Counting, Abandoned/Missing Object, People Gathering, Vehicle/Human Alarm, Classification, Linkage Tracking
Intelligent Motion DetectionSupported with Alarms for Vehicles and Humans
Face DetectionCapture Snapshots and Facial Attributes
People CountingEnter/Exit and In-Area People Counting, Queue Management With Report
LumiSearch+Supported When Used With LumiSearch+-Enabled NVRs
LumiAnalyticsFace Detection, People Counting, Heat Map, Queue Management, Smart Object Detection
LumiTrackingAutomatically Tracks a Target in Motion for an Allotted Amount of Time or Until the Object Exits the Scene
Audio
CompressionG.711a, G.711Mu, PCM, AAC
Sampling BitratePCM
Interface; InputOne (1) Channel, Output
Alarm
EventMotion/Tampering Detection, Audio Detection, Network Disconnection Detection, IP Conflict Detection, Memory Card State Detection, Memory Space Detection
LinkageCapture, Recoding, Send Email, Preset, Tour, Pattern, Alarm Digital Output, Audio
Interface InputTwo (2) Channels
OutputOne (1) Channel
Network
ProtocolRJ-45 (10/100 Base-T)
ProtocolHTTP, HTTPS, TCP/IP, IPv4, RTSP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, SNMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, NFS
InteroperabilityONVIF (Profile S/G/T), CGI, SDK, P2P
BrowserChrome, Firefox, Safari
ClientLumiViewer, LumiViewer Mobile App
StorageFTP/SFTP, NAS, Micro SD Card (Max. 512 GB)
Electrical
Power Supply24 VDC (2.5 A ± 25%), PoE+ (802.3at)
Power Consumption15 W (Max.)
Construction
Net Weight2.2 kg (4.9 lb)
Gross Weight3.7 kg (8.2 lb)
Operating Temperature–22 °F to +140 °F ( -30 °C to +60 °C)
Protection RatingsIK10
DimensionsΦ198.2 mm × 176.6 mm (Φ7.8 in. × 7.0 in.)
MaterialMetal
Certifications and Compliance
CertificationsFCC, IC
ComplianceNDAA
