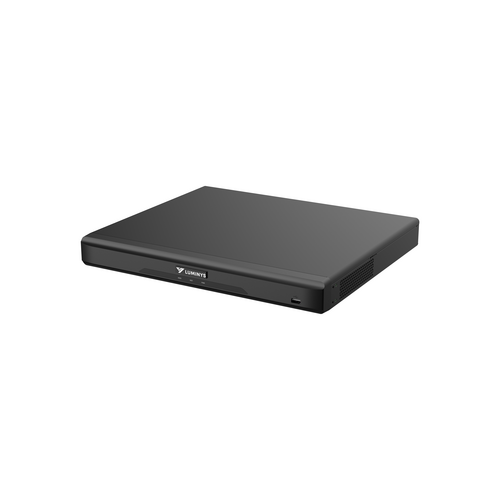

Luminys - R32-8PA4 - R3 Series NVR, 8MP 8 Channel 1U 8-Port PoE, 2SATA, Analytics by Camera, 4TB
he R32-8PA is part of Luminys’s R3 entry-level series of devices. R3 series devices are designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons.
Key Technologies:
LumiViewer
R3 series NVRs are compatible with the LumiViewer platform. LumiViewer streamlines security management by providing real-time surveillance, playback of historical footage, and instant alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual intercom for video calls and door control, and remote access management, LumiViewer ensures comprehensive and efficient monitoring. The platform is available for desktop and mobile devices.
License Plate Recognition (LPR) Technology
R3 series NVRs support LPR technology by camera. LPR technology improves safety and operational efficiency by automatically capturing and reading vehicle license plates for easy and accurate identification.
Features:
- 4K NVR
- 8 Channels with Two (2) SATA Ports
- HDMI and VGA Output
- PoE Plug-and-Play
- Supports Analytics by Camera
Certifications and Compliance
- NDAA Compliant
- FCC
| Specifications | |
| Video | |
| Video Input | 8 Channels |
| Recording Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, |
| D1, VGA, CIF | |
| Output Resolutions | HDMI: 4K (3840 × 2160), 1920 × 1080, |
| 1280 x 1024, 1280 x 720 | |
| VGA: 1920 × 1080, 1280 x 1024, 1280 x 720 | |
| Live View/Playback Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, |
| D1, VGA, CIF | |
| Decoding | |
| Format | H.265, H.264, H.264H, H.264B, MJPEG |
| Capability | 2CH: 8MP at 30 fps |
| 8CH: 1080p at 30 fps | |
| Synchronous Playback | 1, 4, 8 Views |
| Supported Analytics by Camera | |
| Intelligent Motion Detection | 8CH |
| Video Content Analytics (VCA) | 8CH |
| Face Detection | 4CH |
| License Plate Recognition | 4CH |
| Smart Search | Search by target classification, pictures by channel, time and event type |
| Interface | |
| SATA | Two (2) Ports |
| HDD | Up to 10TB per HDD |
| Network | One (1) RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps) |
| PoE | Eight (8) RJ-45 Self-Adaptive Ethernet (10/100 Mbps) |
| USB | Front Panel: 1 x USB 2.0 Rear Panel: 1 x USB 2.0 |
| Alarm | Input: Four (4) Channels |
| Output: Two (2) Channels | |
| Audio | Input: 1-Channel RCA Input |
| Output: 1-Channel RCA Output | |
| Network | |
| Bandwidth | Incoming: 160 Mbps Outgoing: 60 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, |
| SNMP, RTSP, UDP, SMTP, NTP, DHCP, | |
| DNS, DDNS | |
| Interoperability | ONVIF, RTSP |
| PoE Standard | IEEE 802.3 af/at |
| Client | LumiViewer, LumiViewer Mobile App |
| Electrical | |
| Power Supply | 100-240 V, 47-63 Hz. 3.5 A |
| Power Consumption | < 10 W (HDD Not Included) |
| PoE: 115 W (Max. Output for Single Port: | |
| 25.5 W) | |
| Construction | |
| Weight | 2.5 kg (5.5 lb), Without HDD |
| Operating Temperature | –10 °C to 55 °C (10 °F to 131 °F) |
| 10% to 93% | |
| Dimensions (W × L × H) | 372.0 × 325.8 × 43.7 mm |
| (14.7 × 12.8 × 1.7 in.) | |
