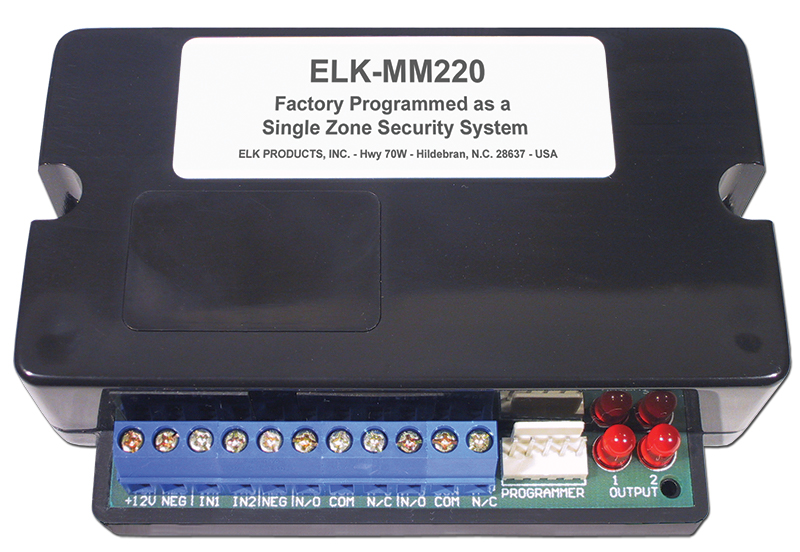

ELK - MM220 - 2 Input 2 Output Programmable Controller

The Magic Module (ELK-MM220) is a two digital input, two form C relay output programmable controller. It may be used as a stand alone field programmable controller in a vast array of applications from timers, single zone security system, pulse stretcher, simple process controllers, etc.

The MM220 comes factory pre-programmed as a single zone security system and can be re-programmed by using a personal computer. The MM220 program is stored into re-programmable Electrically Erasable Programmable Read Only Memory (EEProm memory).

Features:

• Two Digital Inputs
• Two Relay Outputs (jumper programmable "transistor open collector" output on relay 2)
• 4096 program bytes using SIMPLE programming language
• 4 general purpose Counters, range 0 to 255 counts
• 4 general purpose Timers, range 1/10 second to over 255 hours
• Program stored in non-volatile EEProm memory
• Surface Mount ABS Enclosure with Snap-On Cover
• Lifetime Limited Warranty
