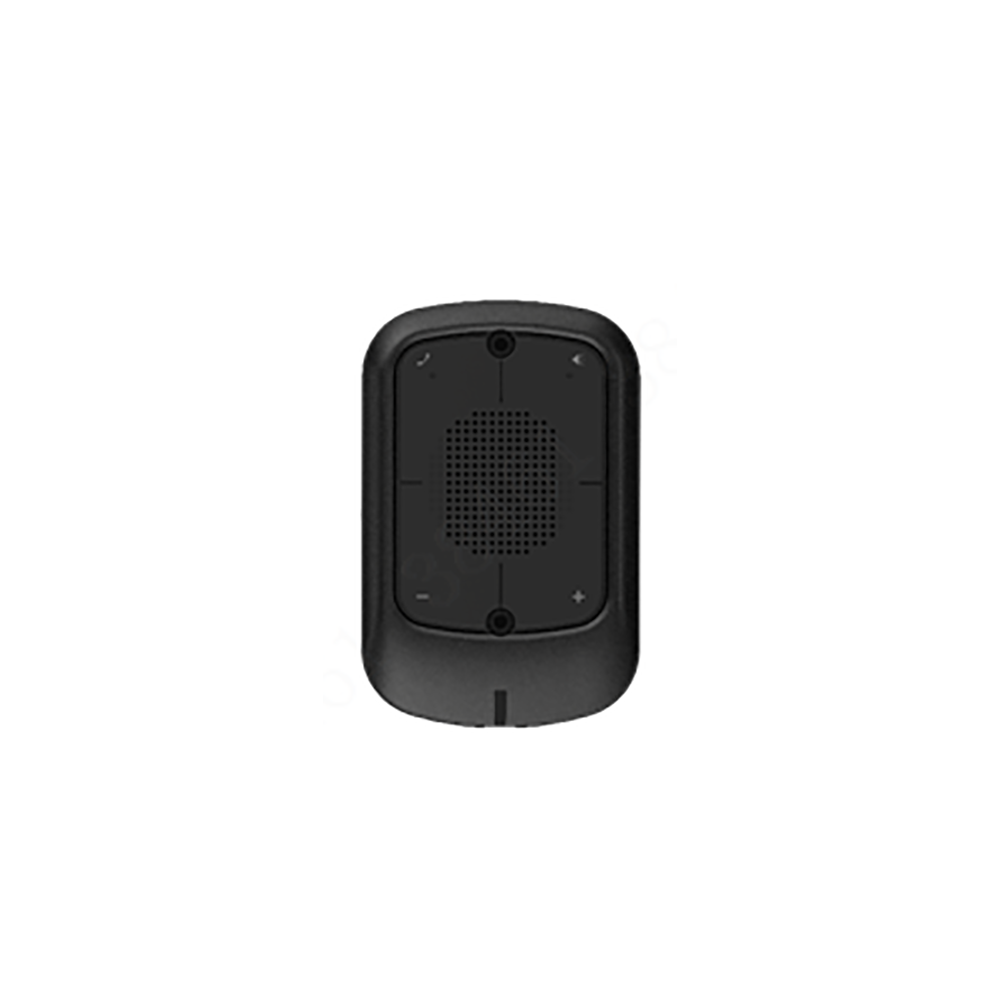

Full Duplex two-way microphone, Audio: 1-channel audio input, 1-channel loudspeaker output, Pickup Range: 90cm
Features:
- Compact Design
- Button Trigger for DVR/NVR to Begin Bi-directional Talk
- Amplifier Function to Drive the Loudspeaker on the Vehicle
- Standard Aviation Port for Easy and Reliable Connection
System
| Working Mode | Full Duplex |
| Operation Mode | Button |
| Audio | Input: One (1) Channel Output: One (1) Channel, Loudspeaker |
| Pickup Range | 900 mm (35.43 in.) |
| Indicator Lights | Two (2) |
Electrical
| Power Supply | 12 VDC |
| Consumption | Standard: ≤ 1.5 W |
Construction/Environmental
| Cable Length | 1700.0 mm (66.93 in.) |
| Operating Temperature | –30 °C to 70 °C (–22 °F to 158 °F) |
| Operating Humidity | 0% to 90% |
| Pressure Atmosphere | 86 kPa to 106 kPa |
