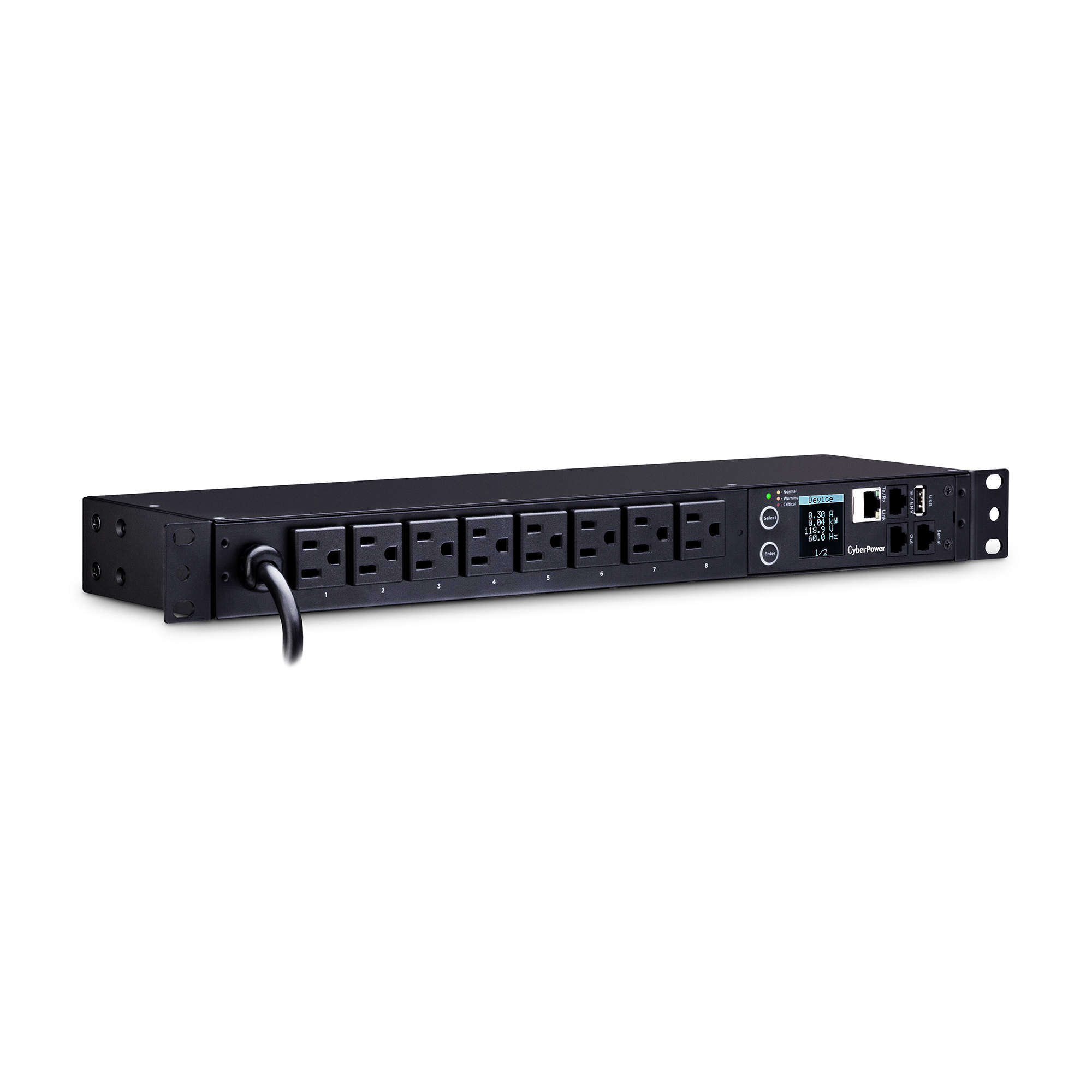

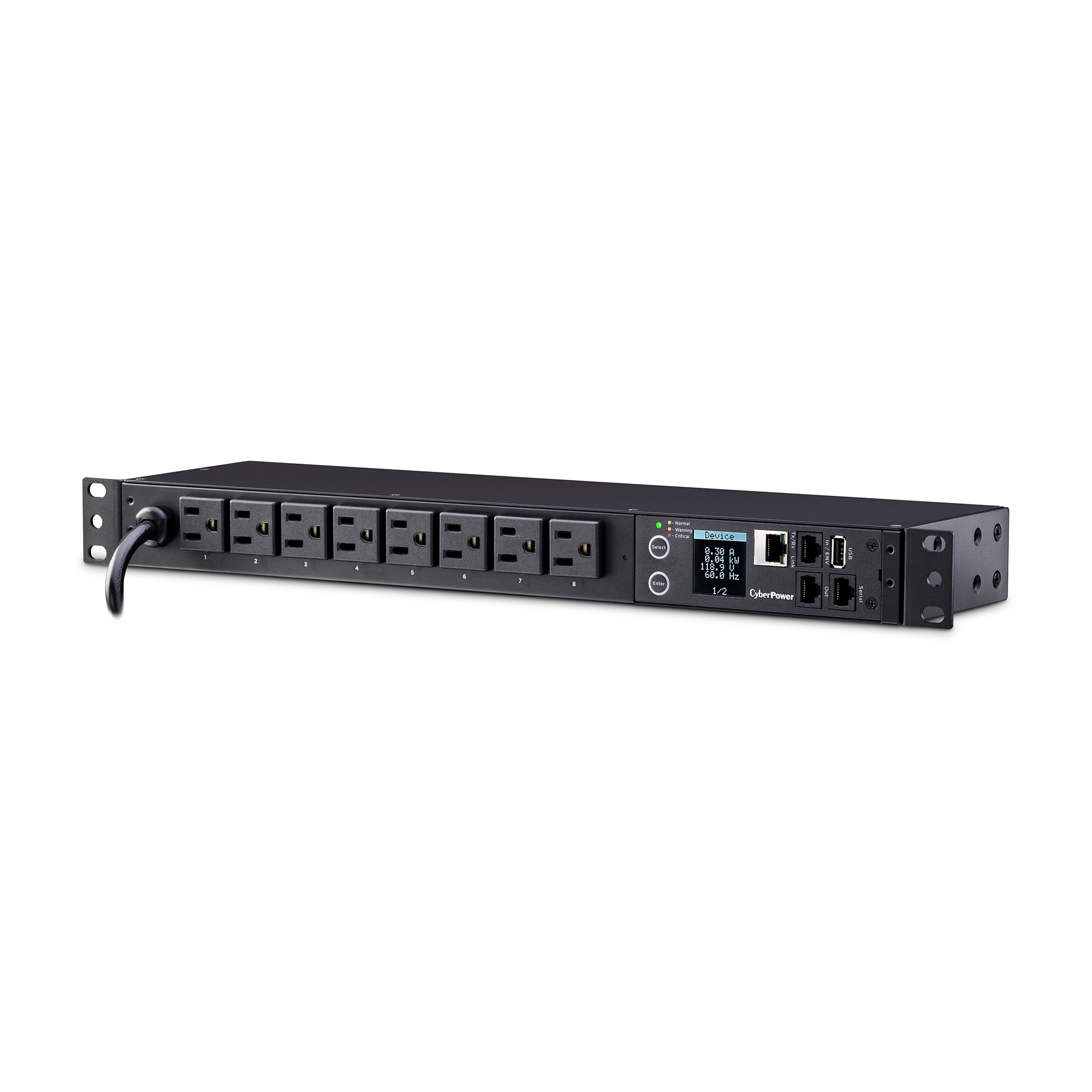

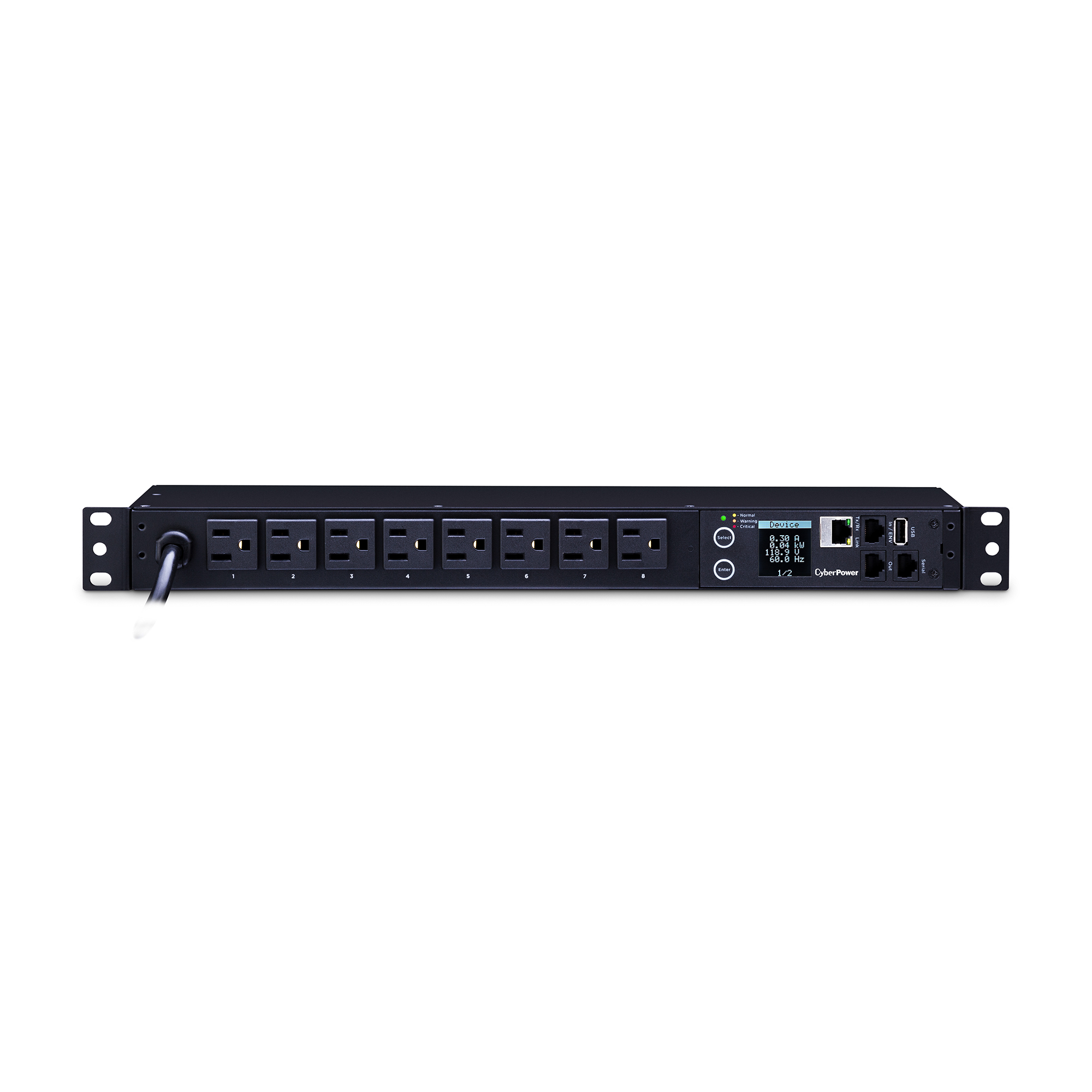

The CyberPower PDU31001, an 8-outlet (front), 1U rackmount monitored power distribution unit (PDU) provides 120V 15A output. PDU31001 distributes power to 8 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD.
The PDU31001 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.
Product Features:
Input | |
Cord Length | 12 ft (3.7 m) |
Derated Input Current | 12:00 AM |
Input Frequency Range | 50 Hz – 60 Hz |
Input Plug Type | NEMA 5-15P |
Maximum Input Current | 15A |
Nominal Input Voltage | 100 – 120 VAC |
Phase | Single Phase |
Output | |
Nominal Output Voltage | 100 – 120 VAC |
Outlet Type | 8 – NEMA 5-15R |
Outlets – # of Banks | 1 |
Outlets – Total | 8 |
Overload Protection | None |
USB Charge Port | No |
Management & Communications | |
Environmental Sensor | Optional, via RJ45 |
Hardware Connection Port | Ethernet (RJ45), Serial (RJ45) |
LCD | Multifunction LCD |
LED Indicators | Tx/Rx, LINK, Normal/Warning/Critical Status |
Modular Expandability (Cascading) | Yes, via RJ45 |
Monitoring Level | Input |
Outlet switching | No |
Protocols | IPv4, TCP/IP, UDP, SNMPv1, HTTP, NTP, DNS, Telnet, DHCP, SMTP, FTP, IPv6, SNMPv3, HTTPs, SSH, SSL, TLS, LDAP(S), RADIUS, Syslog, CLI, Windows AD |
Software (Free Download) | PowerPanel® Business |
Upgradeable firmware | Yes |
Physical | |
Adjustable Mounting Brackets | 2 sets (L-Short, L-Long) |
Color | Black |
Cord Retention Tray/Cord Organizers | Yes |
External Site Ground Pin | Yes |
Form Factors Supported | 1U Rackmount, Wallmount, Undercounter Installation Supported |
Material of Construction | Metal |
Rack Height | 1U |
Dimensions | |
Physical Dimensions – (WxHxD) (cm) | 26.04 x 6.99 x 49.53 (cm) |
Physical Dimensions – (WxHxD) (in) | 10.25 x 2.75 x 19.5 (in) |
Physical Dimensions – (WxHxD) (mm) | 260 x 70 x 495 (mm) |
Physical Weight (kg) | 3.49 |
Physical Weight (lb) | 7.7 |
Dimensions - Shipping | |
Shipping – Weight (kg) | 9.19 |
Shipping – Weight (lb) | 20.25 |
Shipping Dimensions – (WxHxD) (cm) | 26.04 x 6.99 x 49.53 (cm) |
Shipping Dimensions – (WxHxD) (in) | 10.25 x 2.75 x 19.5 (in) |
Shipping Dimensions – (WxHxD) (mm) | 260.35 x 69.85 x 495.3 (mm) |
Environmental | |
Operating Elevation | 0 – 11483 ft (0 – 3500 m) |
Operating Relative Humidity | 0 – 95 % (non-condensing) |
Operating Temperature | 32 – 131 °F (0 – 55 °C) |
Storage Elevation | 0 – 49213 ft (0 – 14999 m) |
Storage Temperature | 5 – 140 °F (-15 – 60 °C) |
Certifications | |
Environmental | RoHS Compliant |
Safety | UL 60950-1, FCC Class A |
Warranty | |
Extended Warranty Option | WEXT5YR-PDU1A |
Product Warranty | 3 Year Limited Warranty |
