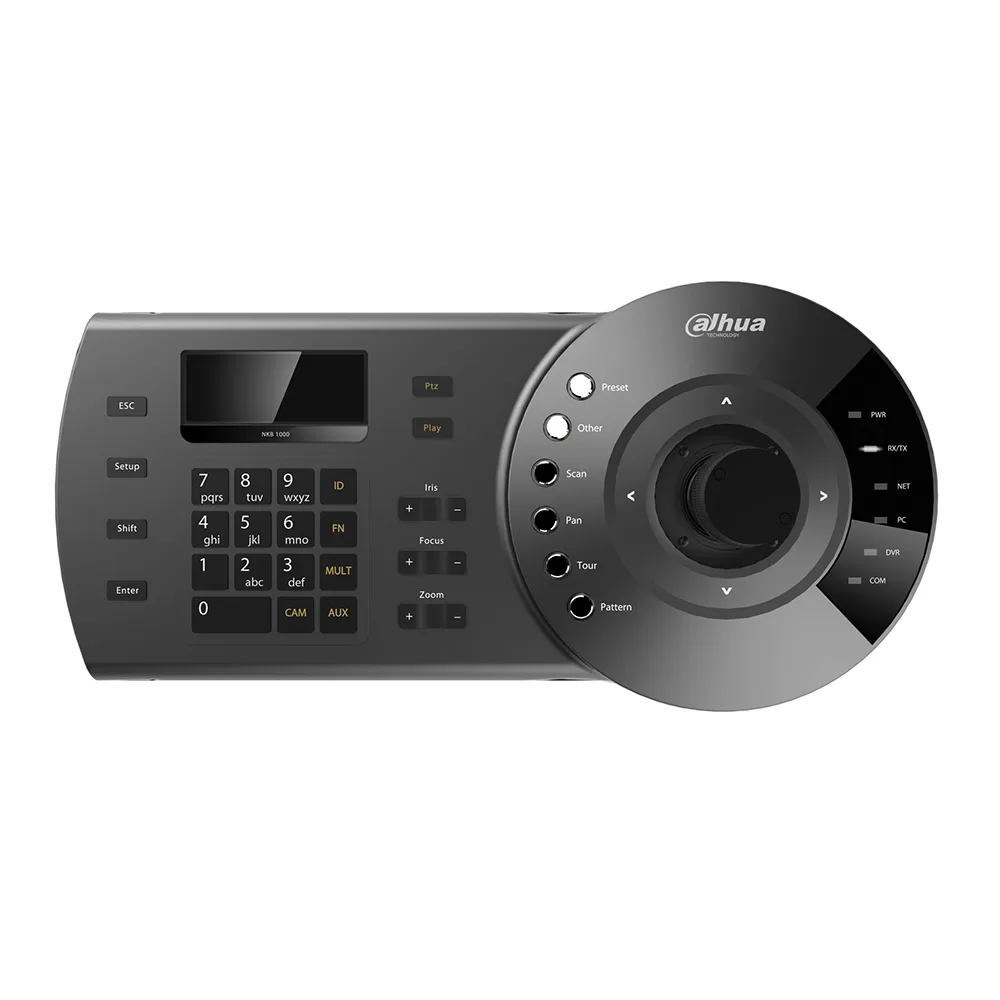

Dahua - DHI-NKB1000 - Network Control Keyboard with mono LCD screen (128*64)
Part number:
DHI-NKB1000
Price:
Network Control Keyboard with mono LCD screen (128*64)
Features:
- Control High Speed Domes, DVRs and Network Video Servers
- Three-dimensional Joystick Control for PTZ Functions
- Preset Position, Auto Scan, Auto Pan, Auto Tour and Pattern Control
- Support for Auxiliary Functions
- On-screen Menu
- Supports SmartPSS (via USB connection)
| Technical Specification | |
| System | |
| Keyboard Key Panel | Electromechanical |
Joystick | Three-axis Vector-solving Twisting Function Return to Center |
| Display | LCD, 75.20 mm x 33.85 mm (2.96 in. x 1.33 in.) |
| Interface | |
| Keyboard Connector | RJ45 RS232 RS485 RS422 USB |
| Keyboard Communication | Direct Mode, Network Mode |
Direct Mode | Interface: RS232/RS485 DVR Protocol: DH2 PTZ Protocol: DH-SD/Pelc-D/Pelco-P/Pelco-D1/Pelco-P1 |
| Network Mode | Interface: RJ45 DVR/Network PTZ: IP Address/Port/Protocol |
| Electrical | |
Power Supply | Power Adapter Input: 100 VAC to 240 VAC, 50/60 Hz Output: 12 VDC, 1000 mA |
| Power Consumption | 5 W |
| Environmental | |
| Operating Temperature | -10° C to +55° C(14° F to +131° F), 95% RH |
| Operating Humidity | 10% to 90% |
| Atmospheric Pressure | 86 kpa to 106 kpa |
| Construction | |
Dimensions | 330.0 mm x 160.0 mm x 37.50 mm (12.99 in. x 6.30 in. x 1.48 in.) Height with Joystick: 100 mm (3.94 in.) |
| Net Weight | 2.50 kg (5.52 lb) |
