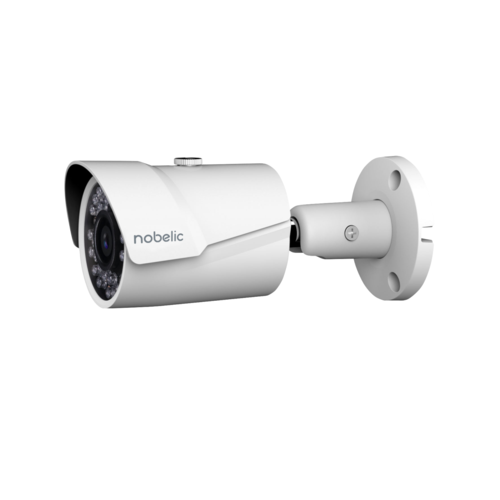

Nobelic - NBLC-3430F - 4MP IR Bullet Network Camera
Nobelic - NBLC-3430F - 4MP IR Bullet Network Camera
Part number:
NBLC-3430F
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

Nobelic NBLC-3430F 4MP IP Camera with PoE support



Features:

  • 1/3” 4 Megapixel progressive CMOS
  • H.264 dual-stream encoding
  • 20fps@4M(2688x1520), 30fps@3M(2304×1296)
  • Max IR LEDs Length 30m
  • Horizontal angle of view 83°
  • DC 12V, PoE
  • DWDR, 3DNR, AWB, AGC, BLC
  • Works with Ivideon cloud surveillance service
  • Edge storage - micro SD card up to 128GB
  • Ingress Protection IP67
NameNBLC-3430F
Image Sensor1/3” 4 Megapixel progressive CMOS
Effective Pixels2688(H) x1520(V)
Scanning SystemProgressive
Minimum Illumination0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N RatioMore than 50dB
IR Distance30m
Day/NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / DWDR
White BalanceAuto/Manual
Gain ControlAuto/Manual
Noise Reduction3D DNR
Privacy MaskingOff / On (4 Area, Rectangle)
Lens
Lens TypeFix
Focal Length3.6mm
Angle of ViewH: 83°
Max. ApertureF2.0
Video
CompressionH.264
Resolution

4M(2560x1440) / 3M(2304×1296) / 1080P(1920×1080) /

720P(1280×720) / D1(704×480) / CIF(352×240)

Frame

Rate

Main4M(1 ~ 20fps) / 3M (1 ~ 30fps) / 2M (1 ~ 30fps)
SubD1/CIF(1 ~ 30fps)
Bit RateH264:32K ~ 8192Kbps
Privacy MaskingOff / On (4 Area, Rectangle)
Audio
InterfaceN/A
Network
EthernetRJ-45 (10/100Base-T)
Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP

InteroperabilityONVIF, CGI
Mobile appsiOS, Android
Electrical
Power SupplyDC 12V, PoE (802.3af)
Power Consumption<5W(IR on)
Environmental
Operating Conditions-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress ProtectionIP67
Dimensions72mm×80mm×212.8mm (2.8" x 3.1"x 8.4")
Name
Description
Size
Downloads
File
Datasheet
0.3mb
