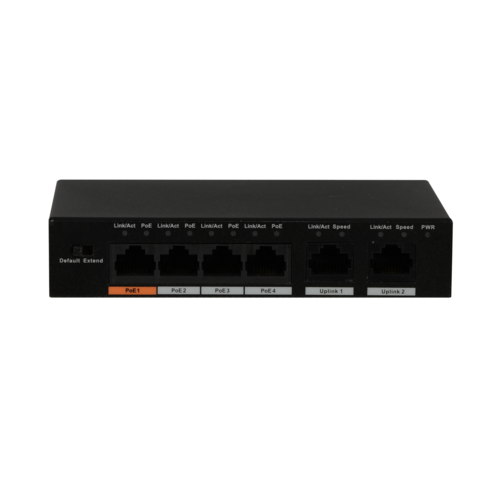

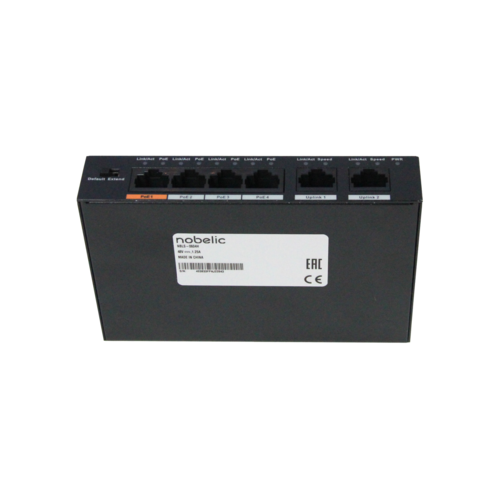

Nobelic - NBLS-0604H - 4+1 Ports Unmanaged PoE Switch
Part number:
NBLS-0604H
Price:
Switch NBLS-0604H is a 4-port fast Ethernet switch, which supports 250 meters long distance PoE transmission. It provides 4*10/100Mbps PoE ports and 2*100 Mbps uplink ports. The product is equipped with two transmission modes (Default/Extend), which are controlled by DIP switch.
Features:
- Layer two commercial switch
- Supports IEEE802.3, IEEE802.3u, and IEEE802.3X standards
- Supports IEEE802.3af and IEEE803.3at power supply standards

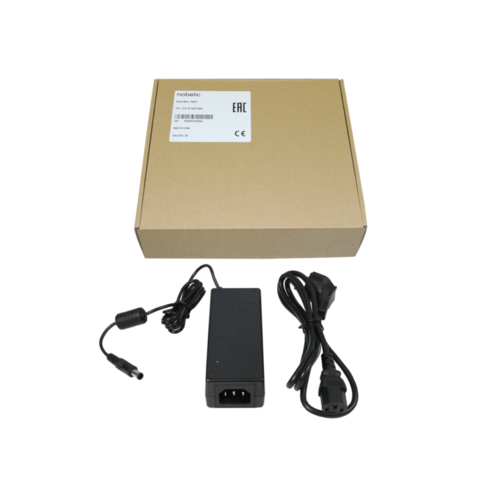

In Box:
- Switch NBLS-0604H
- User Manual
- Power Supply Unit
| Model | NBLS-0604H |
| Ethernet Port | 2*10/100Mbps Uplink ports 4*10/100 Mbps PoE ports |
| Power-over-Ethernet | Port 1 ≤ 60W, Port 2-4 ≤30W, Total ≤ 60W |
| PoE Protocol | IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE |
| Power | DC48~57V power adapter |
| Working Temperature | -10°C~+55°C |
| Dimension (W×D×H) | 130mm×85mm×26mm |
| Weight | 0.3kg |
Name
Description
Size
Downloads
File
Data Sheet
0.2mb
