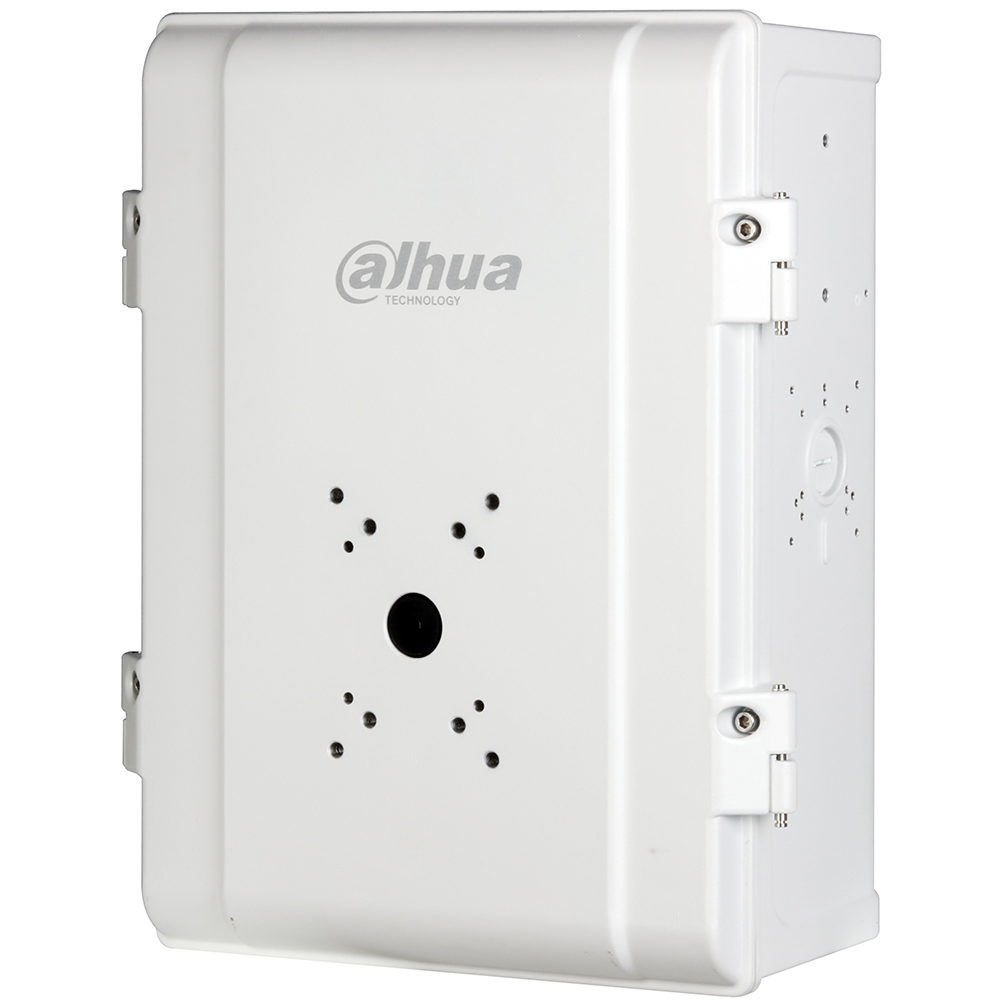

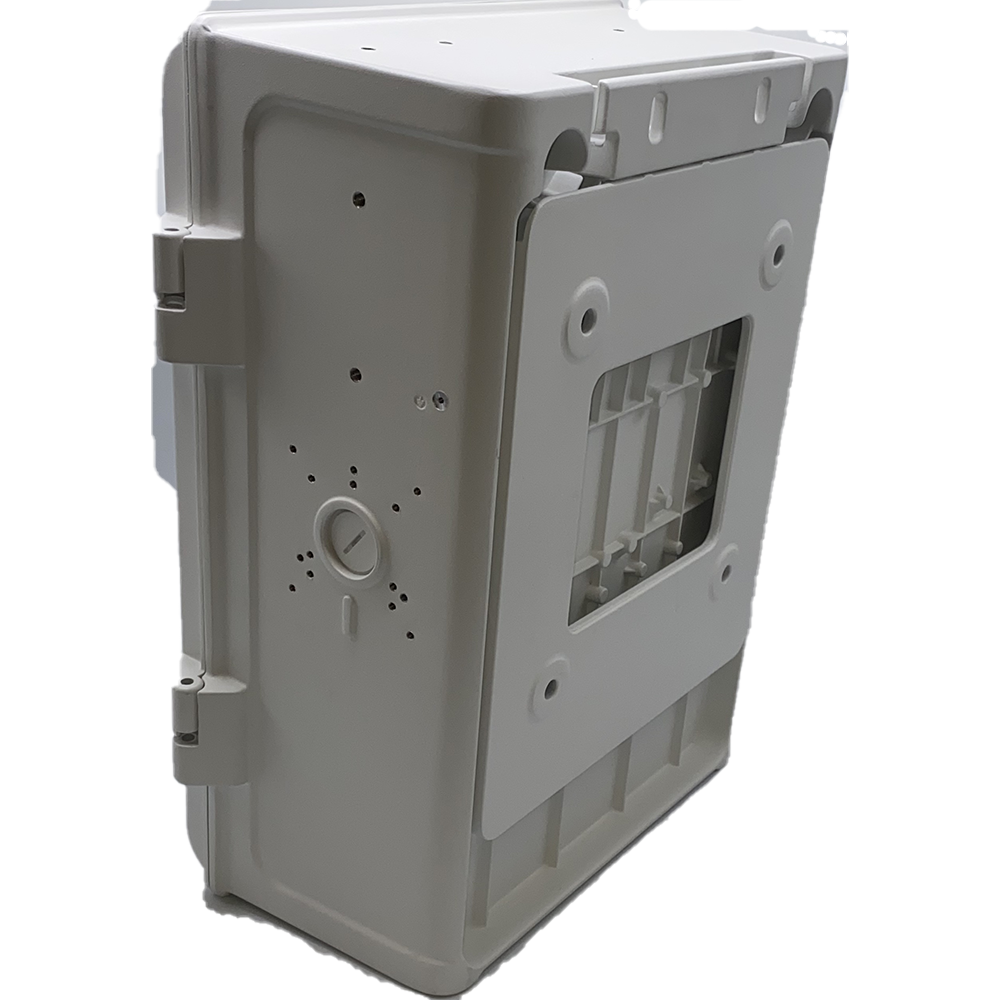

Dahua - DH-PFA143 - Outdoor Junction Box
Part number:
DH-PFA143
Price:
Outdoor Junction Box
Features:
- All-aluminum Shell
- Aesthetic Design, Easy Installation
- Tamper Alarm with Optional Alarm Switch
- IP66 Ingress Protection and IK10 Vandal Resistance
- Compatible with DH-PFA153 Heavy-duty Pole Mount, Dahau PTZ Dome Camera Wall Mounts, and MNVR/MXVR Mobile Recording Devices
| Technical Specifications | |
| Material | Aluminum and SECC |
| Dimensions | 450.0 mm x 365.0 mm x 191.0 mm (17.72 in. x 14.37 in. x 7.52 in.) |
| Weight | 9.0 kg (19.84 lb) |
| Load Bearing Capacity | |
| Front | 10.0 kg (22.05 lb) |
| Side | 6.0 kg (13.23 lb) |
| Inside | 5.0 kg (11.02 lb) |
| Color | White |
| Operating Temperature | –40° C to 60° C (–40° F to 140° F) |
| Humidity | 0% to 90% RH |
| Environmental | |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Installation | Wall Mount or Pole Mount |
| Compatibility | • DH-PFA153 Heavy-duty Pole Mount • Dahau PTZ Dome Camera Wall Mounts • Dahua MNVR and MXVR Mobile Recording Devices |
