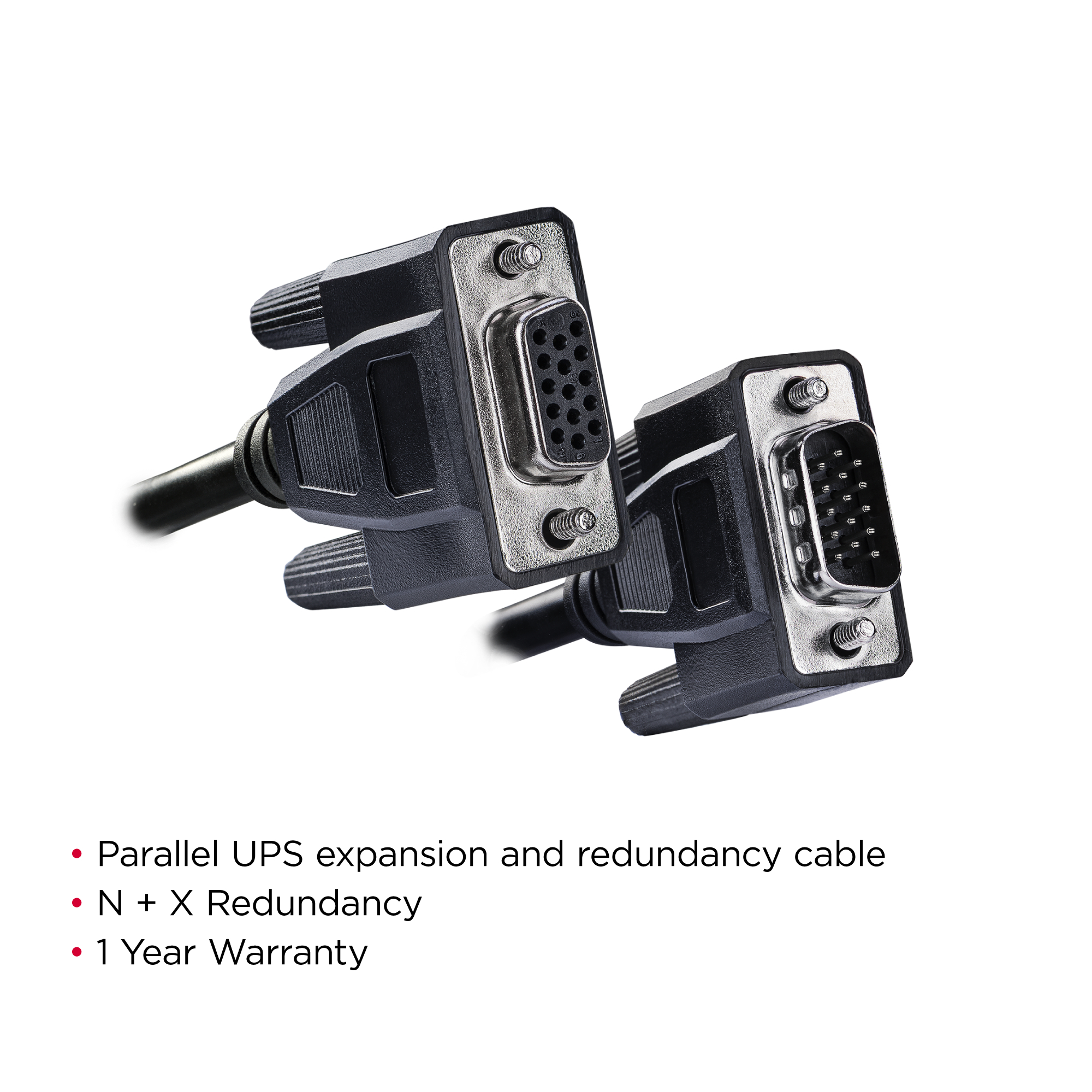

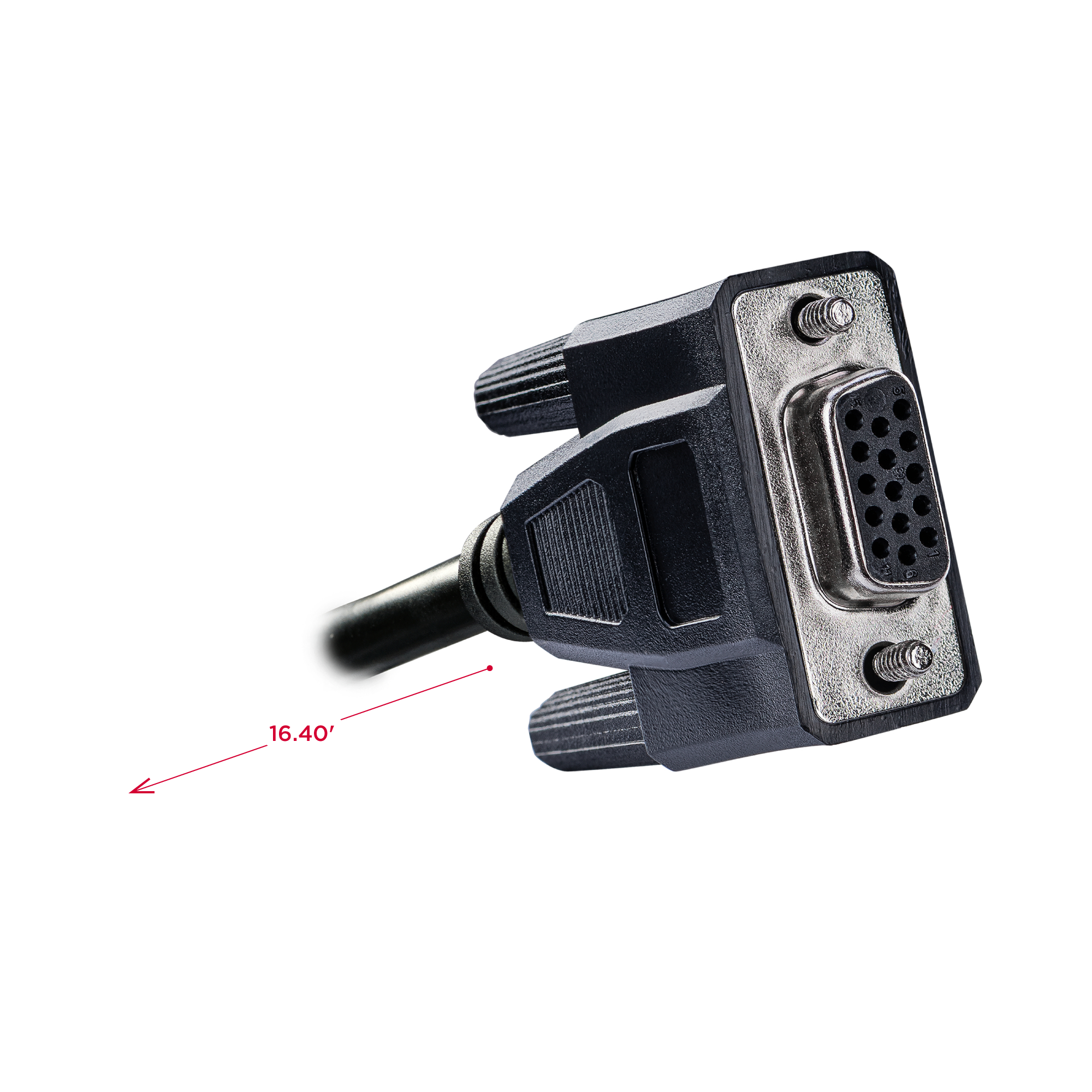

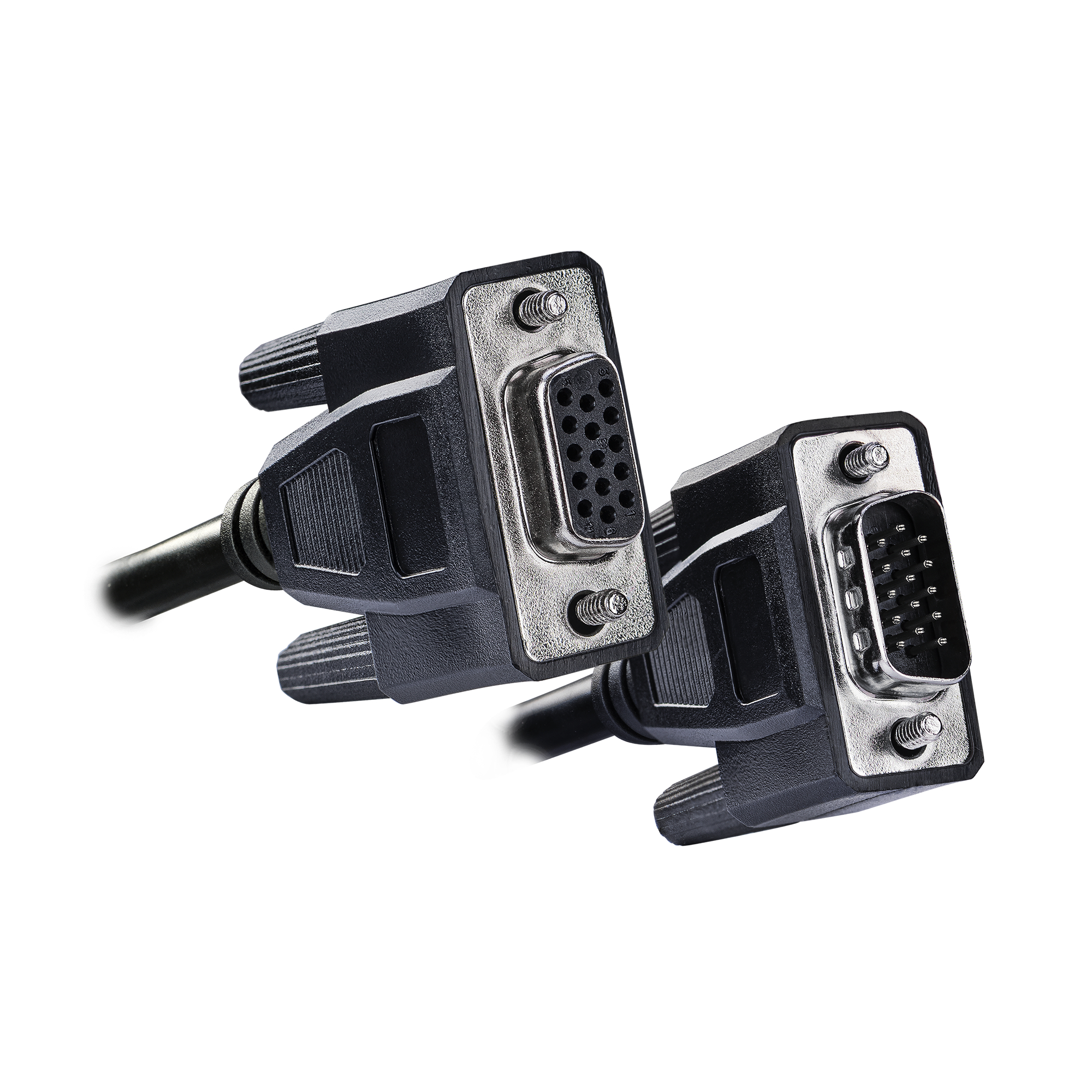

Cyberpower PARLCARD306 3-Phase Modular UPS Hardware Parallel Cables connect UPS systems for capacity or redundancy (N+N) and will keep your UPS systems in-sync. Includes a One-Year Limited Warranty. For Cyberpower Smart App Online 3-Phase Modular UPS systems SM020KAMFA, SM040KAMFA.
Features:
UPS Capacity Expansion
Using parallel technology, you can add additional UPS cabinets to increase by three times. 20 KVA units are expandable to 60KVA and 40KVA are expandable to 120KVA.
N+N Redundancy
Ensures uninterrupted operation if the entire system fails. N+1 redundancy guarantees system availability if one power module fails.
One-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within one year of your 3-Phase Modular UPS installation. See warranty for details.
| Physical | |
| Color | Black |
| Mounting Hardware | No |
Dimensions
| Physical Weight (kg) | 0.32 |
| Physical Weight (lb) | 0.7 |
Environmental
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Elevation Note | At ≤1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Temperature Note | Battery life is halved for every 10°C increase above 20°C |
| Storage Battery Temperature Note | Optimum battery storage between -15°C and 20°C |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | -4 – 158 °F (-20 – 70 °C) |
