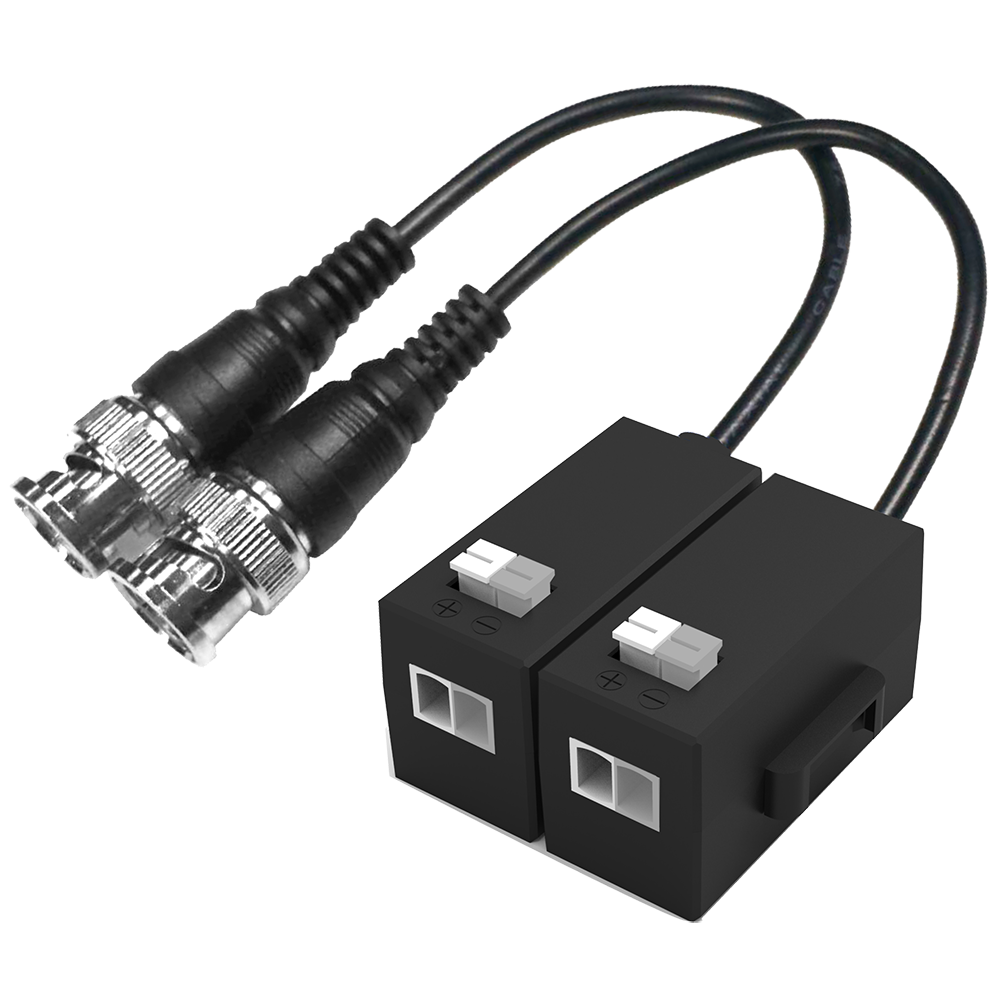

Dahua - PFM800-E - Passive HDCVI Balun
Part number:
PFM800-E
Price:
Passive HDCVI Balun
Features:
- One (1) Channel Balun
- Real-time Transmission over UTP CAT 5E/6 Cable
- External Power Supply not Required
| Technical Specifications | |
| Video | |
| Transmission Signal | One (1) Channe |
| Transmission Distance, maximum | HDCVI 720p: 400 m (1312.34 ft) 1080p: 250 m (820.21 ft) |
| Category Type | UTP CAT 5E/6 |
| Video Transmission Properties and Ports | |
| Coaxial Video Connector | BNC-M |
| Twisted-pair Video Connector | Push-terminal |
| Compatible Format | HDCVI, AHD, TVI, CVBS |
| Resolution | 720p, 1080p |
| Anti-interference | > 60 dB |
| Protection | |
| ESD | 1a contact discharge electricity level 3 1b air discharge electricity level 3 Per: IEC61000-4-2 |
| Coaxial Cable Connector | 2 KV (common-code) per IEC1000-4-5 |
| UTP Cable Connector | 2 KV (different-code), 4 KV (common-code), per IEC1000-4-5 |
| Impedance | |
| BNC Male | 75 Ω |
| UTP Cable | 100 Ω |
| Physical Properties | |
| Dimensions | 180.0 mm x 19.0 mm x 16.0 mm (7.09 in. x 0.75 in. x 0.63 in.) |
| Shell | ABS |
| Color | Black |
| Net Weight | 0.042 kg (0.09 lb) |
| Stability | |
| MTBF | > 10000 h |
| Environmental | |
| Operating Temperature | –10 °C to +55 °C (14 °F to 131 °F) |
| Storage Temperature | –20 °C to +70 °C (–4 °F to 158 °F) |
| Humidity | 0 to 95%, non-condensing |
