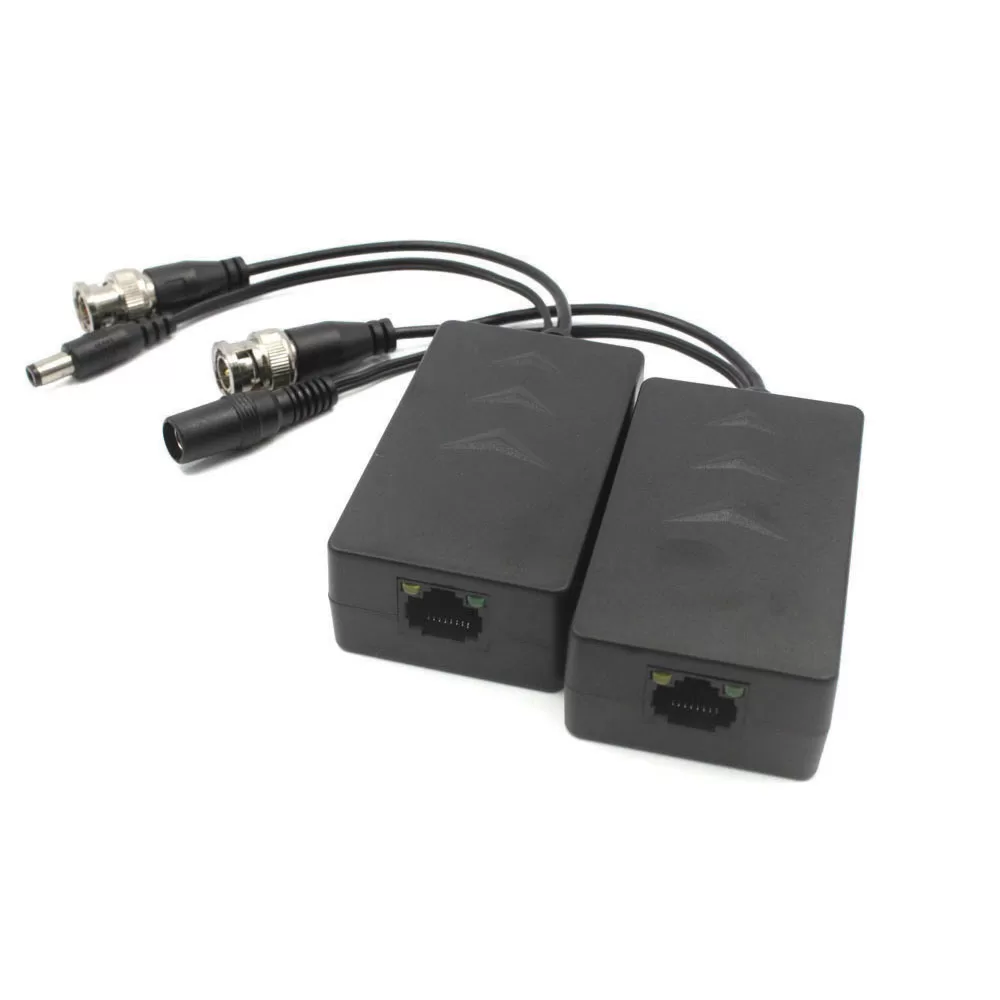

Dahua - PFM801 - Passive HDCVI Balun with Power
This product has been discontinued.
Part number:
PFM801
Price:
Passive HDCVI Balun with Power
Features:
- Input voltage 24 VDC to 36 VDC
- Provides 12 VDC, 8 W Power Supply to Remote Cameras
- Real-time Video Transmission without Delay or Interference.
- Transmission distance: 300 m (984 ft)
- Transmit one-channel HD Video and one channel DC Power over a UTP (CAT-5E or CAT-6) Cable
- Surge Protection and Anti-interference Protection
- RJ45 Standard Connection
| Model | PFM801 | ||
| Properties | |||
| Transmission Signal | 1 channel HDCVI | ||
| Transmission Distance | HDCVI: 720P, 400M(max); 1080P, 200M(max) | ||
| Power Supply | Input Voltage | Distance | Output Power |
| DC24 | 0-100M | DC12V 8W | |
| 100-200M | DC12V 6W | ||
| 200-300M | DC12V 3W | ||
| DC36 | 0-300M | DC12V 8W | |
| Category Type | UTP CAT5E/6 | ||
| Video Transmission Properties | |||
| Coaxial Video Connector | BNC-M | ||
| Connection Way | RJ45 | ||
| Compatible Format | HDCVI/TVI/AHD | ||
| Resolution | 720P/1080P | ||
| Anti-interference | >60db | ||
| Protection | |||
| ESD | 1a contact discharge electricity level 3 | ||
| 1b air discharge electricity level 3 | |||
| Per: IEC61000-4-2 | |||
| Coaxial Cable Connector | 2KV(common-code) | ||
| Per: IEC61000-4-5 | |||
| UTP Cable Connector | 2KV(different-code), 4KV(common-code) | ||
| Per: IEC61000-4-5 | |||
| Impedance | |||
| BNC Male | 75 ohms | ||
| UTP Cable | 100 ohms | ||
| Physical Properties | |||
| Dimension(L*W*H) | 72.6mm*42.5mm*24.5mm | ||
| Shell | ABS | ||
| Color | Black | ||
| N.W. | 66.4g/57.4g | ||
| Stability | |||
| MTBF | >10000H | ||
| Environmental | |||
| Operating Temperature | -10~55℃ | ||
| Storage Temperature | -20~70℃ | ||
| Humidity | 0~95%(non-condensing) | ||
| Certification | |||
| Certification | CE, FCC | ||
