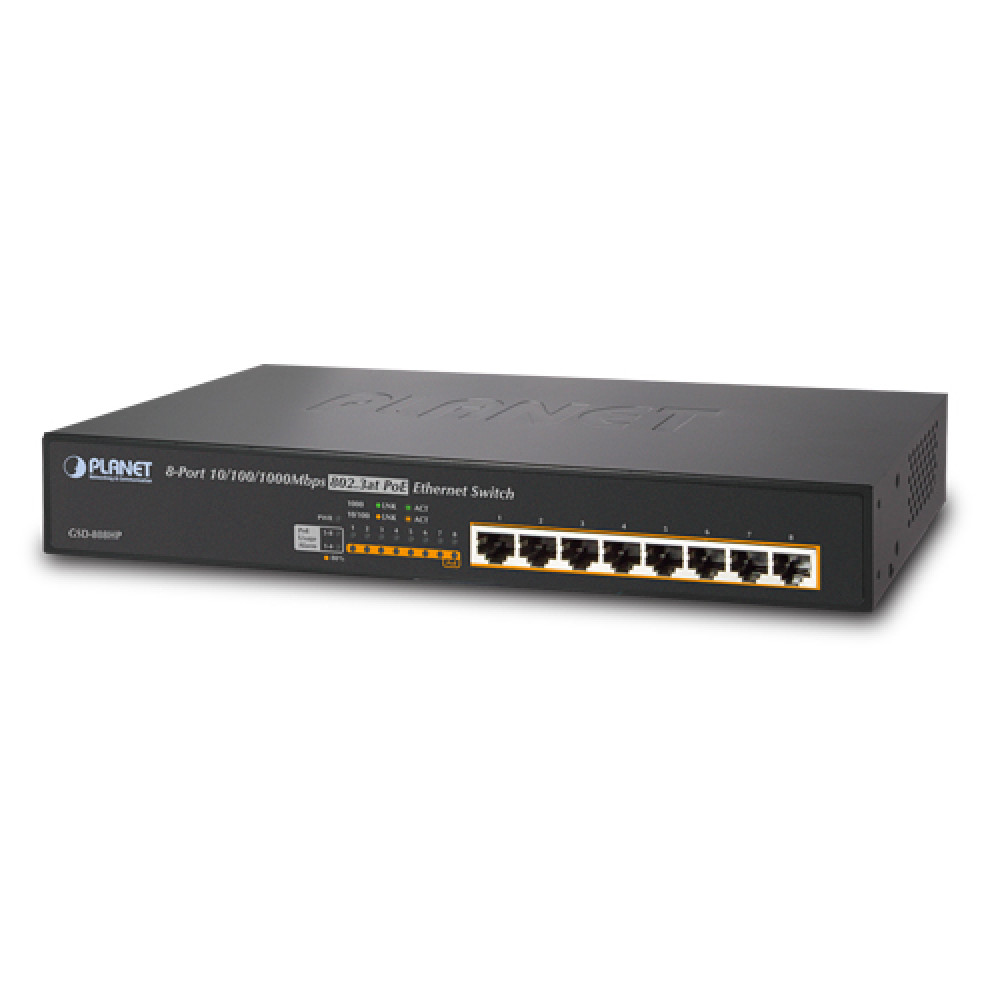

Planet - GSD-808HP - 8-Port 10/100/1000Mbps 802.3at PoE Desktop Switch
Part number:
GSD-808HP
Price:
8-Port 10/100/1000Mbps 802.3at PoE Desktop Switch
Switching
- Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 8K absolute MAC addresses
- 9K Jumbo Frame supports all speeds (10/100/1000Mbps)
- Automatic address learning and address aging
- Supports Pre-Energy-Efficient Ethernet (EEE) function (IEEE 802.3az)
Hardware:
- 12-inch desktop size, 1U height
- LED indicators for PoE ready, PoE activity and PoE Usage Alarm
- Fanless design
- Ethernet Link Energy-saving technology
- Link down power saving Intelligent scales power based on cable length
| Model | GSD-808HP | |
| Hardware Specification | ||
| Hardware Version | 3 | |
| Network Connector | 8-port RJ-45 for 10/100/1000Base-TX | |
| PoE Inject Port | 8-port with 802.3af / 802.3at PoE injector function | |
| LED Display | System: Power (Green) PoE Usage Alarm: 1-4 (Orange) 5-8 (Orange) Per port : PoE-in-use (Orange) 1000 LNK/ACT (Green) 10/100 LNK/ACT (Orange) | |
| Switch Architecture | Store and Forward switch architecture | |
| MAC Address | 8K MAC address table with auto learning function | |
| Switch Fabric | 16Gbps | |
| Switch Throughput | 11.9Mpps@64Bytes | |
| Jumbo Packet Size | 9K Bytes | |
| Flow Control | Back pressure for half-duplex. IEEE 802.3x pause frame for full-duplex | |
| Power Requirements | AC 100~240V, 50/60Hz, 2A max. | |
| Power Consumption | Max. 150 watts / 511 BTU | |
| Dimensions (W x D x H) | 280 x 180 x 44 mm | |
| Weight | 1.67kg | |
| Power over Ethernet | ||
| PoE Standard | IEEE 802.3af Power over Ethernet / PSE IEEE 802.3at Enhancement Power over Ethernet / PSE | |
| PoE Power Supply Type | End-Span | |
| PoE Power Output | Per port 52V DC, 275mA. max. 15.4 watts (IEEE 802.3af) Per port 52V DC, 535mA. max. 30 watts (IEEE 802.3at) | |
| Power Pin Assignment | 1/2(+), 3/6(-) | |
| PoE Power Budget | 130 Watts | |
| Max. Number of Class 2 PD | 8 | |
| Max. Number of Class 3 PD | 8 | |
| Max. Number of Class 4 PD | 4 | |
| Environment | ||
| Operating Environment | 0 ~ 50 degrees C | |
| Storage Environment | -40 ~ 70 degrees C | |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing | |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing | |
| Standard Conformance | ||
| Standard Compliance | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3af IEEE 802.3at IEEE 802.3az | Ethernet Fast Ethernet Flow Control Power over Ethernet Enhancement Power over Ethernet Pre-Energy-Efficient Ethernet |
| EMI Safety | FCC Class B, CE | |
