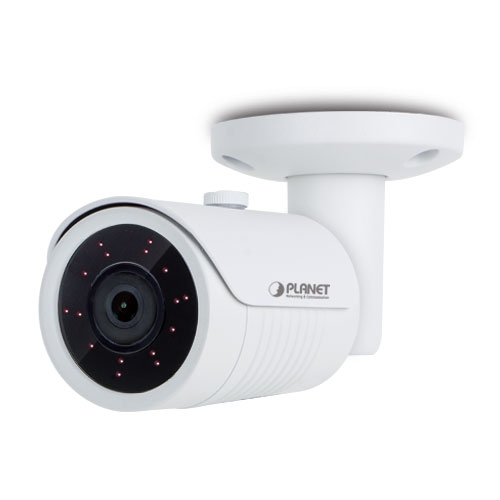

Planet - ICA-3280 - H.265 1080p Smart IR Bullet IP Camera
- Excellently Efficient Surveillance Video
- High Efficiency Video Compression
- Exceptional Image Quality
- Advanced Media Management
- Flexible Installation and Power Functionality
- Scheduled Power Rebooting
- Water-resistant and Dust-proof Protection
- High Scalability for Various Industrial IP Surveillance Solutions
Part number:
ICA-3280
Price:
Camera
- 1/2.9" Full HD CMOS Sensor
- 3.6mm fixed with 3MP lens
- 0.01 lux minimum illumination at F1.2
- Built-in smart IR illuminators, effective up to 25 meters
- Removable IR-cut filter for Day & Night function
Video and Audio
- Simultaneous H.264(+)/H.265/MJPEG dual-stream video encoding
- Simultaneous multi-stream support
- H.264/H.265/MJPEG baseline profile, main profile or high profile options
- Max. resolution of 2304 x 1296 at 20fps
- WDR (50dB) enhancement function strengthens visibility under extremely bright or dark environments
- 3DNR to improve picture quality at low lux
- One-way audio support
- Image adjustment options
- Day and night mode
- Image Adjustment
- Exposure Settings
- BackLight Settings
- Day and night switch
- White Balance
- Video Adjustment
- Image Enhancement
- Defog Model
- OSD Settings
- Motion detection, video tampering
- 3 configurable regions of privacy mask to protect personal privacy
- ROI (Region of Interest)
Power over Ethernet
- Compatible with IEEE 802.3af Power over Ethernet PD for flexible deployment
Network Configuration and Management
- IPv4 DHCP Client and IPv4 Static IP Address management
- PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP Encryption and IPEYE available options
- ONVIF compliant for interoperability
- SNTP Network Time Protocol/synchronize with computing time
- Schedule power rebooting
- System log
- User management options for various authorities:
- Admin
- Operator
- Guest
- System maintenance
- Firmware upload/download via HTTP
- Configuration upload/download through web interface
- Hardware-based reset button for resetting to factory default
- Easy configuration and management via Windows-based software or web interface
- PLANET Search Tools utility and Professional Video/Central Management Software
Case and Installation
- IP67-rated metal housing with cable management bracket for rigorous environment
- Waterproof and dustproof designs
- -20 to 60 degrees C operating temperature
- Plug and Play installation
| Camera | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/2.9" Full HD CMOS Sensor | |||||||||

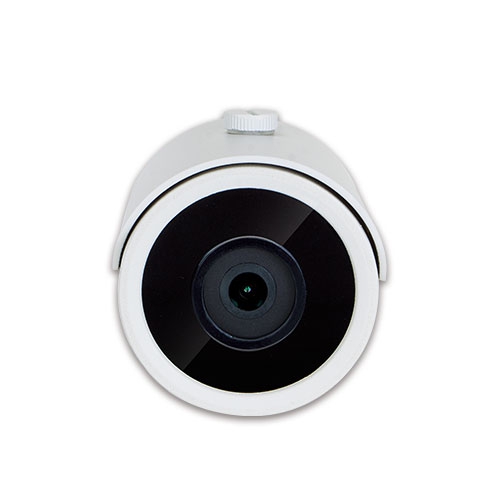

| Lens | Focus Length: 3.6mm Focus Control: Fixed Lens Type: Fixed Pixels: 3MP Angle of view: - Horizontal: 75 degrees - Vertical: 58 degrees |
|||||||||
| Min. Illumination | 0.01 lux (color) @ F1.2 2lux (B/W) @ IR on |
|||||||||
| IR Illuminations | Built-in smart IR illuminators, effective up to 25 meters *The IR distance is based on the environment |
|||||||||
| Effective Pixels (H x V) | 1920 x 1080 | |||||||||
| Power over Ethernet | ||||||||||
| PoE Standard | IEEE 802.3af PoE PD | |||||||||
| Image | ||||||||||
| Video Compression | H.264(+)/H.265/JPEG/MJPEG | |||||||||
| Video Resolution |
|
|||||||||
| Frame Rate | Up to 15~30 fps for all resolutions | |||||||||
| Bitrate | 32~16384kbps | |||||||||
| Shutter Time | Auto: PAL 1/25-1/10000 sec; NTSC 1/25-1/10000 sec | |||||||||
| Image Setting | Day and night mode Image Adjustment Exposure Settings BackLight Settings Day and night switch White Balance Video Adjustment Image Enhancement Defog Model Distortion OSD Settings (Text, time and date overlay and overlay image on video) Motion detection, video tampering 3 configurable regions of privacy mask to protect personal privacy |
|||||||||
| Streaming | Streaming over UDP, TCP, HTTP, or HTTPS Controllable frame rate M-JPEG streaming over HTTP (server push) Constant and variable bit rate ROI (Region of Interest) |
|||||||||
| Audio | ||||||||||
| Audio Streaming | One-way audio | |||||||||
| Audio Compression | G.711A/G.711U | |||||||||
| Audio Input | External microphone input | |||||||||
| Networking & Configuration | ||||||||||
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3af Power over Ethernet |
|||||||||
| Protocol | IPv4 DHCP Client and IPv4 Static IP Address management PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP Encryption and IPEYE |
|||||||||
| Security | User Management options for various authority - Admin - Operator - Guest |
|||||||||
| Users | On-line monitoring of 16 clients at the same time | |||||||||
| Web Brower | IE8~11, Google Chrome, Firefox, Mac Safari | |||||||||
| APP | YES (Android, IOS with P2P QR code) | |||||||||
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Nederlands, Czech, Vietnamese | |||||||||
| System Integration | ||||||||||
| Application Programming Interface | ONVIF compliant | |||||||||
| Alarm Triggering | Motion detection | |||||||||
| Alarm Events | SMTP, FTP, Cloud (Google, Dropbox) | |||||||||
| Hardware Specification | ||||||||||
| Power Requirements | 12V DC, 0.9A IEEE 802.3af |
|||||||||
| Power Consumption | 8W (IR on) | |||||||||
| Dimensions (W x D x H) | 157 x 66 x 70 mm | |||||||||
| Weight | 650g | |||||||||
| Reset Button | YES | |||||||||
| LED | 14μ x 20pcs | |||||||||

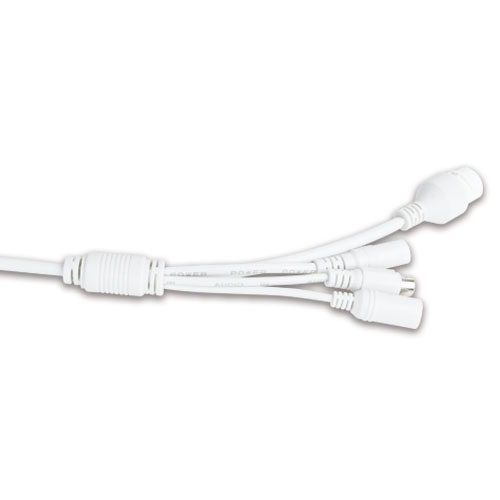

| Connector | 10/100Mbps Ethernet, waterproof/dustproof RJ45 connector DC power jack RCA audio in (white) |
|||||||||
| Enclosure | IP67 metal case | |||||||||
| Standards Conformance | ||||||||||
| Regulatory Compliance | FCC Part 15 Class B, CE | |||||||||
| Environment | ||||||||||
| Operating | Temperature: -20 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
|||||||||
| Storage | Temperature: -20 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
|||||||||
