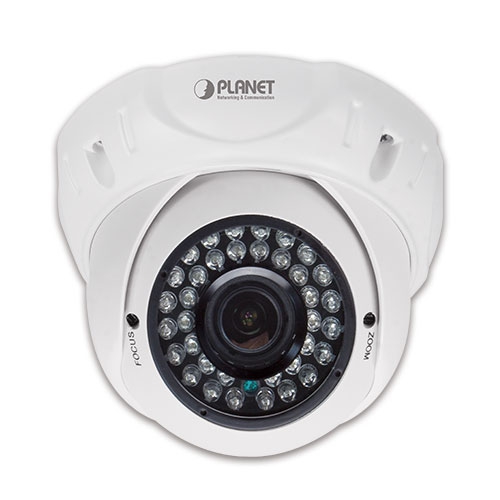

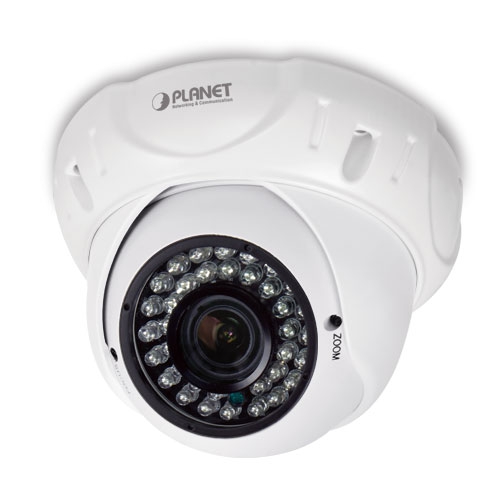

Planet - ICA-4460V - H.265 4MP PoE Dome IR IP Camera with Vari-focal Lens
- Compact and Cost-effective 4MP Outdoor Surveillance
- High Efficiency Video Compression
- Day & Night Surveillance
- Exceptional Image Quality
- Water Resistance and Dust-proof Protection
- Advanced Media Management
- Flexible Installation and Power Functionality
Part number:
ICA-4460V
Price:
Camera
- 1/3" progressive scan CMOS sensor
- 2.8~12 mm vari-focal, fixed-iris lens
- 0.01 lux minimum illumination at F1.2
- Maximum resolution 2592 x 1520
- 36 built-in powerful IR illuminators, effective up to 20~40 meters
- Removable IR-cut filter for Day & Night function
Video and Audio
- Simultaneous H.264 and H.265 video compression
- Simultaneous multi-stream support
- Max. resolution of 4 mega-pixel (2592 x 1520 pixel)
- DNR to improve picture quality at low lux
- WDR enhancement function strengthens visibility under extremely bright or dark environments
- Two-way audio support with enhanced audio quality
Network and Configuration
- Compliant with IEEE 802.3af/at PoE interface for flexible deployment
- RTSP (Real Time Streaming Protocol) protocols selectable
- FTP uploading supports more alternatives in surveillance network
- PLANET DDNS and Easy DDNS support
Easy Installation and Management
- ONVIF compliant for interoperability
- IP66-rated housing and waterproof RJ45 connector for rigorous environment
- Intelligent motion detection alarm
- Easy configuration and management via Windows-based utility or web interface
| Camera | |
|---|---|
| Image device | 1/3" 4 mega-pixel progressive scan CMOS sensor |
| Lens | Vari-focal 2.8~12mm, F1.2 Angle of view: Horizontal: 27~90 degrees Vertical: 27~90 degrees |
| Min. Illumination | 0.01 lux (color) @ F1.2 0 lux (B/W) @ IR on |
| IR Illuminations | IR LED x 36, 850nm Built-in IR illuminators, effective up to 20~40 meters* *The IR distance is based on the environment. |
| Effective Pixels | 2592 x 1520 pixels |
| Image | |
| Video Compression | H.264/H.265 |
| Video Resolution | 2592 x 1520, 2304 x 1296, 1080p, 1280 x 1024, 960p, 720p, 704 x 576, 640 x 480, 352 x 288, 320 x 240, 176 x 144 |
| Frame Rate | Up to 30fps* for all resolutions *The fps is based on the environment. |
| Bitrate | 1024~8000kbps |
| Shutter Time | 1/25~1/10000 sec |
| Image Setting | 2D noise reduction WDR Brightness, saturation, contrast Mirror/Rotate Privacy mask (4 regions) Text, time and date overlay |
| Streaming | Simultaneous multi-profile streaming Streaming over HTTP or RTSP Controllable frame rate and bandwidth Constant and variable bit rate |
| Audio | |
| Audio Streaming | Two-way audio |
| Audio Compression | G.711 (A-law and µ-law) |
| Audio Input | Cable with RCA jack |
| Audio Output | Cable with RCA jack |
| Network and Configuration | |
| Standard | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3af/at Power over Ethernet |
| Protocol | IPv4, TCP/IP, HTTP, FTP, DHCP, DNS, PLANET DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP |
| Security | Password protection |
| Users | 3 clients on-line monitoring at the same time |
| System Integration | |
| Application Programming Interface | SDK for software integration ONVIF compliant |
| Alarm Triggering | Motion detection |
| Alarm Events | Event snapshot upload via FTP Notification via email, and HTTP |
| General | |
| Power Requirements | 12V DC, 1A IEEE 802.3af/at Class 3 |
| Power Consumption | 9W (IR on) |
| Weight | 640g |
| Dimensions (Φ x L) | 139.5 x 97 mm |
| Emission | CE, FCC |
| Housing | IP66-rated |

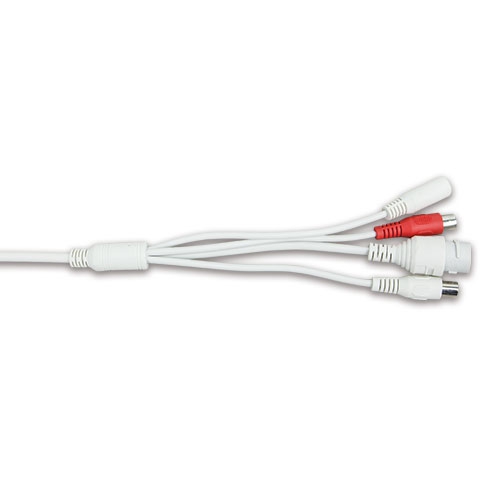

| Connectors | 10/100Mbps Ethernet, waterproof RJ45 connector DC power jack RCA audio in (white) and RCA audio out (red) |
| Environments | |
| Cold Boot Temperature | -10 ~ 50 degrees C |
| Operating Temperature | -15 ~ 55 degrees C |
| Operating Humidity | 10 ~ 90% (non-condensing) |
