Planet - ICA-E6260 - 2 Mega-pixel PoE Plus Speed Dome IP Camera with Extended Support
- Robust PTZ IP Camera for Demanding Surveillance
- Professional, High-resolution Network Camera
- Day & Night Functionality
- Exceptional Image Quality
- Effective Surveillance for Wide Area Coverage
- High-level Protection
- Outdoor Installation
- Extended Support with Specific Software
- Flexible Installation and Power Functionality
Part number:
ICA-E6260
Price:
Camera
- 1/2.8" 2 mega-pixel progressive scan CMOS sensor
- Auto-focal 4.5~148.5 mm, auto-iris lens
- 0.05 lux minimum illumination at F1.6
- Maximum resolution 1920 x 1080
- 33 x 10 zooming (33x optical, 10x digital) adjustment
- Endless 360-degree pan
- Auto white balance and auto electronic shutter time (1/5 ~ 1/32k sec)
- Removable IR-cut filter for Day & Night function
Video/Audio
- H.264/MJPEG video compression
- Simultaneous multi-stream support
- H.264 high profile, main profile and baseline
- Max. resolution of 1080p at 60fps
- Automatic object detection and tracking
- 3DNR to improve picture quality at low lux
- Digital image stabilizer supported
- True WDR enhancement function strengthens visibility under extremely bright or dark environments
- Two-way audio support with enhanced audio quality
Network and Configuration
- Compliant with IEEE 802.3at high PoE interface for flexible deployment
- Supports both IPv6 and IPv4 protocols
- RTSP, UPnP, Bonjour and HTTPS protocols selectable
Easy Installation & Management
- ONVIF compliant for interoperability
- IK09 and IP67 rating
- Micro SD card slot for video recording
- Digital Input/Output for integration with sensors and alarms
- Fan and heater with fully automatic intelligent control
| Camera | |
|---|---|
| Image Device | 1/2.8" 2 mega-pixel progressive scan CMOS Sensor |
| Lens | Auto-focal 4.5~148.5 mm/F1.6~5.0, auto-iris Mechanical IR-cut filter Angle of view: Horizontal: 3~69.3 degrees |
| Min. Illuminator | Color: 0.1 lux @ F1.6 (30 IRE, 2400°K) B/W: 0.05 lux (30 IRE, 2400°K) |
| Effective Pixels | 1920 x 1080 pixels |
| Horizontal Resolution | 1800 TVL |
| Electronic Shutter | 1/5~1/32000 sec. |
| S/N Ratio | 56dB |
| Pan / Tilt / Zoom | |
| Optical Zoom | 33x |
| Tele to Wide Speed | 2.7 sec. |
| Pan Degree | 360 degrees (endless) |
| Tilt Degree | -20 ~ 200 degrees |
| Manual Panning Speed | 3.2 ~ 72 degrees/sec. |
| Manual Tilting Speed | 1.6 ~ 36 degrees/sec. |
| Preset Points | 256 |
| Preset Tours | 10 |
| Preset Panning Accuracy | 0.265 degrees |
| Preset Tilting Accuracy | 0.149 degrees |
| Preset Panning Speed | 0.1~300 degrees/sec. |
| Preset Tilting Speed | 0.1~150 degrees/sec. |
| Resume after Power loss | Yes |
| Auto scan | Yes |
| Protocol | Sony VISCA, Pelco D, Pelco P |
| Absolute Position | Yes |
| PTZ Auto Tracking | Yes |
| Image | |
| Video Encoder | H.264/MJPEG |
| Video Profile | H.264: 1920 x 1080, 1280 x 720, 640 x 480, 320 x 240 MJPEG: 1920 x 1080, 1280 x 720, 640 x 480, 320 x 240 |
| Frame Rate | 1920 x 1080 up to 60fps 1280 x 720 up to 60fps 640 x 480 up to 30fps 320 x 240 up to 30fps |
| Image Setting | Video flipping, video mirroring, brightness, contrast, sharpness, automatic gain control, 2D+3D digital noise reduction, flickerless, true WDR (145dB), exposure, white balance (automatic, manual or hold), OSD, privacy mask (20 regions), digital image stabilizer |
| Streaming | Simultaneous triple streams based on three configurations Controllable frame rate and bandwidth Constant and variable bit rate |
| Bit Rate | 128Kbps - 12Mbps (per stream) |
| Text Overlay | User defined text on video |
| Audio | |
| Audio Streaming | Two-way audio |
| Compression | PCM, G.711 (A-law and µ-law) |
| Audio Input/Audio-Out | Cable with 3.5mm phone jack |
| Network and Configuration | |
| Network Standard | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX |
| Protocol and Service | TCP, UDP, HTTP, HTTPs, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, PLANET DDNS, PLANET Easy DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
| Security | Password protection, IP address filtering, HTTPS encryption, anonymous login, 802.1X network access control |
| Users | 10 simultaneous unicast users |
| System Integration | |
| Application Programming Interface | Software Development Kit (SDK) available; ONVIF compliant |
| Alarm Triggering | Video motion detection (10 regions), sound detection and external input |
| Alarm Events | Notify control center, go to PTZ preset point or preset tour, change camera settings, command other devices, e-mail notification with snapshots, save video or snapshot to local storage, upload video and snapshot to FTP server, activate external device through digital output |
| Built-in Analytics | Tamper, shock detection |
| General | |
| Power Supply | High PoE (IEEE 802.3at) AC 24V ± 10% |
| Power Consumption | PoE: 29.4W (with heater) AC 24V: 68W (with heater) |
| Housing | IK09 and IP67 rating |
| Operating Temperature | -40 ~ 55 degrees C (within 30mins) |
| Operating Humidity | 10 ~ 85% (non-condensing) |
| Weight | 2500g |
| Dimensions (Φ x H) | 200 x 276 mm |
| Emission | CE, FCC |

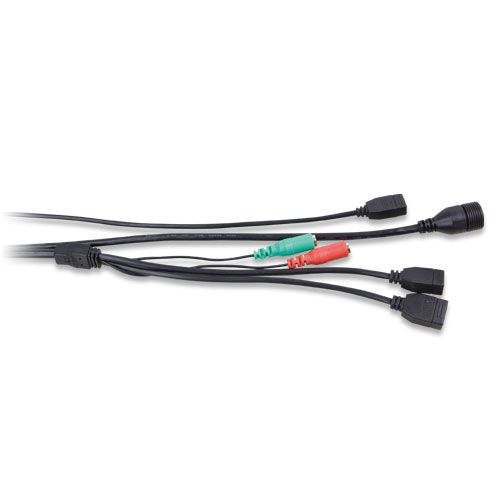

| Connectors | 10/100Mbps Ethernet, RJ45 Micro SDHC card slot (max. 32GB, class 10) Terminal block for 4 alarm input and 2 output External mic. input Audio out AC power jack |
