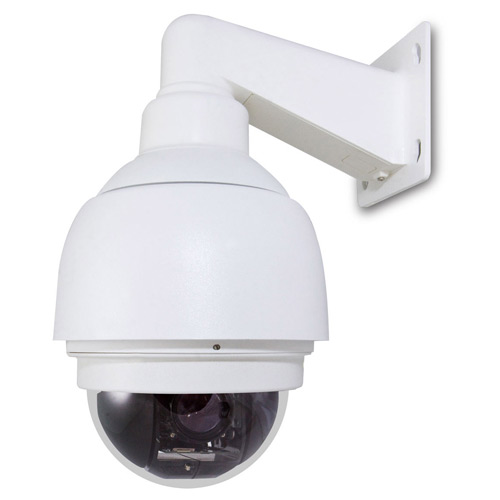

Planet - ICA-HM620-220 - 2 Mega-pixel PoE Plus Speed Dome Internet Camera 220V
- Enhanced Security from Wide Area Surveillance
- Full Surveillance during Day & Night
- Exceptional Image Quality
- Advanced Surveillance Management
- Flexible Installation and Power Functionality
Part number:
ICA-HM620-220
Price:
Camera
- 1/2.8" Sony Progressive Scan CMOS sensor
- 4.7~84.6mm vari-focal, auto-iris lens
- 0.04 lux minimum illumination at F1.6
- Maximum resolution 1920 x 1080
- 20 x 8 zooming (20X optical, 8X digital) adjustment
- 360 degrees continuous pan and tilt (-10 ~ 190 degrees)
- Preset speed at 5~400 degrees/sec, and manual speed 0.5 ~ 90 degrees/sec
- Auto White Balance and Auto Electronic Shutter Time (1/30 ~ 1/10k sec)
- Automatic gain control (AGC) for image-intensified
- Removable IR-cut Filter for Day & Night function
Video / Audio
- H.264 and M-JPEG video compression simultaneously
- Simultaneous multi-stream support
- Max. resolution 1080p at 30 fps, 720p at 60fps
- 3DNR to improve picture quality at low lux
- WDR Enhancement to enhance visibility under extremely bright or dark environments
- Two-way audio support with enhanced audio quality
Network and Configuration
- Compliant with IEEE 802.3at PoE Plus interface for flexible deployment
- Auto MDI/MDI-X supported
- Supports both IPv6 and IPv4
- RTSP / UPnP / HTTPS protocols selectable
- DDNS and FTP uploading supports more alternatives in surveillance network
Easy Installation & Management
- ONVIF compliant
- Cam Viewer 3 central management software supported
- Motion Detection feature can monitor any suspicious movement in a specified area
- 256 presets, tour is based on presets, in which speed and park time of presets can be set
- Cruise line: 8 group programmable lines, each cruise with 32 presets
- Digital Input / Output for integration with sensors and alarms
- IP66 outdoor protection with heater and fan for operation under rigorous environmental conditions
- Fan and heater with fully automatic intelligent control
| Camera | |
|---|---|
| Image device | 1/2.8" Sony Progressive Scan CMOS Sensor |
| Lens | f = 4.7~94mm, F1.6 Auto/Manual-iris/Focus Mechanical IR-cut Filter Angle of view (horizontal x vertical): H: 5.2 ~ 55.2 degrees V: 2.4 ~ 42.1 degrees |
| Min Illumination | 0.04 Lux (B/W) 0.3 Lux (color) |
| Effective Pixels | 1920 x 1080 pixels |
| Pan / Tilt / Zoom | |
| Optical Zoom | 20x |
| Digital Zoom | 1~8x variable |
| Pan Degree | 0 ~ 360 degrees continuous panning |
| Tilt Degree | -10 ~ 190 degrees |
| Manual Speed | 0.5 ~ 90 degrees/sec |
| Preset Point | 256 |
| Preset Accuracy | 0.225 degrees |
| Preset Speed | 5~400 degrees/sec |
| Sequence | 8 |
| Auto Pan | 4 |
| Camera Cruise | 8 |
| Privacy Mask | 16 |
| Proportional Pan & Tilt | On / Off (Pan and tilt speed proportional to zoom ratio) |
| Resume after Power loss | Yes |
| Zone Title | 16 |
| Home Function | Preset, Sequence, Auto Pan, Cruise |
| Auto Flip | Digital / Mechanical / Off |
| Digital Slow Shutter | On / Off |
| Image | |
| Video Compression | H.264 / M-JPEG |
| Video Resolution | 1080p / 720p / VGA / D1 |
| Frame Rate | 30/25 fps @ 1080p 60/50 fps @ 720p |
| Image Setting | Auto Electronic Shutter: 1/30 ~ 1/10k sec Auto White Balance: Auto / Indoor / Outdoor / ATW AGC: Auto / Manual 3D Digital Noise reduction WDR Color, sharpness Mirror / Flip Privacy Masks Text, time and date overlay |
| Streaming | Simultaneously multi-profile streaming Streaming over UDP, TCP, or HTTP Controllable frame rate and bandwidth Constant and variable bit rate (M-JPEG / H.264) |
| Audio | |
| Audio Streaming | Two-way audio |
| Audio Compression | G.711 64kbps, G.726 32kbps, ADPCM, AAC |
| Microphone | External microphone input |
| Audio Output | Adjustable audio output gain |
| Network and Configuration | |
| Standard | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3at PoE Plus |
| Protocol | IPv4, IPv6, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, Samba |
| Security | Password protection, IP address filtering, HTTPS encrypted data transmission, user access log |
| Users | 20 clients on-line monitoring at the same time |
| System Integration | |
| Application Programming Interface | Open API for software integration ONVIF Compliant |
| Alarm Triggers | Intelligent video motion detection and external input |
| Alarm Events | File upload via FTP, Samba to NAS, SD card or email Notification via email, HTTP, and TCP External output activation Audio alert output Pre- and post-alarm buffering |
| General | |
| Power Consumption | 65 W (with heater) |
| Power Requirements | AC 24V ± 10% (system & heater) IEEE 802.3at (system) |
| Operating Temperature | -45 ~ 55 degrees C (-49 ~ 131 degrees F) |
| Operating Humidity | 10 ~ 90% (non-condensing) |
| Weight (includes LENS) | 2.32 kg |
| Dimension (Φ x H) | 191.97 x 282.11 mm |
| Protection Class | IP66 outdoor classification, built-in fan and heater |
| Emission | CE, FCC |

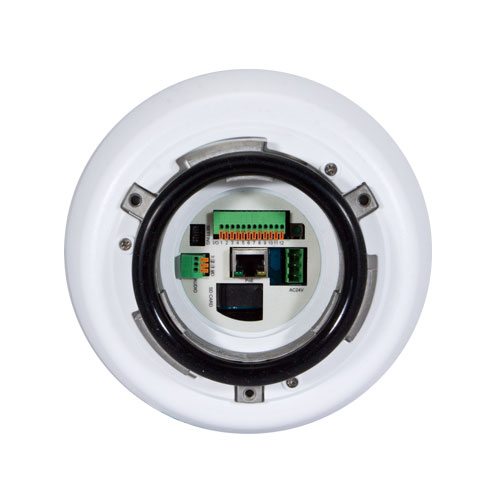

| Connectors | 10/100Mbps Ethernet, RJ45 DC power jack Terminal block for 4 alarm input and 2 output External MIC input Audio out Micro SD/SDHC card (max. 32GB, Class 10) Factory default reset |
