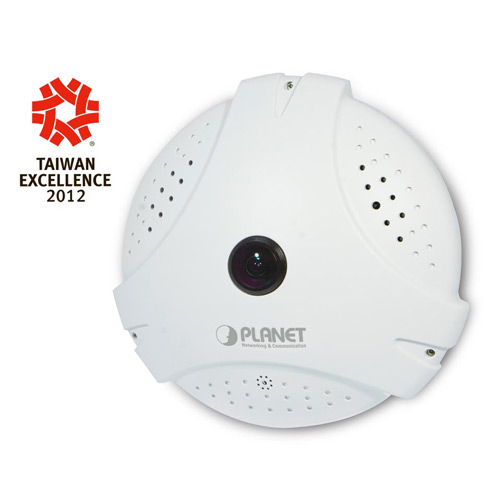

Planet - ICA-HM830W - 2 Mega-pixel Wireless Fisheye IP Camera
- Compact Wireless Panoramic Camera for Exceptional Surveillance
- Complete Monitoring with 360º Surround View
- Day & Night Functionality
- Advanced Event Management
- High Quality Streaming via 11n Wireless Connectivity
Part number:
ICA-HM830W
Price:
Camera
- Fish-Eye Lens to bring 360° / 180° panoramic wide angle view
- 1/3" 2 mega-pixel progressive scan CMOS sensor
- Unique Fish-Eye hardware correction technology
- 3.0 lux minimum illumination at F2.0
- 9 different video modes including digital PTZ function
- Maximum resolution at 1600 x 1200
- Removable IR-cut Filter for Day & Night function
Video / Audio
- H.264 and M-JPEG video compression simultaneously
- Simultaneous multi-stream support
- Up to 15fps for 1600 x 1200 resolutions
- 2-way audio support with enhanced audio quality
Network and Configuration
- IEEE 802.11b/g/n wireless LAN with WEP and WPA encryptions
- Auto MDI/MDI-X supported
- UPnP® support for network setup and configuration
- RTSP / UPnP / 3GPP / HTTPS protocols selectable
Easy Installation & Management
- Advanced e-PTZ, including preset point
- 10 motion detection areas / E-mail and FTP alert
- Micro SD card local video recording supported
- Digital Input/Output for integration with sensors and alarms
- Cam Viewer 3 Central Management Software supported
| Camera | |
|---|---|
| Image Device | 1/3" 2 mega-pixel progressive scan CMOS image sensor |
| Lens | FOV=185°(D/H/V), F=2.0, f=1.25mm Mechanical IR-cut Filter Angle of view : 360 degrees view angle |
| Min Illumination | 3.0 lux @ F2.0 |
| Effective Pixels | 1600 x 1200 pixels (4:3) |
| Video | |
| Video Encoder | H.264 / M-JPEG |
| Video Resolution | UXGA mode H.264: 1600 x 1200 / 800 x 600 / 640 x 480 M-JPEG: 800 x 600 / 640 x 480 720P mode H.264: 1280 x 720 / 800 x 450 / 720 x 405 / 640 x 360 M-JPEG: 1280 x 720 / 800 x 450 / 720 x 405 / 640 x 36 |
| Frame Rate | Up to 15fps for UXGA resolutions |
| Image Setting | Brightness, Hue, Saturation, Contrast, Sharpness, Exposure, White Balance Control, Text, Time and Date Overlay |
| Streaming | Streaming over UDP, TCP, or HTTP M-JPEG streaming over HTTP (server push) Controllable frame rate and bandwidth Constant and variable bit rate (M-JPEG / H.264) |
| Rate Control | CBR (Constant Bit Rate) VBR (Variable Bit Rate) |
| UI Layout | Quad view (4R) 360° source image (1O) 360° table view (1O table) 180° double broad view (2P) 180° double table broad view (2P table) 360° source view with 3 PTZ (1O3R) 360° broad view with 2 PTZ (1O2R) 180° source view with 3 PTZ (1P3R) 180° broad view with 2 PTZ (1P2R) |
| Audio | |
| Audio Streaming | 2-way audio |
| Audio Compression | RTSP: G.711 64kbps |
| Microphone | Built-in microphone |
| Speaker | Built-in Speaker |
| Network and Configuration | |
| Network Standard | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.11b/g/n |
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, UDP, SMTP, FTP, DHCP, DDNS, NTP, DNS, ARP, RTSP, RTP, Bonjour, UPnP, Samba |
| Antenna Connector | 1x2db dipole antenna |
| Frequency | 2.4GHz |
| RF Transmission Power | OFDM: 13dBm CCK: 17dBm |
| Output Power | 11n: 12dBm (default) +/- 1dBm 11g: 14dBm (default) +/- 1dBm 11b: 17dBm (default) +/- 1dBm |
| Data Rate | 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: up to 150Mbps |
| Security | Password Protection, Https Encryption, User Accesslog |
| Users | Depending on streaming data rate used |
| System Integration | |
| Application Programming Interface | Open API for software integration |
| Alarm Triggers | Intelligent video motion detection |
| Alarm Events | File upload via FTP, e-mail or Micro SD card Notification via e-mail |
| Environment | |
| Power Requirements | 12V DC, 2A |
| Power Consumption | 5W (12VDC) |
| Operating Temperature | 0 ~ 50 degrees C |
| Operating Humidity | 20 ~ 80% (non-condensing) |
| Weight | 365g |
| Dimensions (Φ x H) | 180 x 55 mm |
| Emission | CE, FCC |

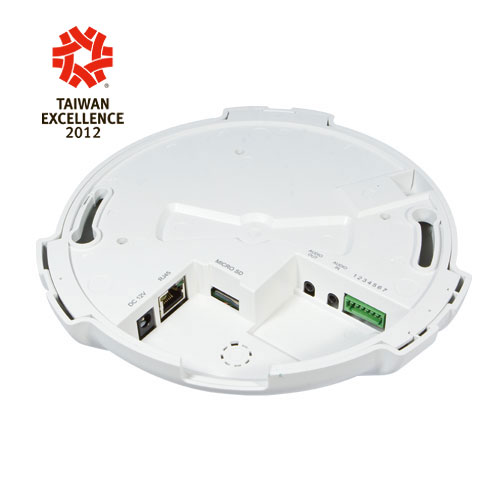

| Connectors | 10/100 Mbps Ethernet, RJ-45 DC power jack Terminal block for 1 alarm input and 1 output Audio in Audio out Micro SD/SDHC card (max 32GB, Class 6) Factory default reset button |
