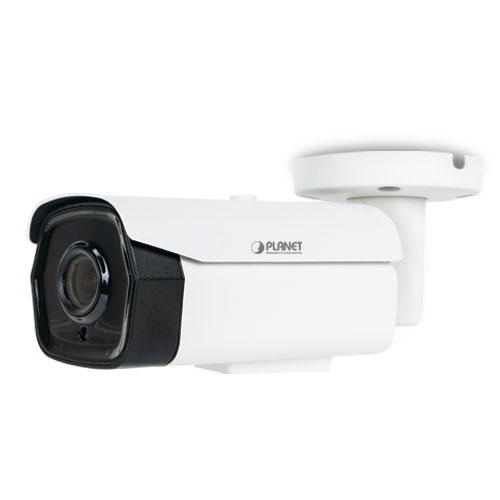

Planet - ICA-M3580P - H.265 5 Mega-pixel Smart IR Bullet IP Camera with Remote Focus and Zoom
- Excellent Efficiency Surveillance Video
- High Efficiency Video Compression
- Smart Focus with Zoom Function
- Exceptional Image Quality
- Advanced Media Management
- Flexible Installation and Power Functionality
- Scheduled Power Rebooting
- Water-resistant and Dust-proof Protection
- High Scalability for Various Industrial IP Surveillance Solutions
Part number:
ICA-M3580P
Price:
Camera
- 1/2.7" 5 megapixel SmartSens CMOS sensor

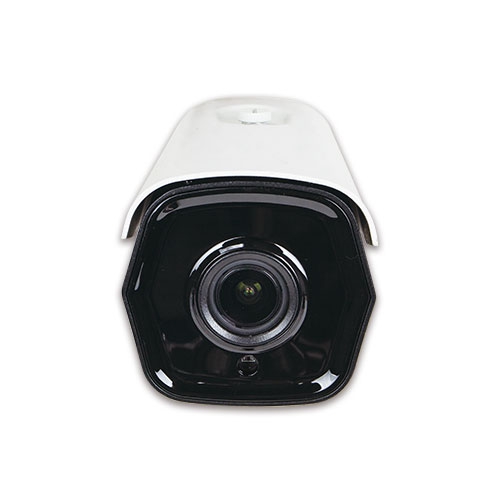

- 2.7-13.5mm 5X motorized zoom auto focus lens
- Remote smart focus for remote and precise focus adjustment
- 0.01 lux minimum illumination at F1.2

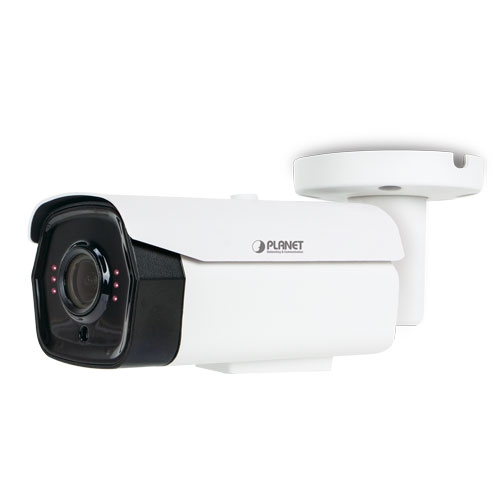

- Built-in smart IR illuminators, effective up to 60 meters
- Removable IR-cut filter for Day & Night function
Video and Audio
- Simultaneous H.264(+)/H.265(+)/JPEG/AVI/M-JPEG triple-stream video encoding
- Simultaneous multi-stream support
- H.264/M-JPEG baseline profile, main profile or high profile options
- Max. resolution of 2880 x 1620 at 25 fps
- HDR (120dB) enhancement function strengthens visibility under extremely bright or dark environments
- 3DNR to improve picture quality at low lux
- Two-way audio support
- Image adjustment options
- Image adjustment
- Exposure settings
- Focus
- Backlight settings
- Day and night switch
- White balance
- Video adjustment
- Image enhancement
- Defog model
- OSD settings
- Motion detection, video tampering, intrusion detection
- 3 configurable regions of privacy mask to protect personal privacy
- RoI (Region of Interest)
Power over Ethernet
- Compatible with IEEE 802.3af Power over Ethernet PD for flexible deployment
Network Configuration and Management
- IPv4 DHCP Client and IPv4 Static IP Address management
- PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP encryption and IPEYE available options
- ONVIF compliant for interoperability
- SNTP Network Time Protocol/synchronize with computing time
- Scheduled power rebooting
- System log
- User management options for various authorities:
- Admin
- Operator
- Guest
- System maintenance
- Firmware upload/download via HTTP
- Configuration upload/download through web interface
- Easy configuration and management via Windows-based software or web interface
- PLANET Search Tools utility and Professional Video/Central Management Software
Case and Installation
- IP67-rated metal housing with cable management bracket for rigorous environment
- Waterproof and dustproof designs
- -20 to 60 degrees C operating temperature
- Plug and Play installation
| Camera | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/2.7" 5MP SmartSens CMOS sensor | ||||||||||
| Lens | Focus Length: 2.7-13.5mm Focus Control: Auto Lens Type: Motorized Angle of view: - Horizontal: 24~90 degrees - Vertical: 17~74 degrees |
||||||||||
| Min. Illumination | 0.01 lux (color) @ F1.2 0lux (B/W) @ IR on |
||||||||||
| IR Illuminations | Built-in smart IR illuminators, effective up to 60 meters *The IR distance is based on the environment |
||||||||||
| Effective Pixels (H x V) | 2880 x 1620 | ||||||||||
| Image | |||||||||||
| Video Compression | H.264(+)/H.265(+)/JPEG/AVI/M-JPEG | ||||||||||
| Video Resolution |
|
||||||||||
| Frame Rate | Up to 15~30 fps for all resolutions | ||||||||||
| Bitrate | 32~16384kbps | ||||||||||
| Shutter Time | Auto: PAL 1/25-1/10000Sec; NTSC 1/30-1/10000Sec | ||||||||||
| Image Setting | Image adjustment Exposure settings Focus Backlight settings Day and night switch White balance Video adjustment Image enhancement Defog model OSD settings (Text, time and date overlay and overlay image on video) Motion detection, video tampering 3 configurable regions of privacy mask to protect personal privacy |
||||||||||
| Streaming | Streaming over UDP, TCP, HTTP, or HTTPS Controllable frame rate M-JPEG streaming over HTTP (server push) Constant and variable bit rate ROI (Region of Interest) |
||||||||||
| Audio | |||||||||||
| Audio Input | External audio I/O | ||||||||||
| Audio Streaming | Two-way audio | ||||||||||
| Audio Compression | G.711A/G.711U/AAC | ||||||||||
| Networking & Configuration | |||||||||||
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3af Power over Ethernet |
||||||||||
| Protocol | IPv4 DHCP Client and IPv4 Static IP Address management PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP Encryption and IPEYE |
||||||||||
| Security | User Management options for various authorities - Admin - Operator - Guest |
||||||||||
| Users | On-line monitoring of 16 clients at the same time | ||||||||||
| Web Brower | IE8~11, Google Chrome, Firefox, Mac Safari | ||||||||||
| App | Yes (Android, IOS with P2P QR code) | ||||||||||
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Netherlands, Czech, Vietnamese | ||||||||||
| System Integration | |||||||||||
| Application Programming Interface | ONVIF compliant | ||||||||||
| Alarm Triggering | Motion detection/video tampering/intrusion detection | ||||||||||
| Alarm Events | SMTP, FTP, Cloud (Google, Dropbox) | ||||||||||
| Hardware Specifications | |||||||||||
| Power Requirements | DC12V±10%, 1100mA IEEE 802.3af Power over Ethernet |
||||||||||
| Power Consumption | 8W (IR on) | ||||||||||
| Dimensions (W x D x H) | 179 x 93 x 94 mm | ||||||||||
| Weight | 1.4kg | ||||||||||
| LED | 42μ x 6pcs | ||||||||||

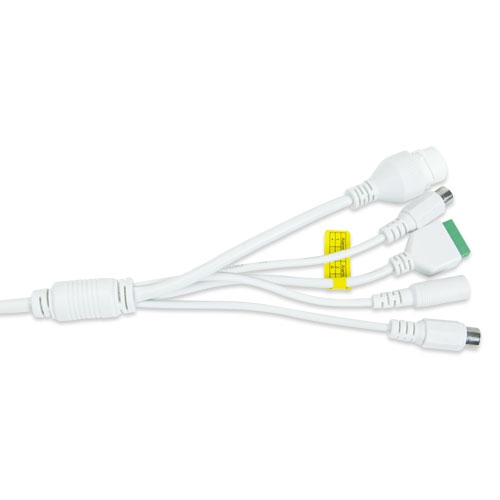

| Connector | 10/100Mbps Ethernet, waterproof/dustproof RJ45 connector DC power jack RCA audio in/out (white), Alarm in/out(white) |
||||||||||
| Enclosure | IP67 metal case | ||||||||||
| Power over Ethernet | |||||||||||
| PoE Standard | IEEE 802.3af PoE PD | ||||||||||
| Standards Conformance | |||||||||||
| Regulatory Compliance | FCC Part 15 Class B, CE | ||||||||||
| Environment | |||||||||||
| Operating | Temperature: -20 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
||||||||||
| Storage | Temperature: -20 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
||||||||||
