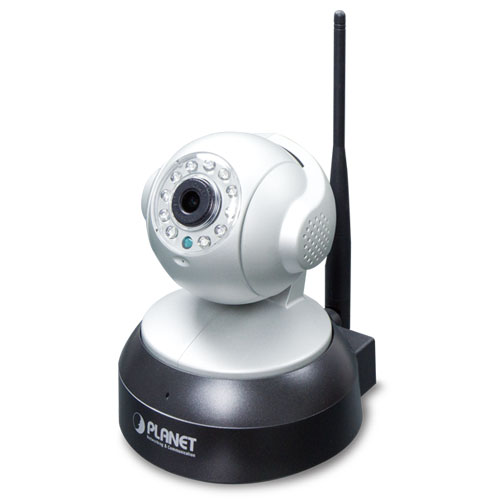

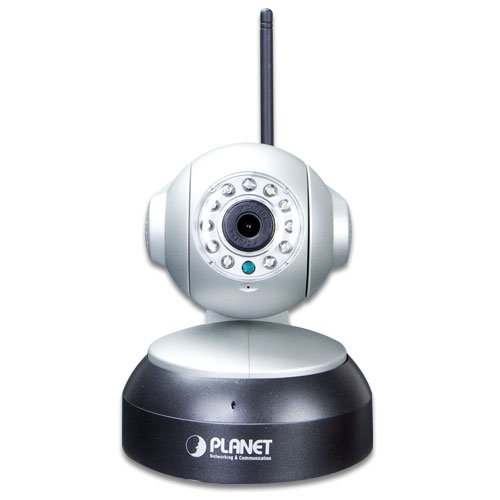

Planet - ICA-W7100 - 720P Wireless IR PT IP Camera
- Compact and Cost-effective 720p HD Surveillance
- Day & Night Surveillance
- Exceptional Image Quality
- Advanced Event Management
- Flexible Installation with 11n Wireless Connectivity
Part number:
ICA-W7100
Price:
Camera
- 1/4" progressive CMOS sensor
- 3.6mm fixed lens
- 0.1 lux minimum illumination at F1.2
- Maximum resolution 1280 x 720
- Built-in 11 IR illuminators, effective up to 10 meters
Video / Audio
- H.264 video compression
- Simultaneous multi-stream support
- Max. resolution 720p at 30fps
- 2DNR to improve picture quality at low lux
- 2-way audio support with enhanced audio quality
Network and Configuration
- IEEE 802.11n wireless LAN capability
- WEP / WPA / WPA2-PSK wireless security
- Auto MDI/MDI-X supported
- RTSP / DDNS / FTP protocols selectable
Easy Installation & Management
- ONVIF compliant for interoperability
- Intelligent motion detection alarm triggering
- Micro SD/SDHC card for event recording supported
- Digital input/output for integration with sensors and alarms
- Easy configuration and management via Windows-based utility or web interface
| Camera | |
|---|---|
| Image Device | 1/4" 1mega-pixel CMOS image sensor |
| Lens | Fixed lens 3.6mm, F1.4 Angle of view: Horizontal: 75 degrees Vertical: 55 degrees |
| Effective Pixels | 1280 x 720 |
| Min Illumination | Color: 0.1 lux @ F1.2 B/W: 0 lux (IR on) |
| LED | Built-in IR LED x 11, effective up to 10 meters *The IR distance is based on the environment |

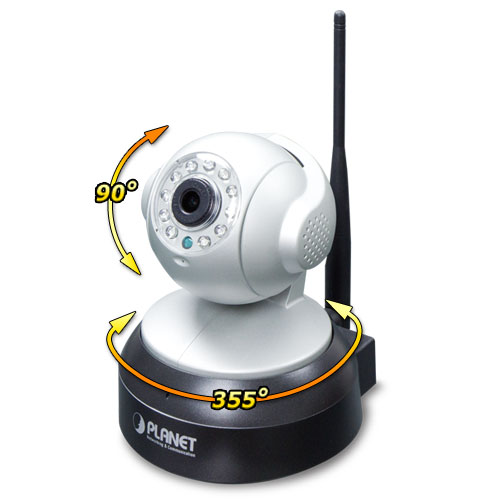

| Angle of Pan | 0~355 degrees |
| Angle of Tilt | 0~90 degrees |
| Video | |
| Video Encoder | H.264 |
| Video Resolution | Main Stream (H.264): 1280 x 720 / 720 x 576 / 640 x 480 Sub Stream (H.264): 720 x 576 / 640 x 480 / 352 x 288 / 320 x 240 / 174 x 144 |
| Frame Rate | Up to 30fps for all resolutions |
| Image Setting | 2D noise reduction Color, brightness, contrast Mirror / Rotate 4 privacy masks Text, time and date overlay |
| Streaming | Simultaneous multi-streaming Streaming over UDP, TCP, or HTTP Controllable frame rate and bandwidth Constant and variable bit rate |
| Audio | |
| Audio Streaming | 2-way audio |
| Audio Compression | PCM, G.711ALAW, G.711ULAW |
| Microphone | Internal microphone |
| Audio Output | Adjustable audio output gain |
| Network and Configuration | |
| Network Standard | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.11 b/g/n |
| Network Protocol | IPv4, TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP, 802.1X |
| Antenna Connector | RP-SMA Female |
| Frequency | 2.4GHz |
| RF Transmit Power | 802.11b mode: 20 dbm 802.11g mode: 17 dbm 802.11n mode: 17 dbm |
| RF Receiver Sensitivity | 802.11b (11Mbps): -85dbm 802.11g (54Mbps): -68dbm 802.11n (20MHz): -68dbm 802.11n (40MHz): -68dbm |
| RF Data Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n (20MHz): up to 72Mbps 802.11n (40MHz): up to 150Mbps |
| Security | Password protection; WEP, WPA-PSK and WPA2-PSK encryptions |
| Users | 2 clients on-line monitoring at the same time |
| System Integration | |
| Application Programming Interface | ONVIF compliant |
| Alarm Triggering | Motion Detection External Input |
| Alarm Events | Event snapshot uploads via FTP Event recording uploads via SD card Notification via email, HTTP External output activation |
| Environment | |
| Power Requirements | 5V DC, 10W max. |
| Power Consumption | Up to 7.8W (IR & PT on) |
| Operating Temperature | -10 ~ 50 degrees C |
| Operating Humidity | 20 ~ 85% (non-condensing) |
| Dimensions (W x D x H) | 103 x 106 x 131mm |
| Weight | 305g |
| Emission | CE, FCC |
| Connectors | 10/100 Mbps Ethernet, RJ-45 DC power jack Terminal block for 1 alarm input and 1 output Audio out MicroSD/SDHC card (max 32GB) Factory default reset |
