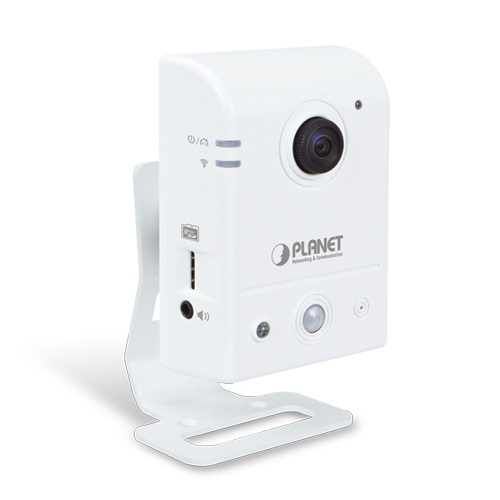

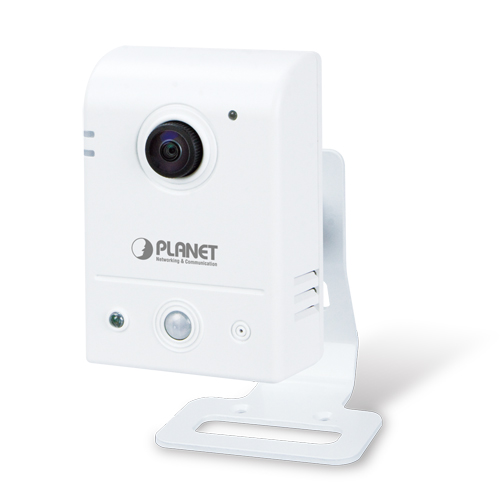

- Compact Wireless Panoramic Camera for Wide View Surveillance
- Wider Monitoring with 180º Panoramic View
- Efficient Event Management
- Enhanced Video Quality and 2-Way Audio Support
- High Quality Streaming via 11n Wireless Connectivity
Camera
• Fish-Eye Lens to bring a 180 degree panoramic wide angle view
• Unique Fish-Eye hardware correction technology
• 1.3 mega-pixel CMOS sensor
• Passive Infrared (PIR) Sensor for enhanced motion detection
Video / Audio
• H.264, MPEG-4 and M-JPEG video compression simultaneously
• Simultaneous Multi-H.264 streams support
• 2-Way audio support with enhanced audio quality
Network and Configuration
• Wireless 802.11n connectivity / Wi-Fi Protected Setup (WPS)
• UPnP® support for network setup & configuration
• Auto MDI/MDI-X supported
• RTSP / UPnP / HTTPS protocols selectable
Easy Installation & Management
• ONVIF compliant for interoperability
• Advanced e-PTZ, including preset point
• Plug and Play Smart Access Technology without IP setting in router
• Micro SD/SDHC card local video recording supported
• Cam Viewer 3 central management software supported
| Camera | |
|---|---|
| Image Device | 1/4" progressive 1.3 Mega-Pixel scan CMOS sensor |
| Lens | Fish-Eye Lens, 185.5/145/>=200° (H/V/D), F= 2.0, f=0.89 mm |
| Min. Illumination | 0.5 lux @ F2 |
| Effective Pixels | 1280 x 720 pixels (16:9) |
| PIR Sensor | 1 x Built-in sensor with adjustable 70 degrees direction Effective Distance: 5 meters Effective Coverage: 70 degrees |
| Video | |
| Video Encoder | H.264 / MPEG-4 / M-JPEG |
| Video Resolution | H.264: 1280 x 720 / 640 x 360 / 320 x 180 MPEG4: 1280 x 720 / 640 x 360 / 320 x 180 M-JPEG: 1280 x 720 / 640 x 360 / 320 x 180 |
| Frame Rate | Up to 30fps for all resolutions |
| Image Setting | AE, AWB, Brightness, Saturation, Contrast, Mirror/Rotate, Color/BW |
| Streaming | Simultaneously multi-profile streaming Streaming over UDP, TCP, or HTTP M-JPEG streaming over HTTP (server push) Controllable frame rate and bandwidth Constant and variable bit rate (M-JPEG / H.264) |
| Rate Control | CBR (Constant Bit Rate) VBR (Variable Bit Rate) |
| UI Layout | 180 degree Single Broad View (1P) 2 PTZ Mode (2R) 180 degree Broad View + 2 PTZ Mode (1P2R) |
| Audio | |
| Audio Streaming | 2-Way Audio |
| Audio Compression | RTSP: G.711 64kbps |
| Microphone | Built-in Microphone |
| Audio Output | Line Out for extra speaker |
| Network and Configuration | |
| Network Standard | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE 802.11b/g/n |
| Network Protocol | IPv4, TCP/IP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, ICMP, Samba |
| Antenna connector | 1 x 3dBi (Max) |
| Frequency | 2.4GHz |
| RF Transmission Power | OFDM: 13dBm CCK: 17dBm |
| Output Power | 802.11n: 13dBm(default) +/- 1dBm 802.11g: 13dBm(default) +/- 1dBm 802.11b: 17dBm(default) +/- 1dBm |
| Receiver Sensitivity | 802.11b (11Mbps): CCK @ 8% PER = -88dBm 802.11g (54Mbps): OFDM @ 10% PER = -72dBm 802.11n Draft 6.0: HT20 @ 10% PER = -66 dBm HT40@ 10% PER= -61dBm |
| Data Rate | 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11n: up to 150Mbps |
| Security | Password protection / WEP and WPA Encryption |
| Users | Depends on streaming data rate used |
| System Integration | |
| Application Programming Interface | Open API for software integration ONVIF |
| Alarm Triggers | Intelligent video motion detection and PIR sensor |
| Alarm Events | File upload via FTP, e-mail or Micro SD/SDHC card Notification via e-mail, Mobile APP, and HTTP |
| Environment | |
| Power Requirement | 5V DC, 2A |
| Power Consumption | 6W (5VDC) |
| Operating Temperature | 0 ~ 45 Degrees C |
| Operating Humidity | 20 ~ 80% (non-condensing) |
| Weight | 134g |
| Dimensions (W x D x H) | 70 x 39 x 99 mm |
| Emission | CE, FCC |
| Connectors | 10/100 Mbps Ethernet, RJ-45 DC power jack Audio out Micro SD/SDHC card (Max 32GB, Class 6) WPS Button Factory default reset button |
