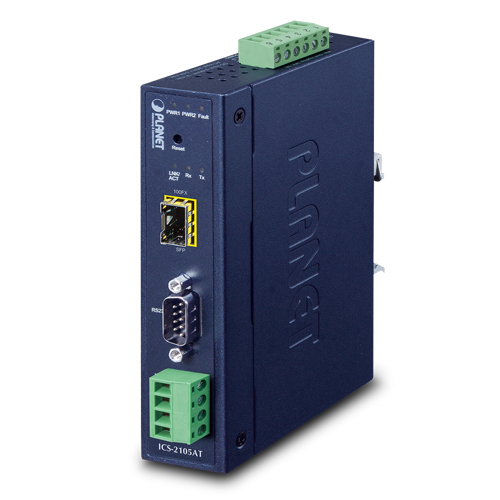

Industrial Managed Media Converter
Efficient Converter to Industrial Ethernet Application
The ICS-2105A is an efficient Serial over Ethernet Converter crafted to convert serial RS-232, RS-422 or RS-485 communication to Industrial Fast Ethernet networking. The budget friendly unit operates to extend the range of the network. The SC and LC connectors feature single-mode or multi-mode media to fit network requirements. The ICS-2105A is a quality unit that not only will save users time and money. Administrators can change serial equipments to Ethernet networks without replacement of existing system equipment.
Lengthen Network Range
The ICS-2105A has the ability to provide one SFP fiber slot. The mini-GBIC 100Base-FX SFP supports a distance of deployment extension from 2km through Multi-mode fiber, up to 120 kilometers and above through Single-mode fiber.
User Friendly Remote Management
The ICS-2105A ensures connected serial equipment can connect efficiently to a TCP/IP network. It operates as a Web Management Interface for remote network management. The ICS-2105A Media Converter also supports various modes, including Application mode and Serial operation mode. These allow administrators to save time locating network issues.
Efficient Operation in Difficult Environments
The ICS-2105A showcases immunity against environmental changes or interferences that can be experienced in industries. The unit operates with efficiency in temperatures ranging from -10 to 60°C, which allows the unit to be placed in virtually any location.
The ICS-2105A also includes a durable IP30 standard metal case that permits DIN or wall mounting. It also includes a built-in power supply that supports a variety of voltages.
The ICS-2105A is an efficient Serial over Ethernet Converter crafted to convert serial RS-232, RS-422 or RS-485 communication to Industrial Fast Ethernet networking.
- Speed: DB8 to 100FX SFP
- Fiber Connection: LC
- Operating Temperature: -10° to 60°C
- TAA Compliant
Industrial Managed Media Converter
Efficient Converter to Industrial Ethernet Application
The ICS-2105A is an efficient Serial over Ethernet Converter crafted to convert serial RS-232, RS-422 or RS-485 communication to Industrial Fast Ethernet networking. The budget friendly unit operates to extend the range of the network. The SC and LC connectors feature single-mode or multi-mode media to fit network requirements. The ICS-2105A is a quality unit that not only will save users time and money. Administrators can change serial equipments to Ethernet networks without replacement of existing system equipment.
Lengthen Network Range
The ICS-2105A has the ability to provide one SFP fiber slot. The mini-GBIC 100Base-FX SFP supports a distance of deployment extension from 2km through Multi-mode fiber, up to 120 kilometers and above through Single-mode fiber.
User Friendly Remote Management
The ICS-2105A ensures connected serial equipment can connect efficiently to a TCP/IP network. It operates as a Web Management Interface for remote network management. The ICS-2105A Media Converter also supports various modes, including Application mode and Serial operation mode. These allow administrators to save time locating network issues.
Efficient Operation in Difficult Environments
The ICS-2105A showcases immunity against environmental changes or interferences that can be experienced in industries. The unit operates with efficiency in temperatures ranging from -10 to 60°C, which allows the unit to be placed in virtually any location.
The ICS-2105A also includes a durable IP30 standard metal case that permits DIN or wall mounting. It also includes a built-in power supply that supports a variety of voltages.
| Serial Port | |
| Interface | RS-232 x 1 RS-422 / RS-485 x 1 |
| Connector | DB9 for RS-232 Terminal block for RS-422 / RS-485 |
| Baud Rate (Data Rate) | 300bps to 921600bps |
| Data Bits | 5, 6, 7, 8 |
| Parity Type | 1, 1.5/2 |
| Stop Bit | Odd, Even, None, Space, Mark |
| Flow Control | Hardware, None |
| Signals | RS-232: DCD, RxD, TxD, GND, RI RS-422: Tx+, Tx-, Rx , Rx- RS-485: Data A (+), Data B (-) |
| Fast Ethernet Port | |
| Connector | ICS-2102 / ICS-2102S15: SC ICS-2105A: LC (SFP) |
| Mode | ICS-2102: Multi-Mode ICS-2102S15: Single Mode ICS-2105A: Multi-Mode / Single-Mode (Vary on SFP module) |
| Distance | ICS-2102: 2km ICS-2102S15: 15km ICS-2105A: 2km up to 120km (Vary on SFP module) |
| Optical Wavelength | ICS-2102: 1300nm ICS-2102S15: 1310nm ICS-2105A: (Vary on SFP module) |
| Cable | ICS-2102: 50/125μm or 62.5/125μm multi-mode fiber cable ICS-2102S15: 9/125μm single-mode fiber cable ICS-2105A: 50 or 62.5/125μm multi-mode fiber cable 9/125μm single-mode fiber cable |
| Hardware | |
| LED Indicators | System: Power 1, Power 2, Fault TP or Fiber Port: Link / Active Serial Port: Serial port mode, RS-232, RS-422 or RS-485 |
| Management | Web Management PLANET Smart Discovery Utility |
| Virtual COM Utility Platform Supports | Windows Base Only: Windows XP Windows Server 2003 Windows 7 Windows Server 2008 Windows 8 (Must install latest version of WinPcap) Windows Server 2012 (Must install latest version of WinPcap) |
| Operation Mode | TCP Server TCP Client UDP Client Virtual COM Telnet Server Pair Connection – Remote (Slave) Pair Connection – Local (Master) |
| Dimensions (W x D x H) | 135 x 97 x 32 mm |
| Weight | ICS-2102 / ICS-2102S15 : 431g ICS-2105A: 428g |
| Power Supply | 12~48V DC / 24V AC, Redundant power input with polarity reverse protection |
| Power Consumption | Standby 12VDC: 0.34A(4.08w) 24VDC: 0.16A(3.84w) 48VDC: 0.09A(4.32w)Full Load 12VDC: 0.48A(5.76w) 24VDC: 0.23A(5.52w) 48VDC: 0.13A(6.24w) |
| Installation | DIN rail kit and wall mount ear |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| Enclosure | IP30 metal case |
| Environment | Operating Temperature: -10~60 degrees C Storage Temperature: -20~75 degrees C Operating Humidity: 10~90% RH Storage Humidity: 5~90% RH |
| Emissions | FCC Class A, CE Certification Class A |
| Standards | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX / 100Base-FX EIA/TIA RS-232/422/485 |
| Regulatory Approval | RoHS |
| Stability Testing | IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
