Industrial IP67 PoE Switch

Suitable for Industrial Environment

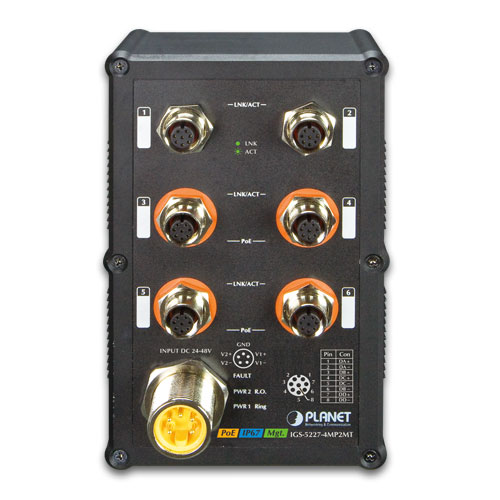

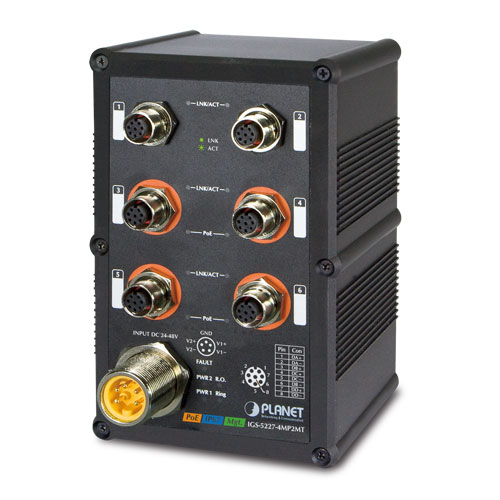

PLANET’s IGS-5227-4MP2MT, an Industrial Layer 2+ Managed Ethernet Switch, supports 4-port 10/100/1000T 802.3at PoE+, 2-port 10/100/1000T, and static Layer 3 routing. The switch comes with an IP67-rated industrial case which provides a high level of immunity against electromagnetic interference and heavy electrical surges that can be found on plant floors or in curb side traffic control cabinets. The IGS-5227-4MP2MT takes up less space by being able to be easily mounted on a DIN rail or wall. Each of the four Gigabit PoE+ ports provides 36 watts of power, which means a total power budget of up to 144 watts can be utilized simultaneously. It also provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.

Waterproof and Dustproof M12 Ethernet Connector

The IGS-5227-4MP2MT is equipped with a 6-port 10/100/1000BASE-T auto-negotiation dustproof M12 connector with 4-port IEEE 802.3at PoE+ (Port 3 to Port 6). The M12 connections are tight and strong which guarantee stable Ethernet operation performance under high vibration and shock environments. The ports have an industrial protection rating of IP67  which withstands humidity, dirt, dust, shock, vibrations, heat and cold. The IGS-5227-4MP2MT is able to operate between the temperature range of -40 to 75°C. All these features ensure the highest level of reliability for mission-critical applications in any difficult environment.

Dual Power Input for High Availability Network System

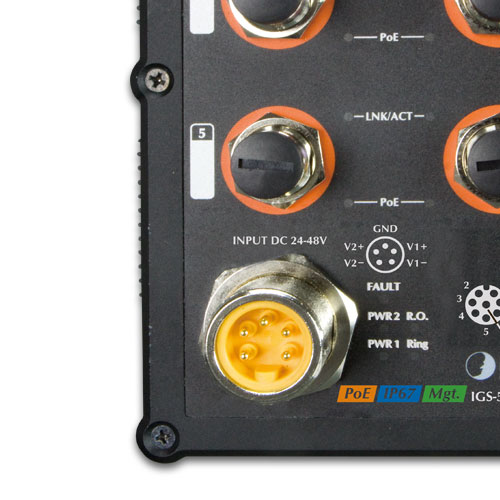

The IGS-5227-4MP2MT features a strong dual power input system (Dual 24V~48V DC) which can be incorporated into customer’s automation network to enhance system reliability and uptime. For example, when DC Power 1 fails to work, the hardware failover function will be activated automatically to keep powering the IGS-5227-4MP2MT via DC Power 2 alternatively without loss of operation.

Convenient and Reliable Power System

To facilitate the 802.3at High Power PoE usage with the commonly used 24~48V DC power inputs, the IGS-5227-4MP2MT adopts 24~48V DC to 51V DC power boost technology to solve the power source issue which is not required for special power supplies to achieve the level of High Power PoE+ output. To enhance the operation reliability and flexibility, the IGS-5227-4MP2MT is equipped with two DC power input connectors for redundant power supply installation.

Centralized Power Management for Gigabit Ethernet PoE Networking

The IGS-5227-4MP2MT features high-performance Gigabit IEEE 802.3at PoE+ (up to 36 watts) on all ports to fulfill the high power PoE networks with Gigabit speeds. It meets the power requirements for PoE VoIP phone, PoE Wireless AP and PoE IP cameras such as IR, PTZ, speed dome and even box type IP cameras with a built-in fan and heater for high power consumption. The IGS-5227-4MP2MT’s PoE capabilities also help to reduce deployment costs for network devices as a result of freeing from restrictions of power outlet locations. Power and data switching are integrated into one unit, delivered over a single cable and managed centrally. It thus eliminates cost for additional AC wiring and reduces installation time.

Built-in Unique PoE Functions for Surveillance Management

As a managed PoE Switch for surveillance networks, the IGS-5227-4MP2MT features the following intelligent PoE management functions:

• PD Alive Check
• PoE Schedule
• Scheduled Power Recycling
• SMTP/SNMP Trap Event Alert

Intelligent Powered Device Alive Check

The IGS-5227-4MP2MT can be configured to monitor a connected PD (Powered Device) status in real time via ping action. Once the PD stops working and it is without response, the IGS-5227-4MP2MT will resume the PoE port power and bring the PD’s back to work. It will greatly enhance the network reliability through the PoE port resetting the PDs power source, thus reducing administrator management burden.

Scheduled Power Recycling

The IGS-5227-4MP2MT allows each of the connected PDs to reboot at a specified time each week. Therefore, it will reduce the chance of PD crash resulting from buffer overflow.

SMTP/SNMP Trap Event Alert

Though most NVR or camera management software offers SMTP email alert functions, the IGS-5227-4MP2MT provides an event alert function to help diagnose the abnormal device owing to whether or not there is a break of the network connection, loss of PoE power or the rebooting response by the PD Alive Check process.

PoE Schedule for Energy Saving

Besides being used for IP surveillance, the IGS-5227-4MP2MT is certainly applicable to build any PoE network including VoIP and wireless LAN. The IGS-5227-4MP2MT is environmentally friendly and can effectively control the power supply besides its capability of giving high watts power. The PoE schedule function lets you enable or disable PoE power feeding for each PoE port during specified time intervals which is a powerful function to help SMBs and enterprises save energy and budget.

Redundant Ring, Fast Recovery for Critical Network Applications

The IGS-5227-4MP2MT supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and redundant power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple Ring network, the recovery time of data link can be as fast as 20ms.

IPv6/IPv4 Dual Stack

Supporting both IPv6 and IPv4 protocols, the IGS-5227-4MP2MT helps data centers, campuses, telecoms, and more to experience the IPv6 era with the lowest investment. The network facilities do not need to be replaced or overhauled if the IPv6 FTTx edge network is set up.

Layer 3 IPv4 and IPv6 VLAN Routing for Secure and Flexible Management

The IGS-5227-4MP2MT not only provides ultra high transmission performance, and excellent Layer 2 and Layer 4 technologies, but also Layer 3 IPv4/IPv6 VLAN routing features which allows crossing over different VLANs and IP addresses for the purpose of having a highly-secure, flexibly-managed and simple networking application.

Robust Layer 2 Features

The IGS-5227-4MP2MT can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and IGMP/MLD Snooping. Via the link aggregation of supporting ports, the IGS-5227-4MP2MT allows the operation of a high-speed trunk to combine with multiple fiber ports and supports fail-over as well.

Powerful Security

The IGS-5227-4MP2MT offers a comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x port-based and MAC-based user, and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The IGS-5227-4MP2MT also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly-secure corporate networks with considerably less time and effort than before.

Excellent Traffic Control

The IGS-5227-4MP2MT is loaded with powerful traffic management and QoS features to enhance connection services by telecoms and ISPs. The QoS features include wire-speed Layer 4 traffic classifiers and bandwidth limits that are particularly useful for multi-tenant units, multi-business units, Telco and network service providers applications. It also empowers the industrial environment to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.

Efficient and Secure Management

With built-in Web-based management interface, the IGS-5227-4MP2MT L2+ Managed Switch offers an easy-to-use, platform-independent configuration facility which includes Web and SNMP management interfaces. For reducing product learning time, it offers a Cisco-like command via Telnet so customers do not need to learn a new console command. Moreover, it also offers secure remote management by supporting SSH, SSL and SNMP v3 connections which encrypt the packet content at each session.
