IP30 Industrial 1-port 10/100/1000T to 2-port 100/1000/2500X SFP Media Converter(-40 to 75 degree C, dual 12~48V DC/24V AC, Fiber ports Switch/Redundant mode DIP switch)
1000FX Media Converter
Flexible, Reliable and Industrial-grade Network Distance Extension Solution

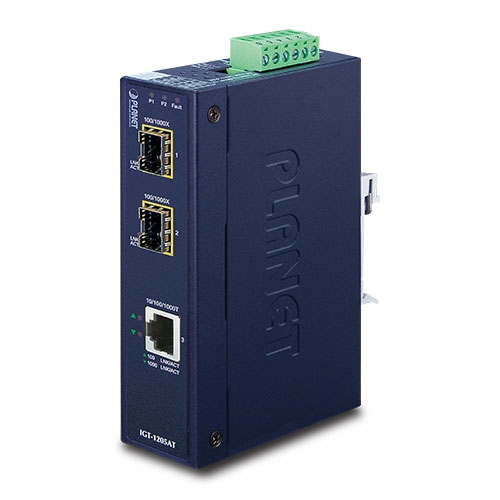

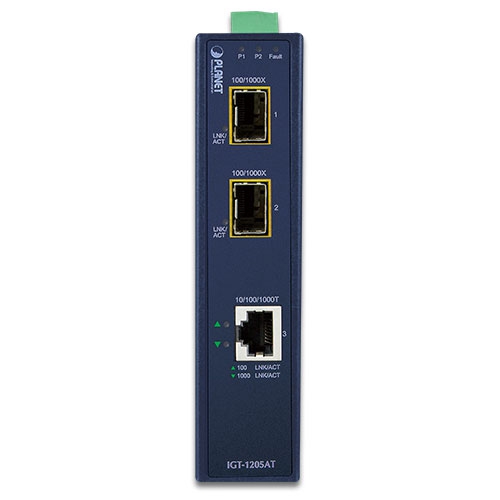

The IGT-1205AT from Planet Technology is an industrial Gigabit Media Converter that offers non-blocking wire-speed performance. This unit permits incredible versatility for the extension of Gigabit Ethernet in demanding industrial environments. The unit features a single 10/100/1000Base-TX RJ-45 copper and two 100/1000Base-XX SFP fiber optic interfaces. In addition, it is housed in a durable IP30 rugged strong case that features redundant power system. The IGT-1205AT is ideal for those seeking to deploy a surveillance system and enabling enhanced wireless service in environments with harsh conditions, ranging in temperatures -40 to 75°C.
Fiber-Optical Link Capability Enables Extension of Network Deployment
The two SFP slots on the unit are compatible with 100Base-FX or 1000Base-SX / LX / WDM through SFP (Small Form Factor Pluggable) fiber-optic transceivers. The unit’s fiber optic uplink ensures that the throughput to all nodes and the Gigabit Ethernet distance has the ability to be extended to 550 meters with Multi-Mode fiber cable and up to 10/20/30/40/50/70/120 kilometers with Single-Mode fiber cable. The Fast Ethernet distance also can be simply extended to 2km with Multi-Mode fiber cable up to 20/40/60 kilometers. These units are ideal for applications data or distribution centers.
Adjustable 3-Port Switch Mode or 2 Fiber Redundant Mode
Through the unit’s built-in DIP switch, the two SFP fiber interfaces of the unit can be simply configured as Ethernet switch mode or Fiber Redundant mode. With the unit’s Ethernet switch mode, it operates in Store-and-Forward mechanism with optimal performance. When in the 2-port Fiber redundant mode, the unit offers quick fiber redundancy of link for highly critical Ethernet applications. The unit’s redundant mode supports the auto-recovering function. If a packet’s destination port is link-down, it will forward the packet to the other port of the backup pair.
Environmentally Resistant
The IGT-1205AT features a compact IP30 metal case, which makes deployment in demanding environments simple. With IP30 industrial case protection, the IGT-1205AT is resistant against the environment or electrical surges that can be experienced in various industries. Since the unit operates efficiently under temperatures ranging from -40 to 75°C, the unit can be placed in almost any difficult environment. The IGT-1205AT also permits DIN or rail mounting.
Dependable Power System
The IGT-1205AT features DC power input connectors for the installation of redundant power supply.The unit also features a integrated power converter voltages ranging from 12 to 48VDC or 24VAC for worldwide applications that need double or backup power inputs.
The IGT-1205AT is an industrial Gigabit Media Converter that offers non-blocking wire-speed performance.
Features:
- Speed: 10/100/1000TX to 2 x 100/1000/2500FX SFP
- Optical Interface: *SFP module required and sold separately*
- Operating Temperature: -40° to 75°C
- TAA Compliant
| Hardware Specifications | |||||
| Copper Port | 1 x 10/100/1000Base-T RJ-45 TP Auto-MDI/MDI-X, Auto-Negotiation | ||||
| SFP / mini-GBIC Slots | 2 1000Base-SX/LX/BX SFP interfaces (Port-1 and Port-2) Compatible with 100Base-FX SFP | ||||

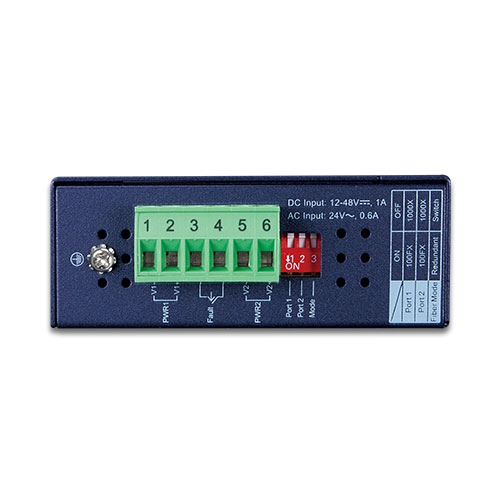

| DIP Switch | DIP-1: SFP Port 1 1000Base-X (default) / 100Base-FX DIP-2: SFP Port 2 1000Base-X (default)/ 100Base-FX DIP-3: Switch mode / Fiber Redundant mode | ||||
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 | ||||
| Alarm | Provides one relay output for power failure Alarm Relay current carry ability: 1A @ DC 24V | ||||
| LED | 3 x LED for System and Power: Green: DC Power 1 Green: DC Power 2 Green: Power Fault 2 x LED for Per Copper Port: Green: 1000 LNK/ACT Orange:100 LNK/ACT 1 x LED for Per mini-GBIC interface (Port-1 and Port-2): Green: LNK/ACT | ||||
| ESD Protection | 6KV DC | ||||
| EFT Protection | 6KV DC | ||||
| Enclosure | IP30 type metal case | ||||
| Installation | DIN rail kit and wall mount ear | ||||
| Dimensions (W x D x H) | 135 x 87 x 32mm | ||||
| Weight | 505g | ||||
| Power Requirements | DC 12~48V or AC 24V, Redundant power input with polarity reverses protection | ||||
| Power Consumption / Dissipation | 4.8 watts/16BTU | ||||
| Cable | Twisted-Pair 10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters 100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters 1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters Fiber-Optic Cable 1000Base-SX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m 1000Base-LX: 9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120 kilometers (vary on SFP module) 100Base-FX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 2 kilometers 9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers (vary on SFP module) | ||||
| Switch Specifications | |||||
| Switch Processing Scheme | Store-and-Forward | ||||
| Address Table | 1K entries | ||||
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex | ||||
| Switch fabric | 6Gbps | ||||
| Throughput (packet per second) | 4.46Mpps@64bytes | ||||
| Maximum Transmit Unit | 9216 bytes | ||||
| Speed | SX/LX: 2000Mbps (full-duplex) FX: 200Mbps (full-duplex) TP: 10/20Mbps, 100/200Mbps, 2000Mbps | ||||
| Standards Conformance | |||||
| Standards Compliance | IEEE 802.3 Ethernet / 10Base-T IEEE 802.3u Fast Ethernet / 100Base-TX IEEE 802.3ab Gigabit Ethernet / 1000Base-T IEEE 802.3z Gigabit Ethernet / 1000Base-SX/LX IEEE 802.3x Full-Duplex Flow Control | ||||
| Regulation Compliance | FCC Part 15 Class A, CE | ||||
| Stability Testing | IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) | ||||
| Environment | |||||
