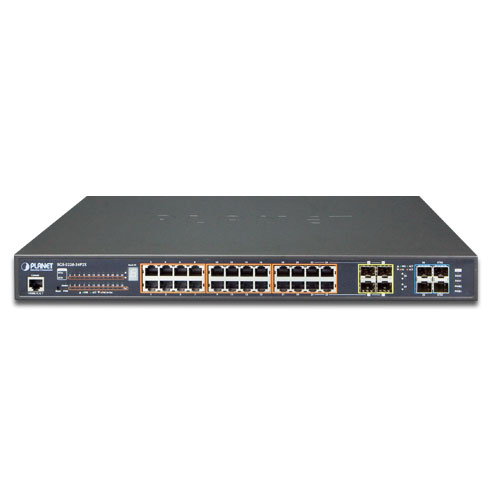

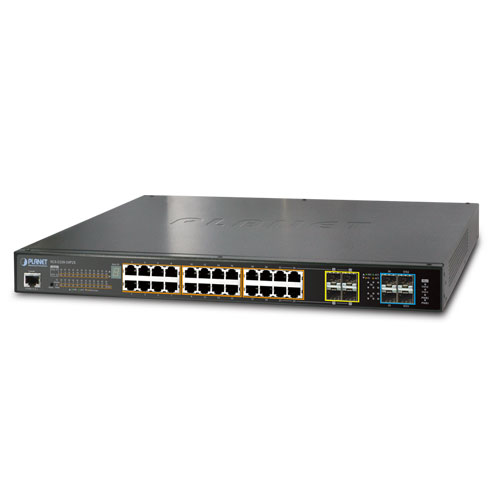

The SGS-5220-24P2X is Layer 2+ Stackable Managed Gigabit Switch provides 24 10/100/1000Mbps 802.3at PoE+ ports, 4 shared Gigabit SFP slots, 2 10G SFP+ uplink slots and another 2 dedicated 10G SFP+ stacked interfaces for stacking with the series of switches.

Features:

• Ports: 24 10/100/1000TX Shared 4 10/100/1000 TP/SFP
• Type: Managed
• PoE Ports: 24 PoE Ports
• Standard: 802.3at/af
• PoE Budget: 440W @ 25°C, 380W @ 50°C
• Power Consumption: 502 Watts / 1712.8 BTU
• Throughput: 95.2Mpps@64Bytes
• Operating Temperature: 0 to 50°C AC
• TAA Compliant

High-density, Resilient Deployment Switch Solution for Gigabit Networking of Enterprise, Campus and Data Center

For the growing Gigabit network and IoT (Internet of Things) demand, PLANET has launched a new-generation Stackable Gigabit Switch solution, the SGS-5220 switch series, to meet the needs of enterprises, telecoms and campuses for a large-scale network deployment. The SGS-5220-24P2X is Layer 2+ Stackable Managed Gigabit Switch, which supports both IPv4 and IPv6 protocols and hardware Layer 3 static routing capability, and provides 24 10/100/1000Mbps 802.3at PoE+ ports, 4 shared Gigabit SFP slots, 2 10G SFP+ uplink slots and another 2 dedicated 10G SFP+ stacked interfaces for stacking with the series of switches. Up to 16 units, 384 Gigabit Ethernet PoE+ ports and 32 10Gbps SFP+ slots can be managed by a stacking group and you can add ports and functionality as needed.

Efficient Single IP Management

The SGS-5220 stackable series applies the advantage of the stacking technology to managing the stack group with one single IP address, which helps network managers to easily manage a stack of switches instead of connecting and setting each unit one by one. The stacking technology also enables the chassis-based switches to be integrated into the SGS-5220 Stackable Managed Switch series at an inexpensive cost.

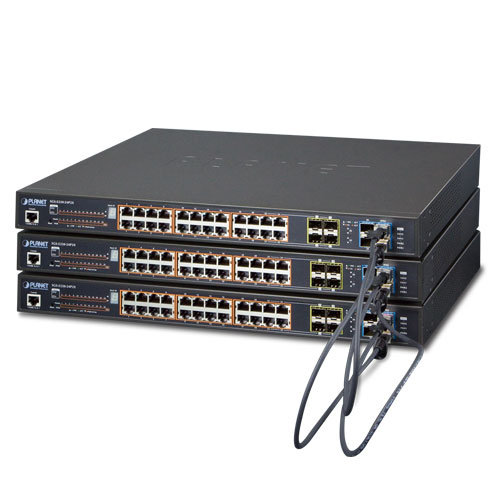

Highly-reliable Stacking Ability

Through its up to 40Gbps, bi-directional high bandwidth tunnel and stacking technology, the SGS-5220-24P2X gives the enterprises, service providers and telecoms flexible control over port density, uplinks and switch stack performance. The stack redundancy of the SGS-5220-24P2X ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.
