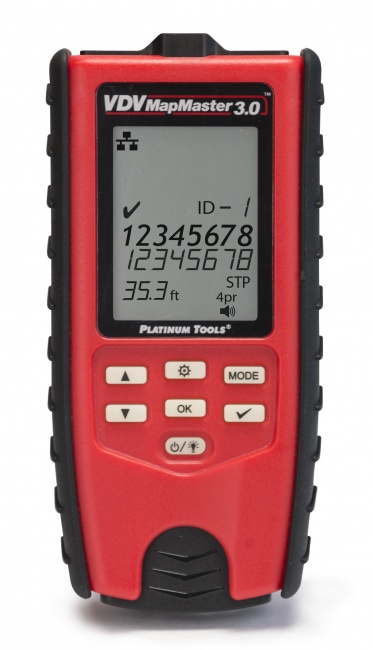

Platinum Tools - T130K2 - VDV MapMaster 3.0 Cable Tester Pro Kit Box
Part number:
T130K2
Price:
The VDV MapMaster™ 3.0 combines continuity testing, mapping, generating tones and length measurement functions into a single easy-to-use unit for installation, troubleshooting, and maintenance for telco, network, or coax cable. The back-lit display, glow-in-the dark keypad and a built-in flashlight helps you to work in the dark. Whether your jobs are commercial or residential, the versatility and added features of the VDV MapMaster 3.0 makes it a best value cable verifier for the professional installer!
Features:
- Tests to T568A/B wiremap configuration: shorts, opens, miswires, reverses and split pairs
- Single-ended Testing for Shorts & Split Pairs
- Measures Length in Feet/Meters
- Identifies cable location on active ports using flashing Port Link Light
- Easy to read, backlit LCD screen with large icons, glow-in-thedark keypad and built-in LED flashlight for use in dark areas
- Identify up to 20 network or coax cable runs at a time
- Audible Tone Generator, 4 selectable cadences
- Tests Voice (6 wire), Data (8 wire) and Video (coax)
- Works with Cable Tester Smart Remotes (#1-8)
| Display | Large 2.75” Backlit Monochrome LCD |
| Dimensions | 6.8” x 3.2” x 1.4” (17.3 x 8.1 x 3.5 cm) |
| Weight | 10.8 oz. (305 grams) with battery and remote |
| Operating Temperature | 0˚C/32˚F to 50˚C/122˚F |
| Storage Temperature | -20˚/-4˚F to 60˚C/140˚F |
| Humidity | 10% to 90%, non-condensing |
| Maximum Voltage between any two connector pins without damage | RJ12/RJ45/F: 50V DC or AC |
| Battery Life | 9V alkaline battery typical Standby: 4 years Active: 425 hours |
| Cable Types: | Shielded or Unshielded; CAT7, CAT6A, CAT5e, CAT5, CAT4, CAT3, Coax |
| Maximum RJ Cable Length Testing | 0 to 1,000 feet (305 meters) |
| Minimum Cable Length for Split Pair Detection | 1.5 feet (0.5 meters) |
| Maximum Coax Cable Length | Varies depending on cable resistance varies |
| Low Battery | Icon flashes when battery voltage falls below 6V |
| Measurement Technology | Capacitance testing |
| Length Accuracy Without Length Constant | ± 3% plus + 1 foot |
| Default Length Constant (Restored with power on reset) | Voice (Twisted pair): 17.4 pF/ft Video (Coax): 16.5 pF/ft Data (Twisted pair): 15 pF/ft |
| Warranty | Limited 1 yr |
