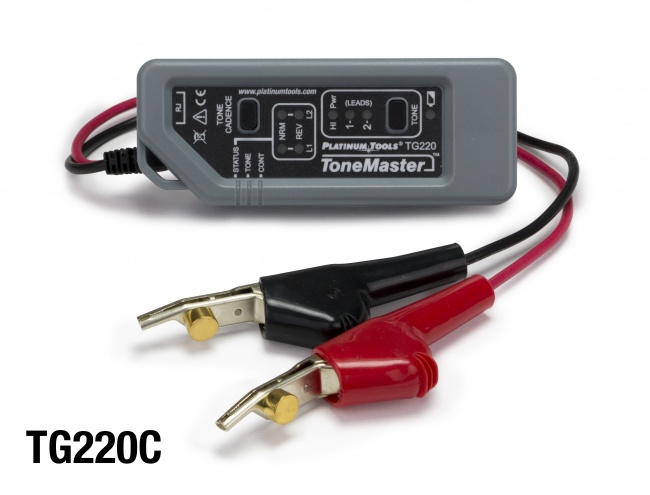

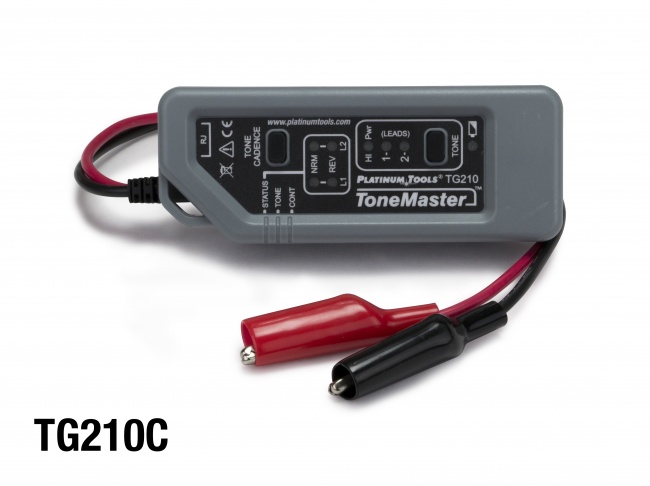

The Platinum Tools Professional Tone and Probe kit gives technicians a high powered tone generator with alligator clips and a high quality tone tracing probe. The ToneMaster high-powered tone generator enables signal detection over 20 miles away and makes tracing through walls and enclosures easier with multiple tones and power levels suited for network, signal wire, coax, and telephone cable applications.
Four tone amplitude levels include normal and half, high-powered normal and half, with the half amplitude unbalanced for stronger signal effect on twisted pairs. In addition, depending on test requirements, three distinctly different tones can be selected from the front panel.
Paired with the ToneSeeker tracer the ToneMaster makes easy work of tracing and locating cables and cable ends. This kit also includes a No-Fault, RJ12 cable to connect your ToneMaster to either RJ11 or RJ45 jacks and a Tone and Probe Belt Pouch to easily store your ToneMaster and ToneSeeker.
Kit Includes:
- ToneMaster™ High Powered Tone Generator
- ToneSeeker™ Tone Tracer Probe
- No Fault, RJ12 Cable (connects to RJ11 and RJ45 jacks)
- Coax Toning Cable
- RJ45 Coupler
- Tone and Probe Belt Pouch
| Tone Frequencies: | Dual 1,165 Hz and 874 Hz Two single tones 1,165 Hz and 874 Hz |
| Tone Power: | Typical (into 600Ω, new battery to 5.0 V) LO 3.6 dBm HI 9.3 dBm High Power Mode LO 12.3 dBm HI 18.4 dBm |
| Voltage Protection: | Status – DC 60 V, continuous AC 300 V peak, 2 secs Continuity (into 600Ω) – DC 52 V Tone Mode: 250 DC or peak AC volts |
| Electrical Battery Life | Time is for the full capacity of the battery used continuously (one 9 V Alkaline, 540 mA-hr, not included): 120 hrs, typical |
