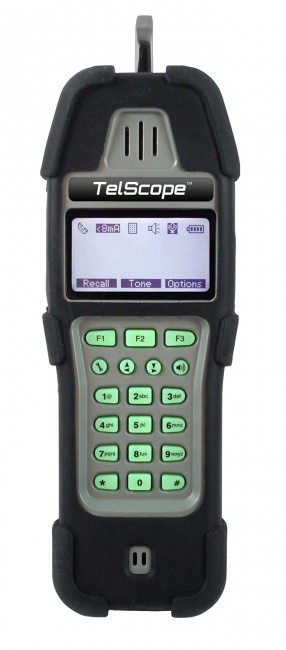

The TelScope is the first true 21st century telecommunication line analyzer setting a new standard for POTS butt sets. It is a field instrument that delivers more information of online conditions & status than any other test set on the market, anywhere in the world!!
Large backlit display for low light environments
Glow-in-the-dark keypad
Advanced data detection & identification
100% Data Safe
Rugged weatherproof case, IP54 Standard
Drop Proof (Tested at 20ft)
Functions
- 60-in cord set with Alligator Clips, Angled Bed-of-Nails, Piercing Point and No-Fault RJ12 8P8C connector
- Speaker with fine volume adjustment
- Noise cancelling microphone
- Microphone mute with toggle on/off locking feature
- Soft key menu system
- Metal spring-loaded belt clip
- Cushion boot for extra protection
- Off-hook current and polarity
- On-hook voltage and polarity
- On-hook and call waiting Caller ID info
- Amplified Line Monitor for volume levels comparable to
- 8 number Stored memory with Alpha/Numeric tags
- Fuel Gauge Battery condition
- Continuous Polarity Indication
- Caller ID/Call Waiting and Caller ID error detection
- Tone and Pulse dialing
- Configurable Auto Off in all modes
- Detects and identifies DSL and T1 lines
- Last number dialed, redialed or received
- Multilingual (English, French, Spanish)
- Backlight 0-100% adjustable with on/off option
| Product Dimensions | 8.25 x 2.5 x 2.0 inches without belt clip and cord set |
| Product Weight | 559.7 grams |
| Interface | Attached cord set |
| Languages | English, Spanish and French |
| Ringer Equivalence | In BELL mode: 0.0 (no ringer load) |
| Pulse Dialing | Pulse rate: 10 pps ± 10%; Make/break ratio: 60% to 40% ±2%; USA Interdigit interval: 820 ms; Resistance during break: 120K Ohms minimum |
| Tone Dialing | DTMF output (into 600 Ohms): Tone-frequency error: ±1.5%; Tone Level: High group: -6 ±2 dBm; Low group: -8 ±2 dBm; High group vs. Low group Difference (twist): 2 ±1 dBm |
| Flash Duration | ±50 ms |
| Pause Duration | Tone: 3 seconds; Pulse: 3.4 seconds |
| Memory | programmable locations, 32 digits with 12 character tag, stored in nonvolatile memory. Last number redial plus list of last 10 numbers dialed. |
| Return Loss | Minimum 14 dB at 600 Ohms |
| Line-Current Range | to 110 mA |
| Apparent Line Resistance | Ohms at 20 mA |
| Monitor Mode Impedance | DC: 1MΩ typical AC: 390 KΩ at 1 KHz typical |
| Measurement | Voltage: 0 to 200 VDC ±5%; Current: 10 to 110 mA ±5%; NOTE: Do not attach test set to electric-power lines |
| User Controls | (1) Left-side-mounted TALK/BELL/MON push button switches for operating modes; (1) Right-side-mounted microphone mute pushbutton; (4) Front-mounted pushbuttons for various options; (1) Standard front-mounted 12-key phone keypad |
| Display | Transflective 128 by 64 pixel graphical liquid crystal display (LCD) with LED backlight |
| Power | x AAA alkaline batteries |
| Battery Life | Operation: 7 hours min. 150 hours max. Standby: 2 years |
| Warranty | Year |
