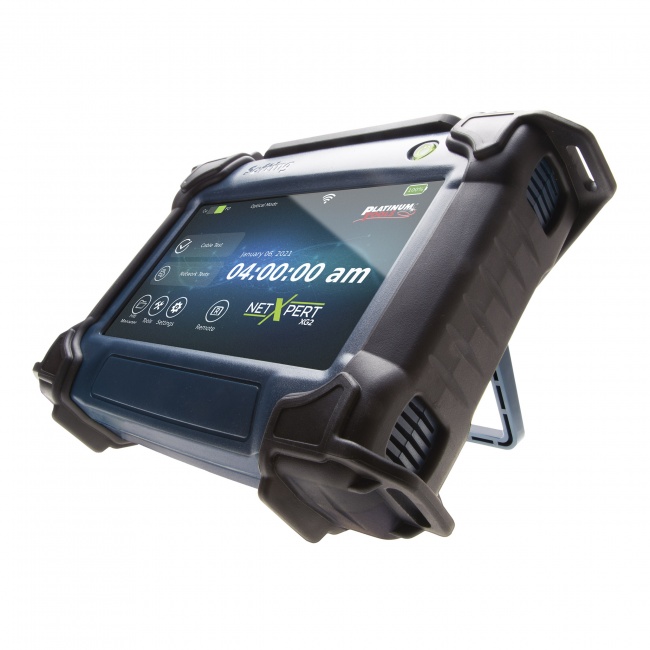

The NetXpert XG2 can certify copper or fiber networks to 10G speeds using advanced Bit Error Rate Testing (BERT), pushing real data packets over the cable and measuring the results. This is real world testing, which proves the capabilities of new networks and helps to identify those older cable runs that can operate at higher speeds. The XG2 is also equipped with a full suite of active network tests and tools to speed network installs, including PoE testing and network testing over WiFi. The NetXpert XG2 is designed to be the one device that can perform all the tests you need during an install, simplifying and speeding up the process.
Features:
- Ethernet Speed certification of copper and fiber optic systems up to 10Gb
- Complete active network testing over copper, fiber and Wifi systems
- Cable qualification to IEEE standards
- TDR & fiber cable length measurement
- PoE testing up to 90W (PoE++)
- Fiber Optic Kit includes Two Basic Kits
Length Measurement | Time Domain Reflectomoetry |
Output Connections | 8- Position Shielded Modular Jack (Data) 2 x 10Gb SFP+ (Fiber) |
| Interfaces | USB Type A |
| Languages | EN, FR, ESP, DEU, ITA |
| Temperature | Operating: -10 to 60°C Storage: -20 to 50°C When Charging: 10 to 40°C |
| Humidity | 10 to 90% non-condensing |
| Altitude | Operating: 10,000 Ft. (3,048m) |
| Power Supply | Input 100-240VAC, Output 12VDC 2.5A |
| Battery | Li-Ion, 7.8V 5500mAh - expected initial life 4hrs. typical at 1Gb speed |
| Enclosure | Rubber armored impact-resistant plastic |
| Size | Tester: 9.75 x 7 x 3" (245 x 177 x 73mm) Remote: 5.25 x 7 x 2.25" (130 x 177 x 55mm) |
| Weight | Tester: 2.65lbs. (1.2Kg) Remote: 1.3lbs. (0.6Kg) |
| Warranty | One Year |
| Compliance | CE |
