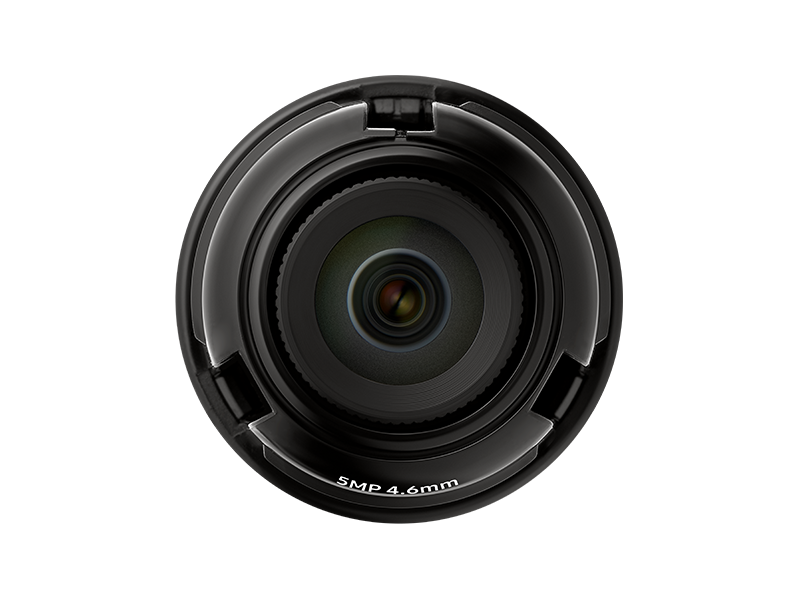

Hanwha - SLA-5M4600P - PNM-9320VQP / PNM-9321VQP Lens module
Part number:
SLA-5M4600P
Price:
1/1.8" 5MP CMOS with a 4.6mm fixed focal lens, FoV: H: 77.9˚, V: 57.9˚ for the PNM-9320VQP and PNM-9322VQP
Features:
- 1/1.8" 5MP CMOS
- 4.6mm fixed focal lens
- FoV: H: 77.9°, V: 57.9°
Videos
| Imaging Device | 1/1.8" 5M CMOS |
| Total Pixels | 3096(H) x 2094(V) |
| Effective Pixels | 2616(H) x 1976(V) |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.16Lux (F1.6, 1/30sec, 30IRE) B/W : 0.16Lux (F1.6, 1/30sec, 30IRE) |
| S / N Ratio | 50dB |
| Wide Dynamic Range | 120dB |
| Day & Night | Electrical |
LENS
| Focal Length (Zoom Ratio) | 4.6mm |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H:77.9˚, V:57.9˚, D:98.7˚ |
| Lens Type | Fixed focal |
| Mount Type | M12 Lens module with main unit |
PAN / TILT / ROTATE
| Pan / Tilt / Rotate Range | -90˚~+90˚ / +21~+85˚ / -180˚~+180˚ |
MECHANICAL
| Color / Material | Black / Plastic |
| Dimension (W x H x D) | Ø35.5 x 35.9 mm (Ø 1.39" x 1.41") |
| Weight | 30g (0.07 lb) |
