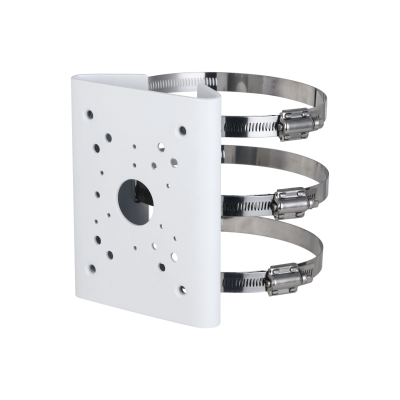

Dahua - DH-PFA5500 - Pole Mount Bracket
Part number:
DH-PFA5500
Price:
Pole Mount, Material: Aluminum, Color: White, Dimension: 5.13" x 6.69"x 1.77", Weight: 1.31Kg
Features:
- Built of SECC and SUS304 material.
- Simple, elegant and convenient to use.
- Supports different types of cameras and can bear heavy weights.
- The enhanced buckle makes the pole bracket tighter and firmer.
| Specifications | |
Structure | |
Product Material | SECC, SUS304 |
Packaging Dimensions | 237.0 mm × 164.0 mm × 191.0 mm (9.33" × 6.46" × 7.52") (L × W × H) |
Product Dimensions | 130.4 mm × 170.0 mm × 45.0 mm (5.13" × 6.69" × 1.77") (L × W × H) |
Net Weight | 1.31 kg (2.89 lb) |
Gross Weight | 1.57 kg (3.46 lb) |
Load Bearing | 15.0 kg (33.07 lb) |
Installation | Pole Mount |
Pole Diameter | Φ80 mm–150 mm (Φ3.15"–5.91") |
Applicable Model | Please see "Camera Accessories Selection" |
Appearance Color | White |
Environment | |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | < 90% (RH) |
Storage Temperature | –40 °C to +80 °C (–40 °F to +176 °F) |
Storage Humidity | 10%–90% (RH) |
