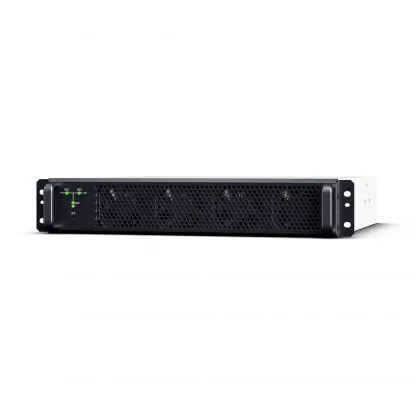

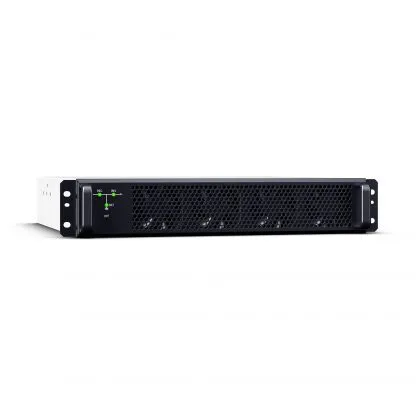

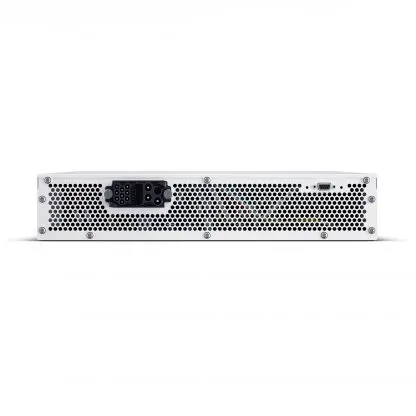

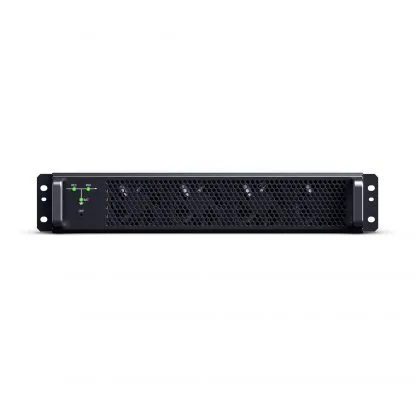

CyberPower 3-Phase Modular UPS SM010KAPMA Power Modules are ultra-robust units capable of handling brief overcurrents of up to 150%. Indicator lights show status of each Power Module and the high-density design puts 10KVA of power in just 2U of space. Includes a One-Year Limited Warranty. For CyberPower 3-Phase Modular UPS Smart App Online Series models SM020KAMFA, SM040KAMFA.
Product Features:
Double-Conversion Topology
Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
Sine Wave Output
Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.
Generator Compatible
Ensures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
Converter Mode
Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.
One-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within one year of your 3-Phase Modular UPS installation. See warranty for details.
General
| Energy Saving | Online ECO Mode Efficiency >97.5% |
| UPS Topology | Online Double Conversion |
Battery
| Boost Charge Voltage | 2.4 VDC/Cell, Constant Current and Constant Voltage Charge Mode |
| Float Charge Voltage | 2.25 VDC/Cell |
| Hot Swappable | Yes |
Input
| Input Frequency Range | 40 Hz – 70 Hz |
| Input Power Factor | 0.99 |
| Phase | 3 Phase |
Output
| Output Frequency | 50/60 Hz (auto-sensing/configurable) |
| Output Power Factor | 1 |
| Overload Protection | 110% Load for 10 min 125% Load for 1 min 150% Load for 30 sec >150% Load for 200 ms |
| VA | 10000 VA |
| Watts | 10000 W |
Management & Communications
| LED Indicators | Rectifier Battery Mode Bypass Mode Inverter Load Status |
Physical
| Color | Silver/Black |
| Form Factor | Modular |
| Material of Construction | Metal |
| Mounting Hardware | No |
| Rack Height | 2U |
Dimensions
| Physical Dimensions – (WxHxD) (cm) | 43.69 x 8.38 x 58.93 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.2 x 3.30 x 23.20 (in) |
| Physical Dimensions – (WxHxD) (mm) | 437 x 84 x 589 (mm) |
| Physical Weight (kg) | 16.42 |
| Physical Weight (lb) | 36.20 |
Dimensions – Power Module
| Shipping – Weight (kg) | 19.5 |
| Shipping – Weight (lb) | 43 |
| Shipping Dimensions – (WxHxD) (cm) | 57.15 x 22.56 x 72.09 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 22.5 x 8.88 x 28.38 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 571.5 x 225.55 x 720.85 (mm) |
Environmental
| Audible noise at 1m from surface of unit | 56 dBA |
| Maximum Air Exchange | 4.5 m3 /min |
| Online Thermal Dissipation | 2797.83 BTU/hr |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Elevation Note | At ≤1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Temperature Note | Battery life is halved for every 10°C increase above 20°C |
| Storage Battery Temperature Note | Optimum battery storage between -15°C and 20°C |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | -4 – 158 °F (-20 – 70 °C) |
Compatibility
| UPS Models | SM020KAMFA, SM040KAMFA |
Certifications
| Environmental | RoHS Compliant |
| Safety | cTUVus UL1778, CSA C22.2 No. 107.3-14 CFR 47 FCC Part 15, Subpart B, Class A IEC62040-2 |
Warranty
| Product Warranty | 1 Year Limited Warranty |
