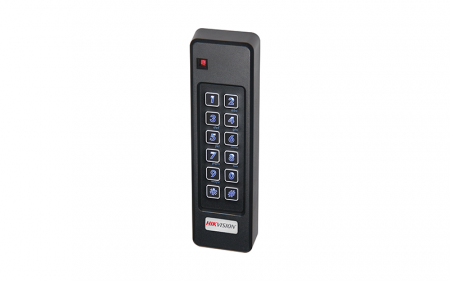

Hikvision - DS-K170HPK - Prox Reader Keypad Weigand
Part number:
DS-K170HPK
Price:
The Pyramid Proximity Series from Hikvision sets the electronic security benchmark for 125-kHz proximity readers, cards, and tags. Based upon proven contactless digital radio frequency identification (RFID) technology, Pyramid readers interact with a wide range of electronic access control systems.
Features:
- Independently Tested and Certified to Conform to UL Standard 294
- Wiegand Interface
- Mullion Mount for Metal Doors, Window Frames, and Flat Surfaces
- Up to 5 inches (126 mm) 125 kHz Reading Frequency
| DS-K170HPK | |
| System Parameters | |
| Technology | Proximity |
| Reading Frequency | 125 kHz |
| Reading Range | Up to 5 inches (126 mm) |
| Interface | Wiegand 26 |
| Keypad Output | Wiegand |
| LED | Four-state standard (red, green, amber, and off) |
| IP Code | IP67 |
| Power Supply | 5 to 16 VDC |
| Working Current | 70 mA typical, 110 mA peak @ 12 VDC |
| Cabling | 24 AWG minimum, multi-conductor stranded with an overall foil shield |
| Operating Temperature | -40° to 149° F (-40° to +65° C) |
| Color Options | Black snap-on cover included standard |
| Audio Tone | Beeper included standard |
| Indoor and Outdoor Installation | Electronics sealed in weather- and tamper-resistant epoxy potting |
