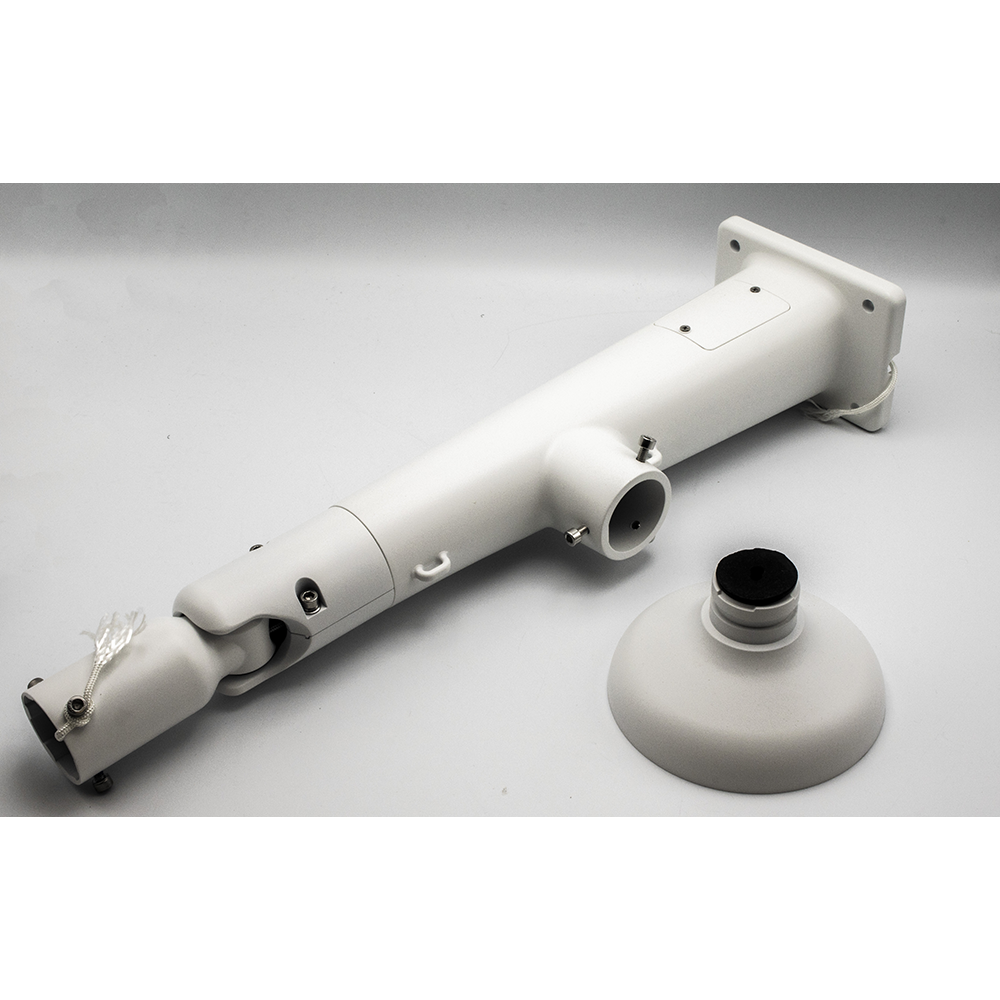

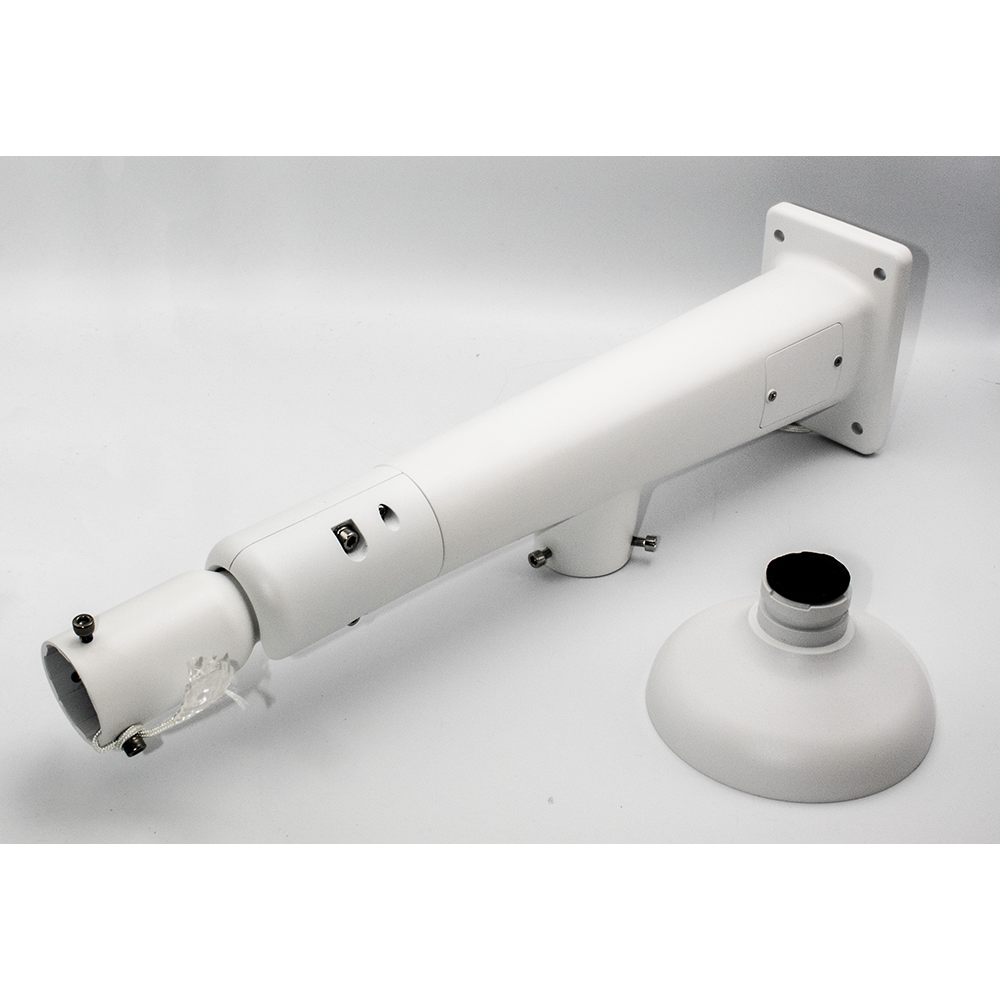

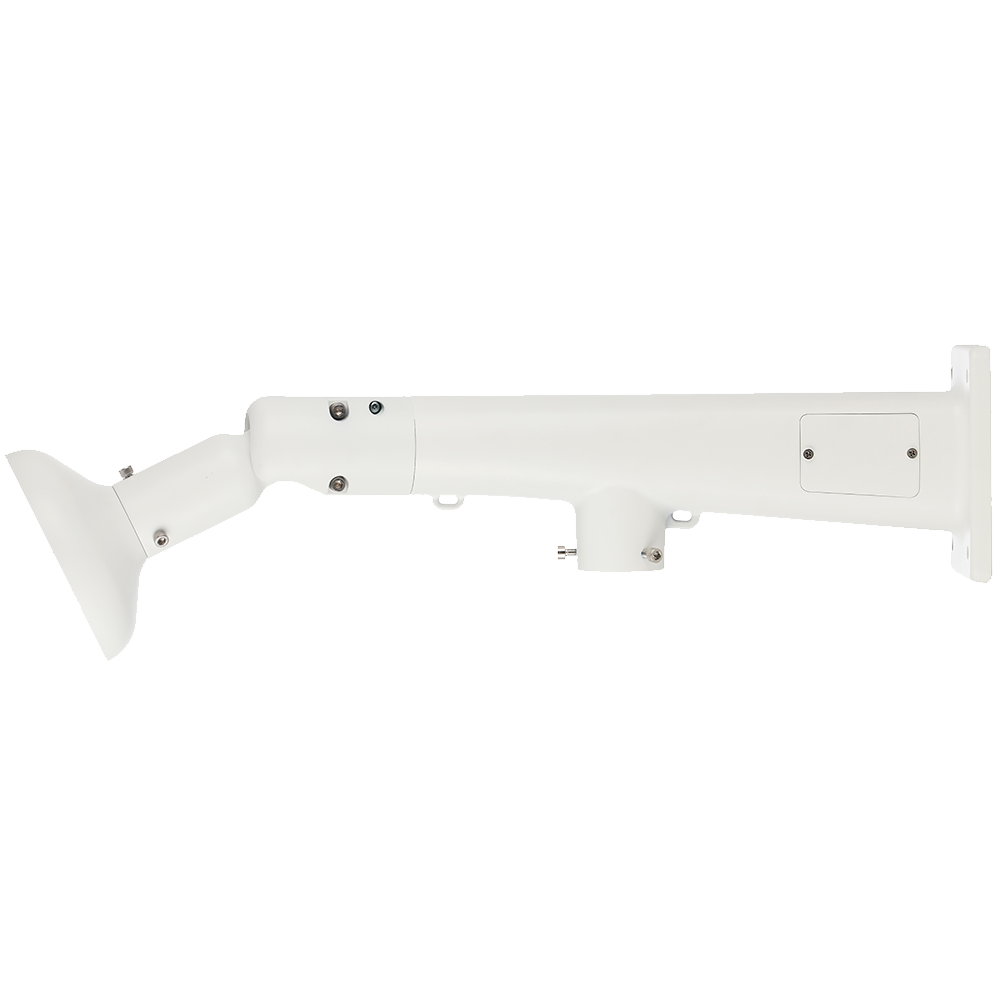

Dahua - PFB410W - Fisheye – PTZ Integrated Wall Mount Bracket
Part number:
PFB410W
Price:
Fisheye - PTZ Integrated Wall Mount Bracket
Features:
- Aluminum Construction
- Supports Linkage between Fisheye and PTZ Cameras
- Multi-dimensional Adjustments to support Omni-directional Viewing Angles
- Safety Tether Attached for Secure and Reliable Installation
- Maintenance Hatch to Aid Cable Routing
| Technical Specifications | |
| Material | Aluminum |
| Color | White |
| Dimensions (W x H x D) | |
| Rotation Angle: 0° | 555.0 mm x 236.90 mm x ø154.90 mm (21.80 in. x 9.30 in. x ø6.10 in.) |
| Rotation Angle: 88° | 651.60 mm x 164.80 mm x ø154.90 mm (25.70 in. x 6.50 in. x ø6.10 in.) |
| Weight | 2.80 kg (6.17 lb) |
| Load Bearing Capacity | |
| Fisheye | 1.0 kg (2.20 lb) |
| PTZ | 7.0 kg (15.43 lb) |
| Operating Temperature | –40° C to 60° C (–40° F to 140° F) |
| Humidity | 0% to 90% RH |
| Applicable Camera Models | |
| Fisheye Cameras | NK8BR4 N68BR4V |
| PTZ Cameras | 6AE Series Cameras |
