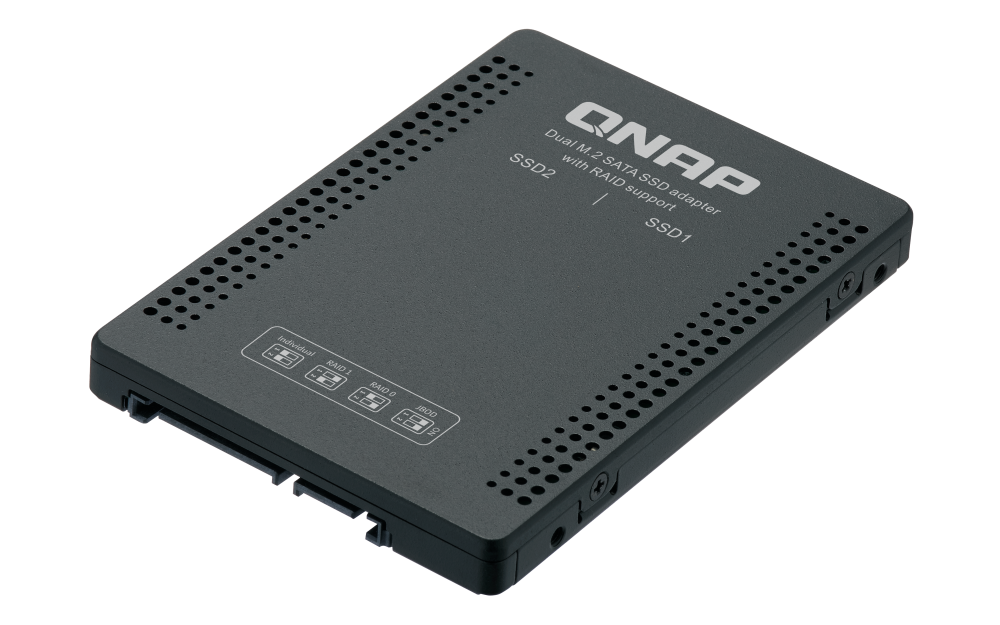

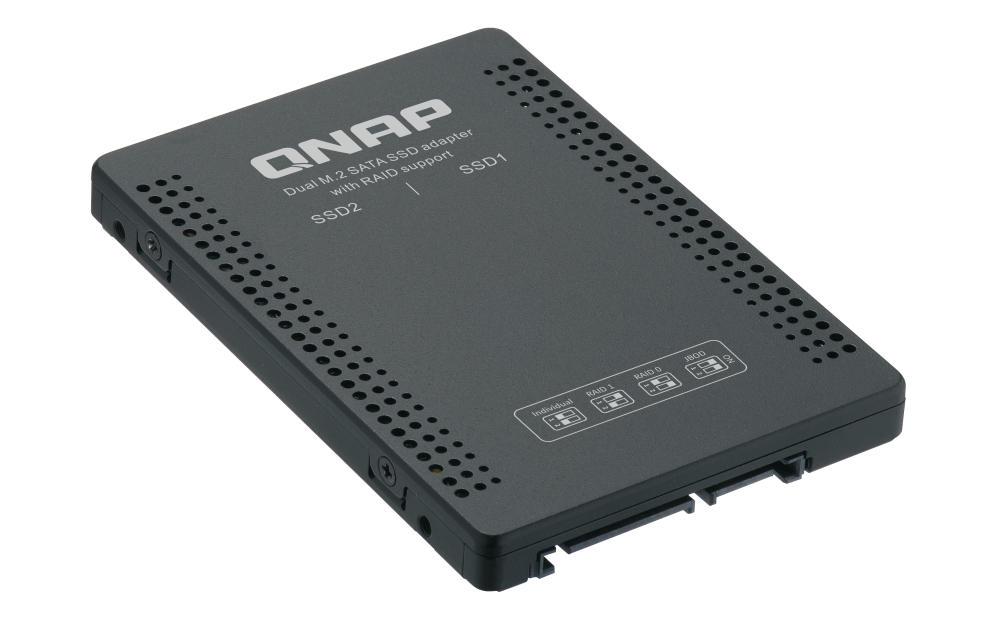

QNAP - QDA-A2MAR - Dual M.2 2280 SATA to 2.5" SATA drive converter/adapter, hardware RAID 0/1, JBOD, Individual disk modes
Part number:
QDA-A2MAR
Price:
The QDA-A2MAR can accommodate two M.2 SATA SSDs within a single 2.5-inch SATA drive bay. No software driver is required for the QDA-A2MAR, and it can be installed in a PC/workstation (Windows®, Linux®) or QNAP NAS to flexibly add high-performance M.2 SATA SSDs with RAID configurations to meet various storage needs.
Features:

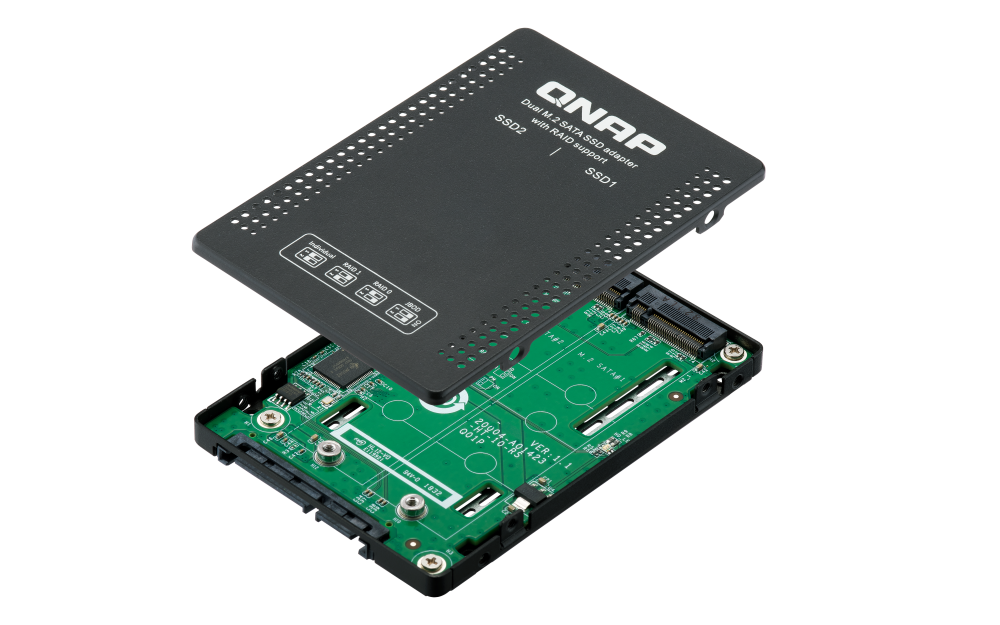

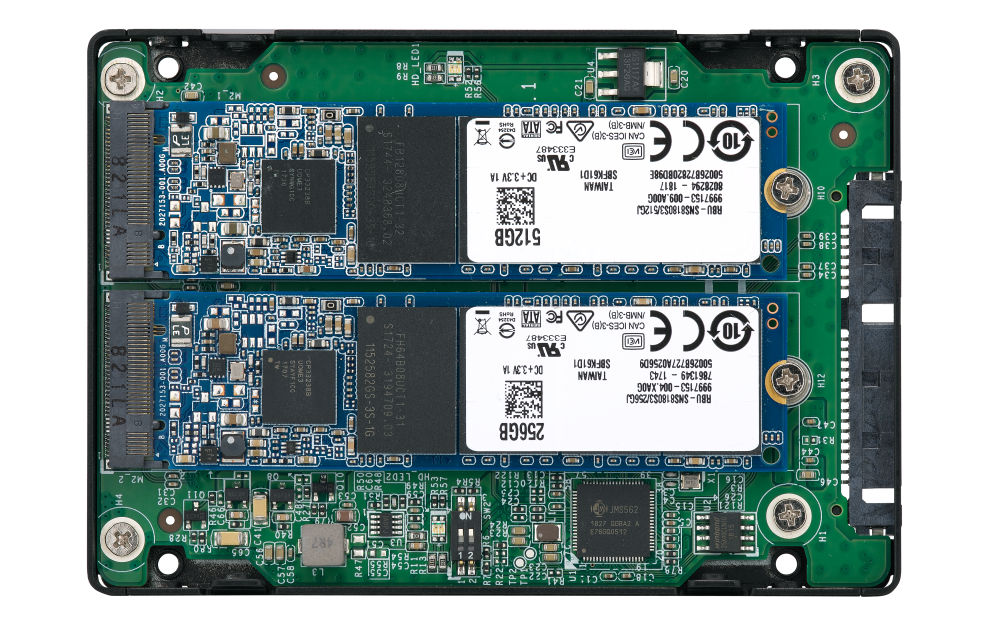

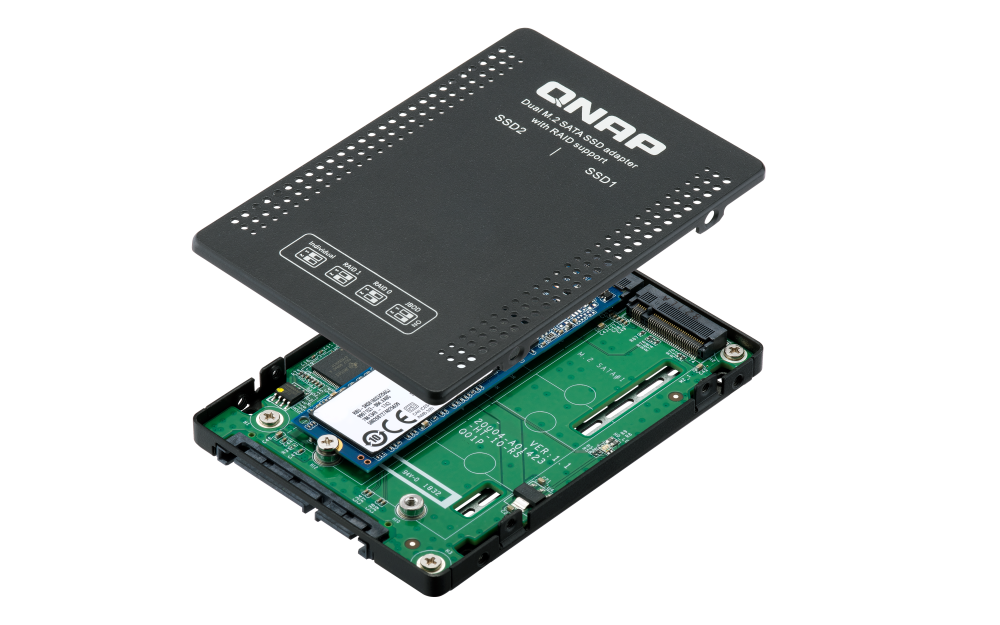

- Use two M.2 2280 SATA SSDs in a single 2.5-inch drive bay. (M.2 SSDs sold separately)
- Up to 6 Gb/s file transfer speeds. Can be the primary bootable device containing for PCs.

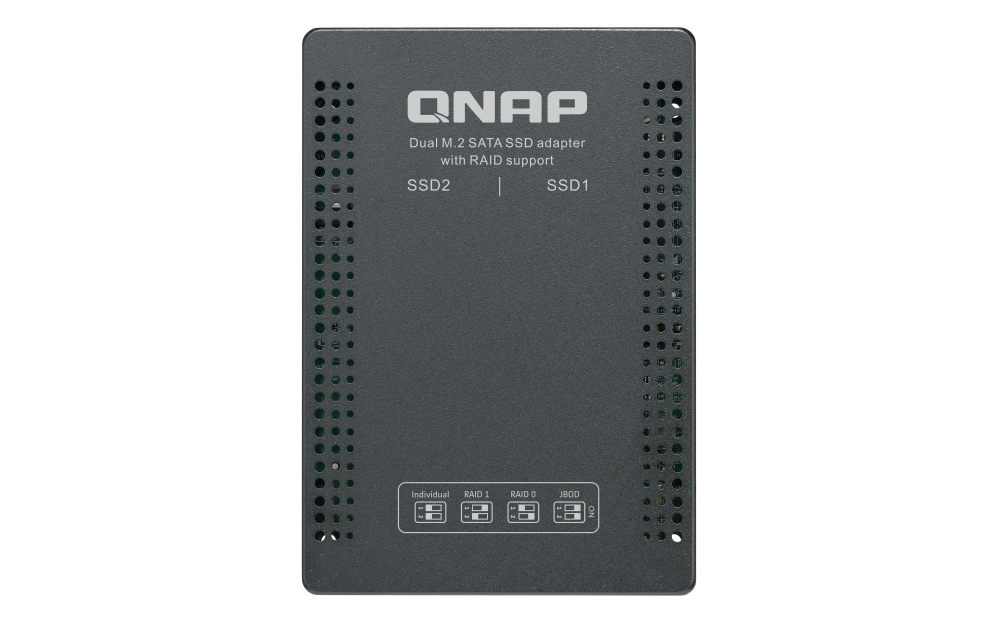

- Choose a hardware RAID group with the disk mode switch.
Hardware Spec
| Supported Dirves | 2 x M.2 2280 SATA SSD (B Key) |
|---|---|
| Host Interface | SATA 6Gbps |
| Supported Operating Systems | 1. QTS 4.4.1 (or later) 2. Windows: Windows 7, 8.1, 10, Windows Server 2012 R2 3. Ubuntu |
| Dimensions | 100.5 × 69.9 × 9.5 mm |
| Weight | 0.1 kg |
| RAID Support | RAID 0, 1 |
| Note | The connected drive may not reach its optimal performance due to protocol translation and some overhead. All the drive data will be cleared upon drive initialization or RAID mode switching with the QDA-A2MAR. Ensure that all data is backed up beforehand. Window and Linux PC supports all four modes mentioned above. QTS does not support Individual mode. It is recommended that only drives with identical model numbers and capacities are used to create a RAID 0/1 group because the total storage space will be equal to the size of the smallest drive. The SATA controller of the PC must support port multipliers to recognize two drives in the Individual mode configuration. Consult your system provider and install the latest drivers for your SATA controller. Installing a QNAP disk adapter in another QNAP disk adapter is not supported. (e.g. QDA-A2MAR cannot be installed in the QDA-A2AR.) TR-002/TR-004 RAID expansion enclosures do not support QDA-A2AR/QDA-A2MAR. Computer SATA ports or the USB to SATA adapters/cables that do not support 12V output (+12V_SATA) are not compatible with the QDA-A2MAR. Please consult your computer vendor for the SATA port voltage output before purchasing the QDA-A2MAR. QTS identifies the drives of QDA-A2MAR as a single volume. Installing at least two QDA-A2MAR in the NAS is required to use Qtier function. |
Software Spec
| Minimum operating system requirements |
|
| Software Utility Features |
|
Name
Description
Size
Downloads
File
Datasheet
0.2mb
