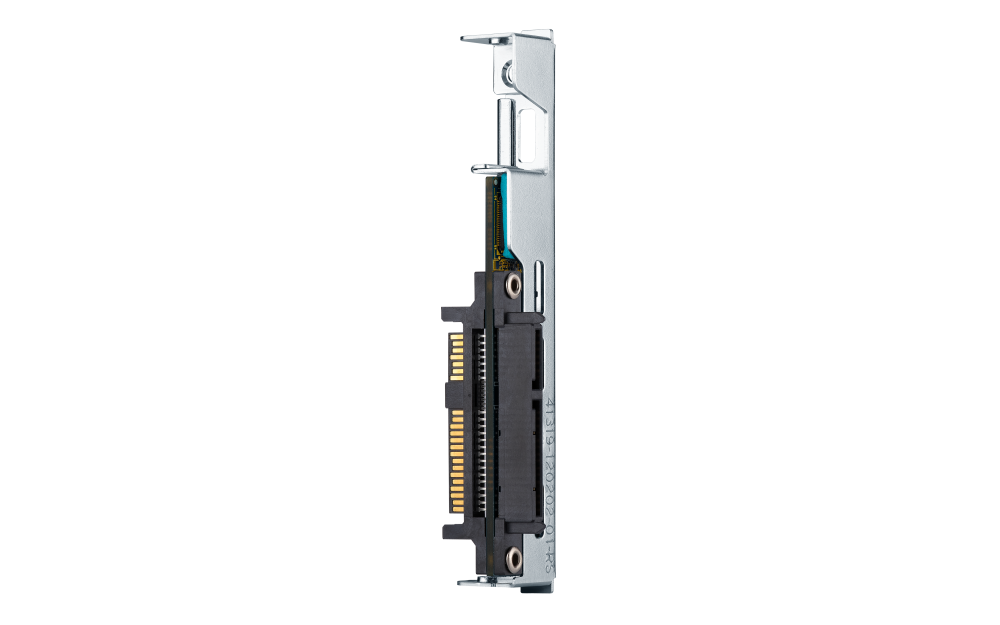

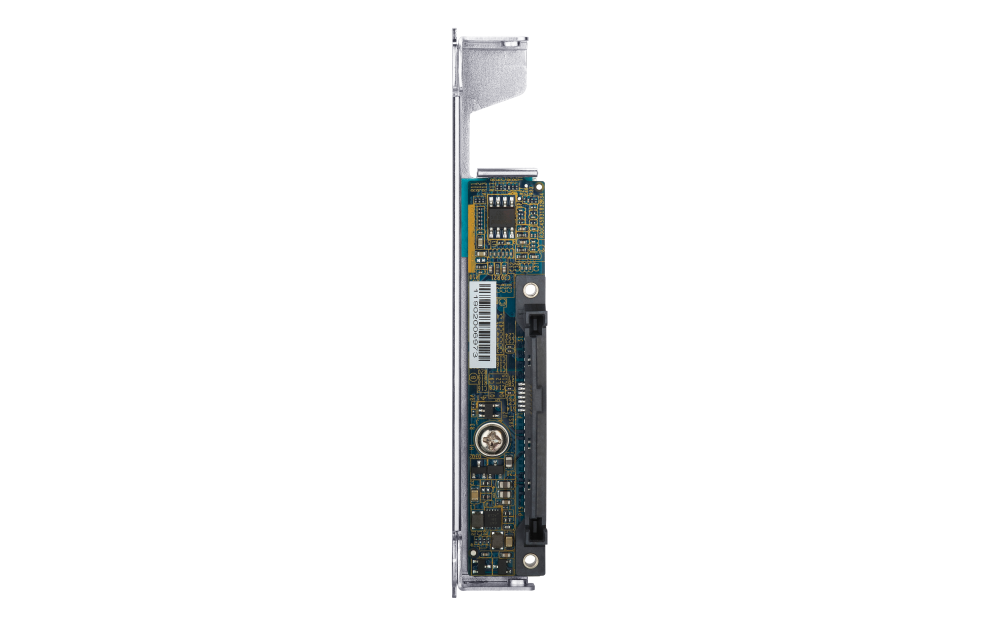

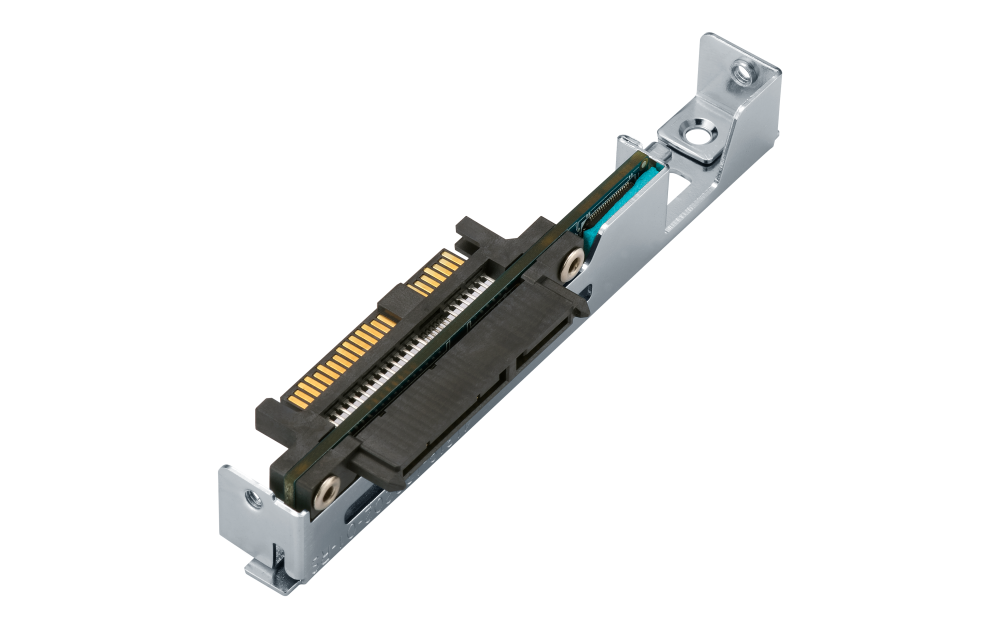

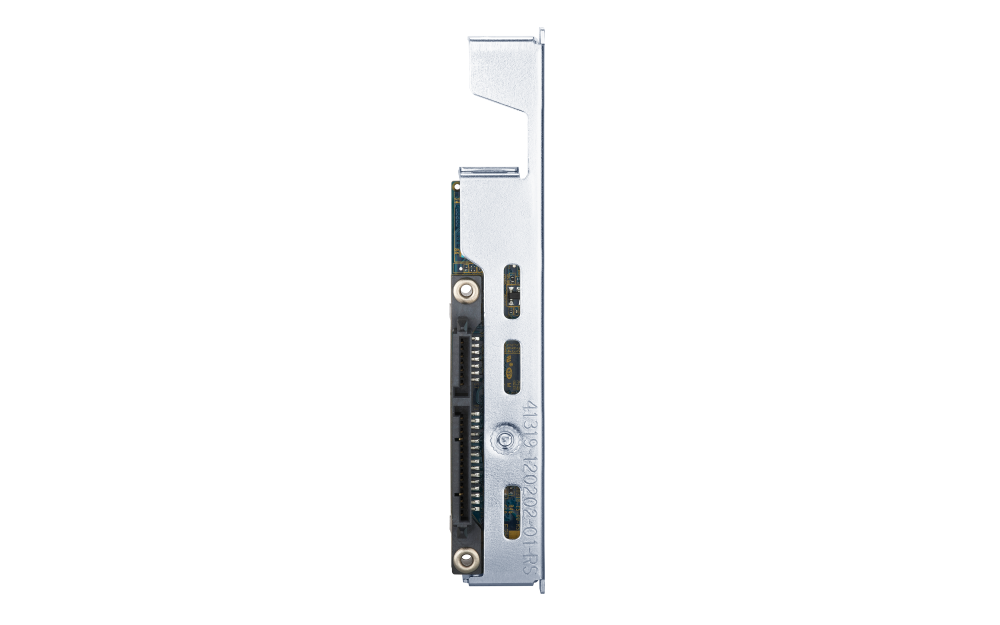

QNAP - QDA-SA-4PCS - 6Gb/s SAS to SATA converter/adapter for QNAP dual-controller Enterprise ZFS NAS 3.5" drive trays, 4 adapters in a package
Part number:
QDA-SA-4PCS
Price:
The QDA-SA adapter is designed for QNAP Enterprise ZFS NAS and allows the use of a SATA 6Gbps drive in a 3.5-inch SAS drive bay - providing the ability to expand storage capacity by using cost-effective SATA drives.
Features:
- Supports 3.5-inch or 2.5-inch SATA drives.
- Up to 6 Gb/s file transfer speeds.
- The installed SATA drive can share SAS dual-port advantages for higher reliability.
Hardware Spec
| Supported Dirves | 1 x 3.5"/2.5" SATA 6Gbps HDD/SSD |
|---|---|
| Host Interface | SAS 6Gbps |
| Supported Operating Systems | QES 2.0.0 (or later) for dual controller NAS or JBOD |
| Dimensions | 104.8 × 21.8 × 17.3 mm |
| Weight | 0.11 kg |
| Note | QDA-SA adapters are sold in a pack of four. The connected drive may not reach its optimal performance due to protocol translation and some overhead. QDA-SA does not support SSD TRIM and the drive S.M.A.R.T. feature is not supported on non-QES operating system. |
