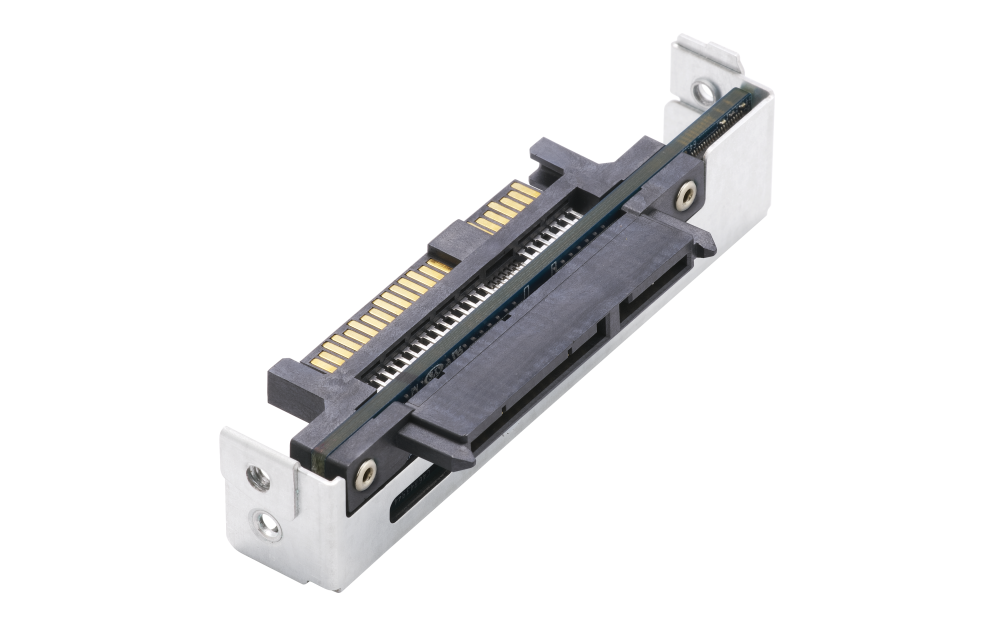

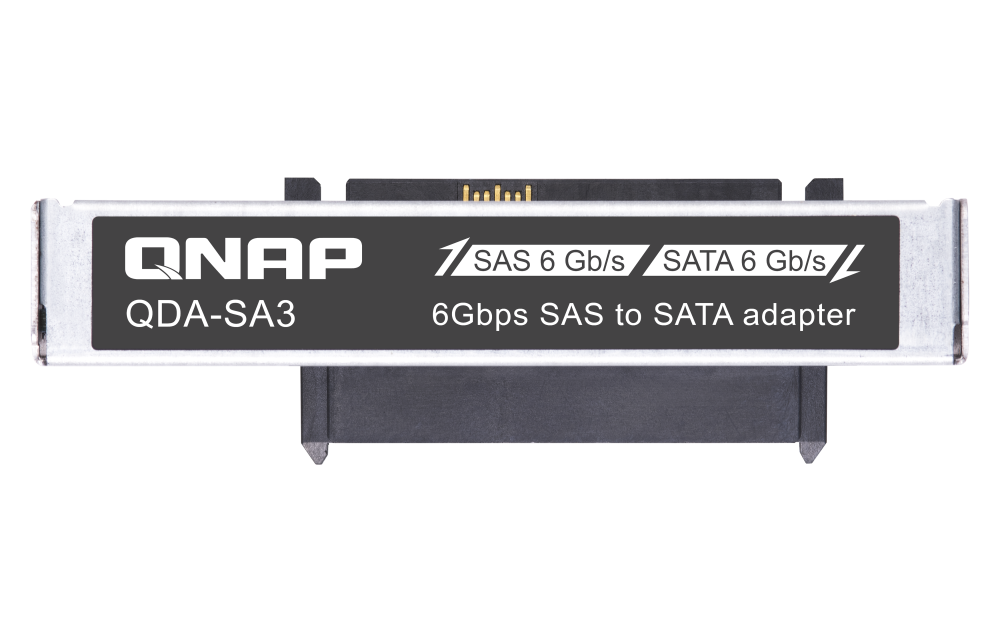

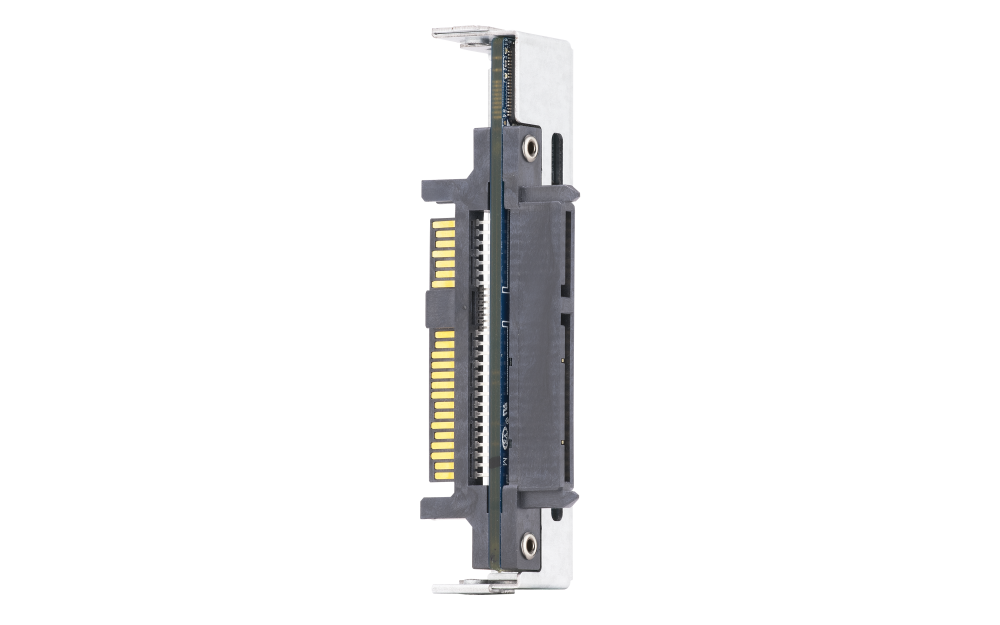

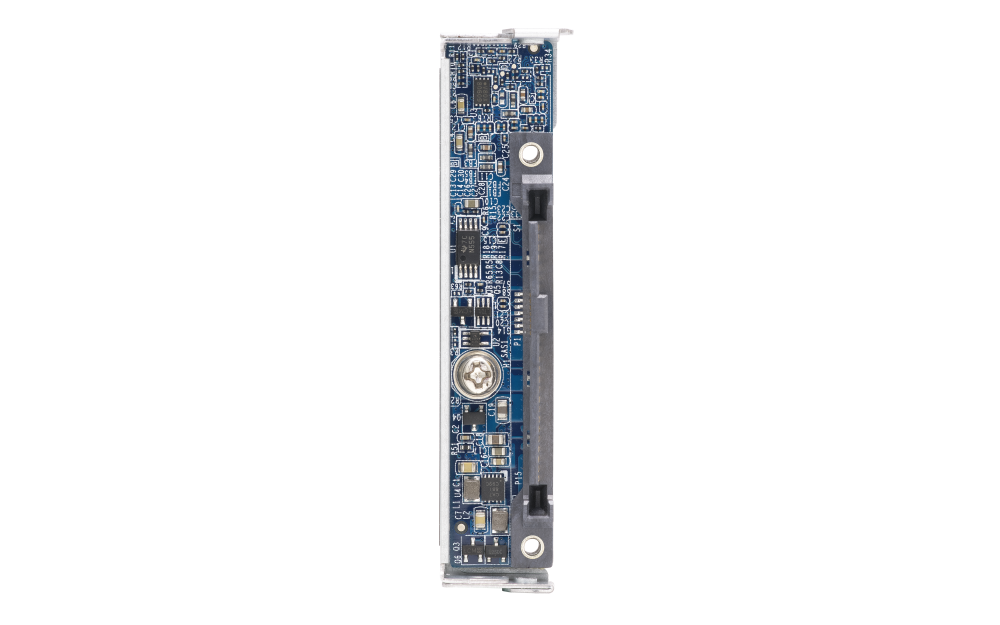

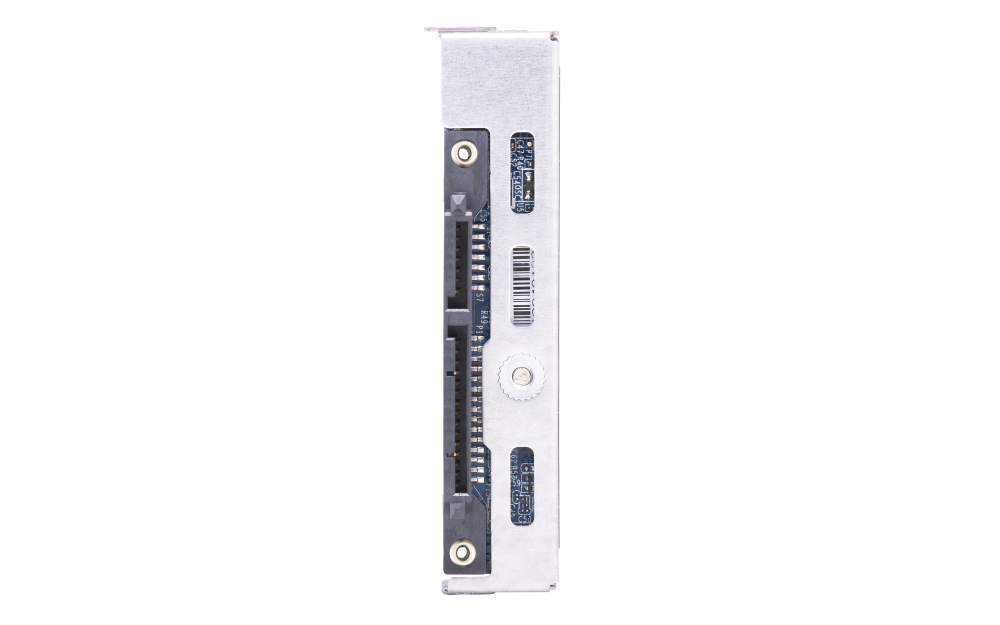

QNAP - QDA-SA3-4PCS - 6 Gbps 2.5-inch SAS to SATA drive adapter in 2.5-inch drive form factor for dual controller servers
Part number:
QDA-SA3-4PCS
Price:
The QDA-SA3 adapter is designed for QNAP’s dual-controller all-flash array Enterprise ZFS NAS (ES2486dc) and allows the usage of a SATA 6Gbps drive in a 2.5-inch SAS 12Gbps/6Gbps drive bay — providing the ability to expand storage capacity with cost-effective SATA drives.
Features:
- Supports 2.5-inch SATA HDD/SSD.
- Up to 6Gb/s file transfer speeds.
- The installed SATA drive can share SAS dual-port advantages for higher reliability.
Hardware Spec
| Supported Dirves | 1 x 2.5-inch SATA 6Gbps SSD |
|---|---|
| Host Interface | SAS 6Gbps |
| Supported Operating Systems | QES 2.1.0 (or later) for dual controller NAS or JBOD |
| Dimensions | 69.87 × 21.78 × 14.5 mm |
| Weight | 0.02 kg |
| Note | QDA-SA3 adapters are sold in a pack of four. The connected drive may not reach its optimal performance due to protocol translation and some overhead. QDA-SA3 does not support SSD TRIM and the drive S.M.A.R.T. feature is not supported on non-QES operating system. |
Name
Description
Size
Downloads
File
Datasheet
0.1mb
