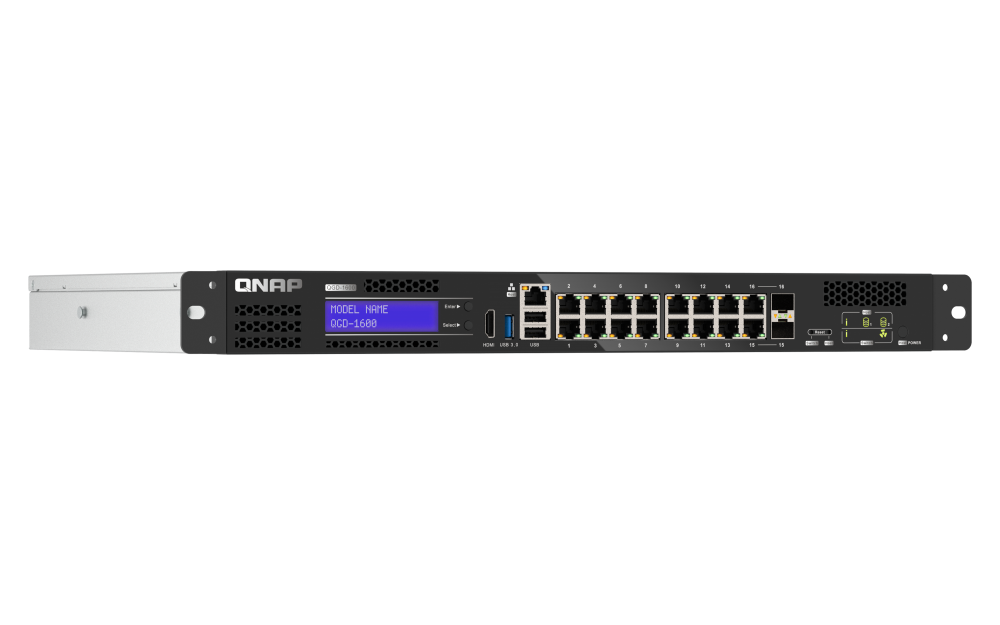

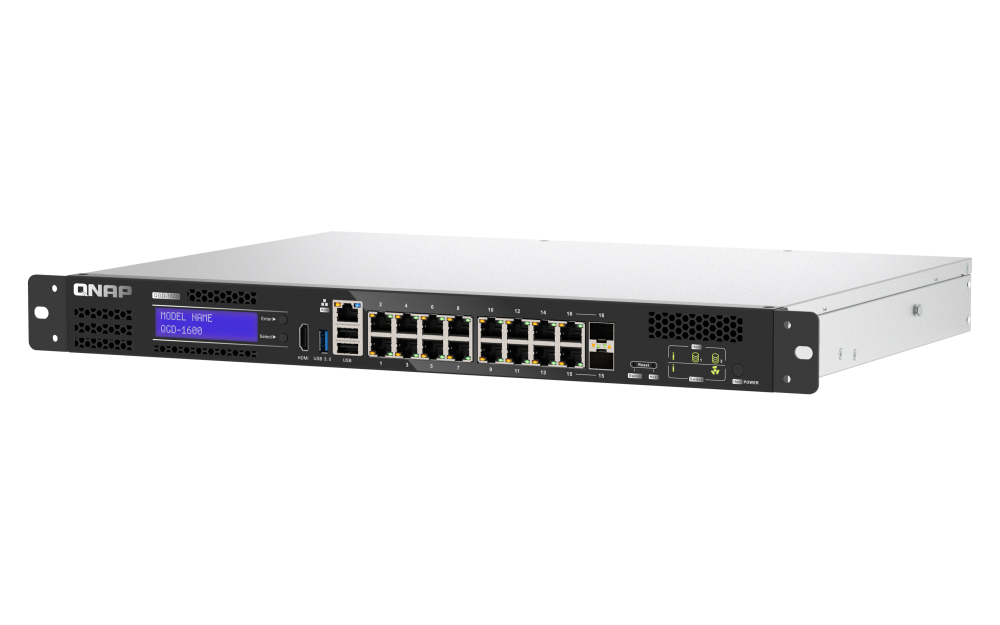

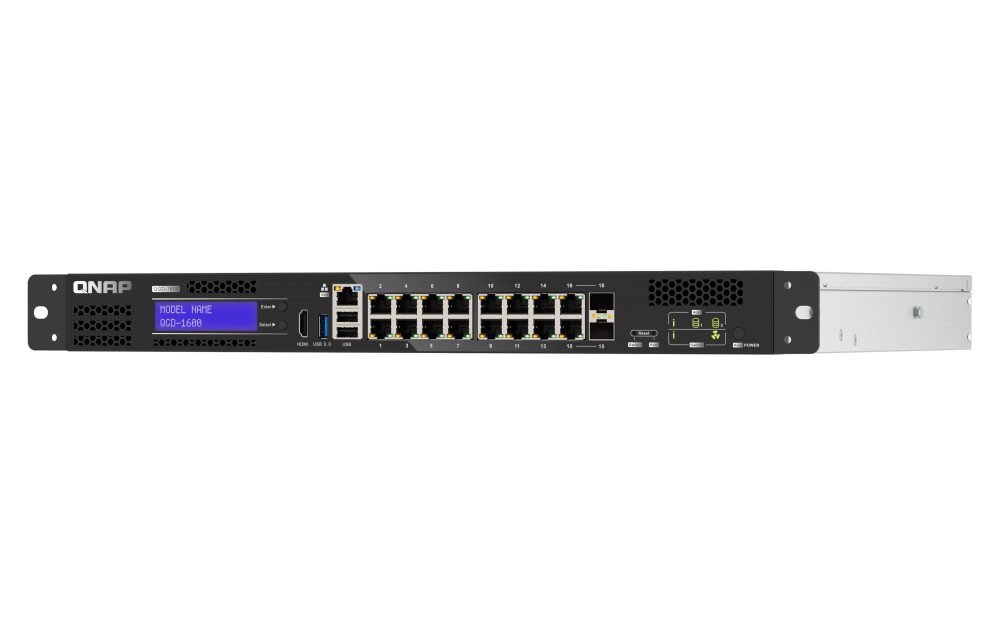

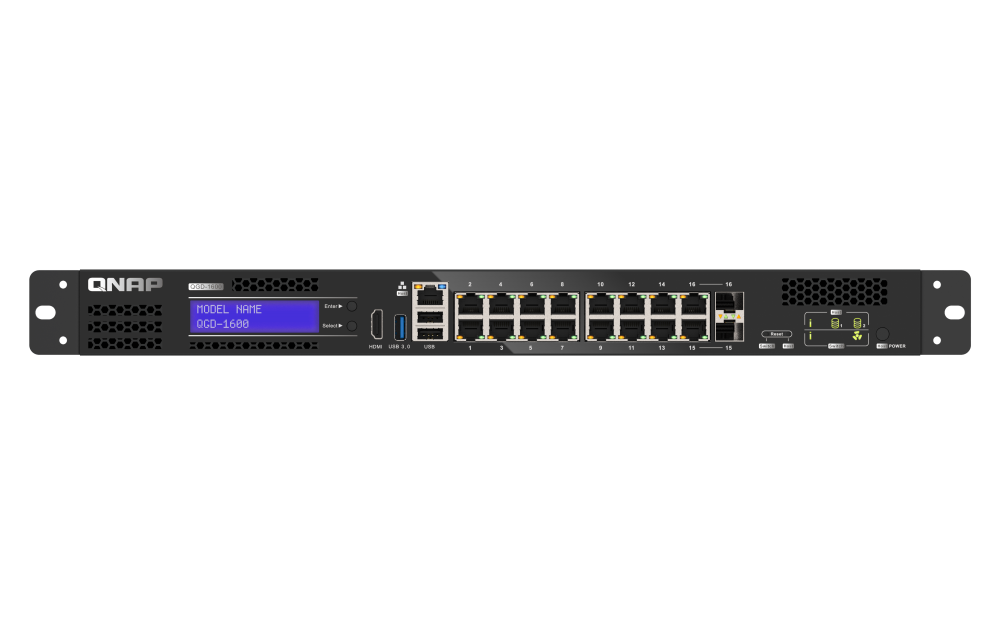

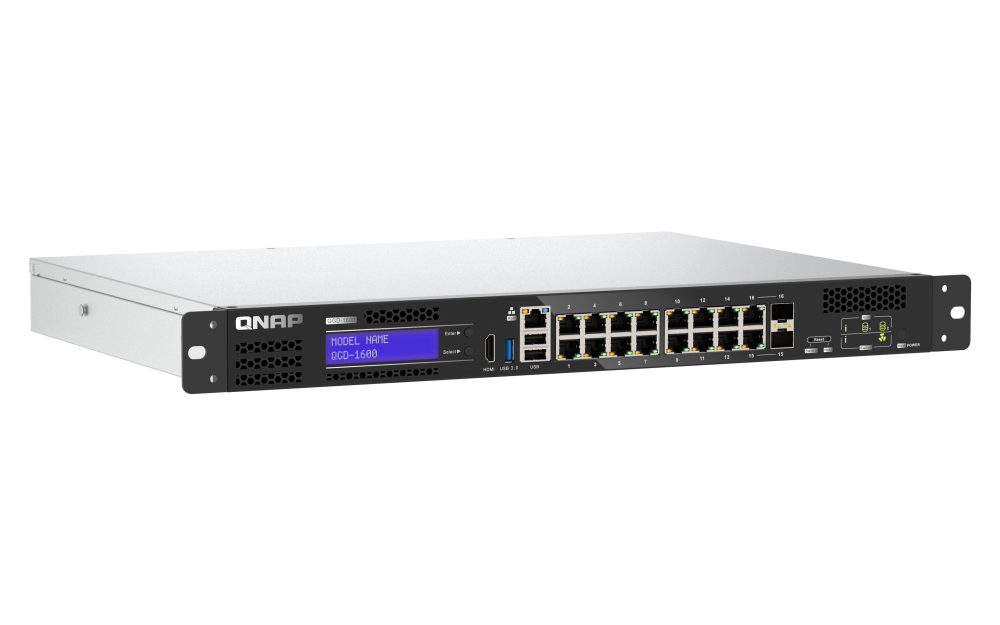

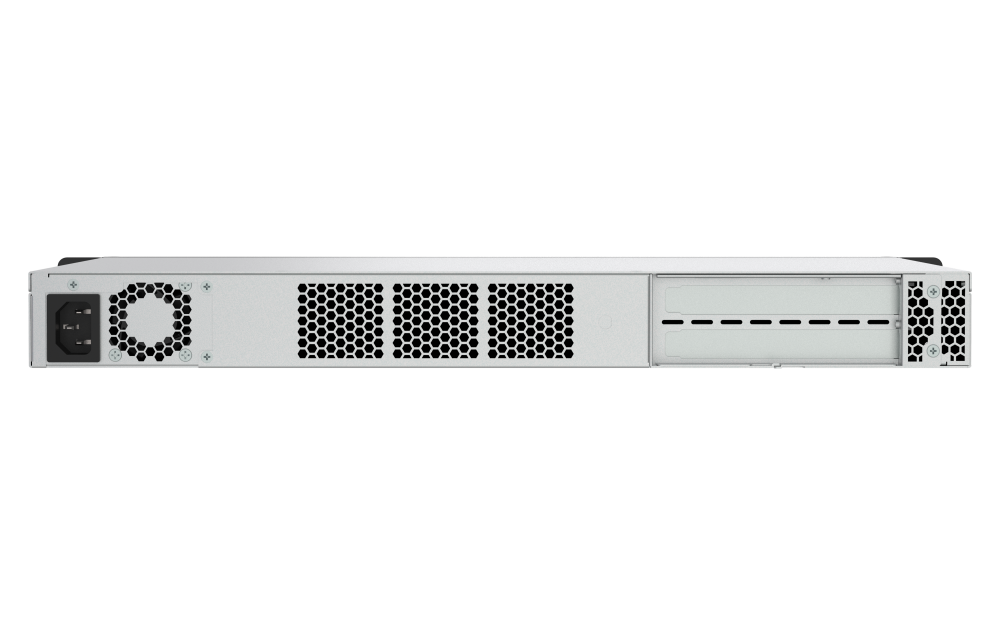

QNAP - QGD-1600-4G-US - QNAP 16-port 1GbE Switch with 2 RJ45 and SFP+ Combo port with Intel Celeron J411 Processor and 4GB DDR4 RAM
QNAP - QGD-1600-4G-US - QNAP 16-port 1GbE Switch with 2 RJ45 and SFP+ Combo port with Intel Celeron J411 Processor and 4GB DDR4 RAM
Part number:
QGD-1600-4G-US
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

QNAP’s QGD-1600 is the world’s first managed switch that supports Virtual Machines (VMs). It features multiple Gigabit ports for highly flexible networking environment deployment. With a dual-CPU design, the QGD-1600 provides both Layer 2 management functions for VM and QTS applications. The QGD-1600 also features Software-Defined Networking (SDN), enabling it to function as a NAS, NVR, router and firewall for IP surveillance, network security and storage expansion applications. Therefore, the QGD series offers SMBs a cost-optimized and centrally managed LAN deployment solution.



Features:



  • Gigabit RJ45/SFP ports

    Multiple Gigabit and RJ45/SFP combo ports provide computers, LAN switches and NAS with higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.

  • Layer 2 network

    QGD-1600 provides comprehensive Layer 2 management features, such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN for IT administrators to efficiently control the network bandwidth and enhance security via the user-friendly switch management web interface.

  • User-friendly management interface

    QuNetSwitch offers a user-friendly web interface to help IT administrators efficiently control Layer 2 networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and pored devices at a glance, making central management of network devices intuitive and easy.

  • Two SATA drive bays

    Supports up to two SATA drives.

  • Flexible PCIe expansion

    PCIe expandability allows for 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.1 Gen 2 (10Gbps) cards, or Wireless Adapters.

  • Virtualization applications

    Host containerized applications and virtual machines with various operating systems. Flexibly install virtual router, firewall, or wireless LAN management software for various networking management applications.

Hardware Spec



Management TypeWeb Managed
Number of Ports16
1GbE (RJ45)14
1GbE SFP/RJ45 Combo Ports2
PCIe SlotSlot 1: PCIe Gen2 (x2)
Slot 2: PCIe Gen2 (x2)
USB 3.2 Gen 1 port1
USB 2.0 port2
Management Port1 x 1GbE
USB 3.2 Gen 2 (10Gbps) PortOptional via PCIe adapter
HDMI Output1
Power Supply DescriptionInternal Power Supply Unit
Max. Power Consumption100W
Input Power TypeAC
Input Voltage Range100-240VAC, 50/60 Hz
MAC Address Table8K
Total Non-Blocking Throughput16Gbps
Switching Capacity32Gbps
Management InterfaceWeb
Energy Efficient Ethernet (IEEE 802.3az complaint)Yes
FanSystem: 2 x 4 cm (12V DC)
Supported StandardsIEEE 802.3u 100Tx Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z 1000Base-X
IEEE 802.3x Full-duplex flow control
IEEE 802.1q Virtual LANs (VLAN)
IEEE 802.1p QoS Protocol for Traffic Prioritization
Form FactorRackmount
LED IndicatorsPer Port: Link/Activity/Speed
Per System: Warning/Fan
LCD ManagementYes
ButtonsDevice PSU power button
Host power button
Host reset button(load default)
Switch reset button
Dimensions (HxWxD)47.2 × 436.2 × 326.2 mm
Weight (Net)4.41 kg
Weight (Gross)5.56 kg
Operating Temperature0°C to 40°C (32°F to 104°F)
Relative Humidity5% to 95% non-condensing, wet bulb: 27˚C (80.6˚F)
CertificationsCE, FCC, VCCI, BSMI RCM, CCC
Electromagnetic ComplianceCLASS A, UL62368
Jumbo Frames9k
QTS Built-inYes
CPUIntel Celeron J4115 quad-core 1.8 GHz processor (burst up to 2.5 GHz)
CPU Architecture64-bit x86
Internal Network Bandwidth2 x 1GbE
Graphics ProcessorsIntel® HD Graphics 600
Floating Point UnitYes
Encryption Engine(AES-NI)
System Memory4 GB (1 x 4 GB)
Maximum Memory8 GB
Memory Slot2 x SODIMM DDR4
Flash Memory4GB (Dual boot OS protection)
Drive Bays2 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility2.5-inch bays:
2.5-inch solid-state drives
2.5-inch hard disk drives
Hot-swappableYes
M.2 SSD SlotsOptional via PCIe adapter
SSD Cache Acceleration SupportYes
File System: Internal Hard DriveEXT4
File System: External Hard DriveEXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license)
Warranty2 Years



Software Spec



Standards Compliance
  1. IEEE 802.3 10Tx Ethernet
  2. IEEE 802.3u 100Tx Fast Ethernet
  3. IEEE 802.3ab 1000Base-T
  4. IEEE 802.3ad Link aggregation for parallel links
  5. IEEE 802.3z 1000Base-X
  6. IEEE 802.3bz 2.5GBase-T (QGD-1602P Only)
  7. IEEE 802.3bz 5GBase-T (QGD-1602P Only)
  8. IEEE 802.3x Flow Control for Full Duplex
  9. IEEE 802.1q Virtual LANs (VLAN)
  10. IEEE 802.1p QoS Protocol for Traffic Prioritization
  11. IEEE 802.3af/802.3at/802.3bt
Web Administration
  1. HTTP/HTTPS Connection
  2. Multi-window, multitasking system management
  3. Smart toolbar and dashboard for system status display
Network Detection & Response
  1. Risk Assessment
  2. Risk Management
  3. Threat Analysis
  4. Customizable Risk Inform Policy
  5. Cyber-attacks trap
  6. Exclusions & Port monitoring rule
  7. Event notification
  8. Log sender
Network Quarantine
  1. Risk IP Management and Quarantine
  2. Customized Protection Rules
Network Manager
  1. Manager Port Configuration (DHCP/Static IP/PPPoE)
  2. Jumbo frame support
  3. VLAN support
QuNetSwitch
  1. MAC History
    • Device scan
    • Wake on LAN (WoL)
  2. Port Management
    • Port Status
    • Port Statistics
    • Port Configuration (State/Speed/Flow Control/Frame Size)
  3. Power over Ethernet (PoE)
    • Power Consumption
    • Power Configuration (PoE Mode/Priority)
    • PoE Schedule
  4. VLAN
    • IEEE 802.1Q Tag-based VLAN
  5. Link Aggregation
    • LACP/Static Mode
  6. IGMP Snooping
    • IGMP Snooping Configuration (State
    • IGMP Snooping Statistics
  7. Quality of Service (QoS)
    • QoS Mode (Port-based/VLAN-based)
  8. MAC Address Table
  9. Link Layer Discovery Protocol (LLDP)
  10. Loop Protection
  11. SNMP (v2c/v3)
Storage Space
  1. System Volume
  2. Application Volume
    • RAID Type: RAID 1 (2 Disks)
  3. Disk Information & SMART Information
  4. Disk SMART Test & SMART Test Schedule
  5. Disk bad block scan and recovery
myQNAPcloud
  1. myQNAPmyQNAPcloud Link for remote access without complex router setup
  2. DDNS for free url registration
  3. SSL Certificate for registered url
QuLog Center
  1. Event Log/Access Log
  2. Online Users
  3. Log Entries Setting/Log Retention Time Setting/Log Language Setting
  4. Log Sender/Log Receiver
  5. 23 language support
Notification Center
  1. Notification Queue & History
  2. Notification Sending Method
    • E-mail (Gmail, Yahoo, QQ, Outlook…etc)
    • SMS (Nexmo, Twilio, Clickatell…etc)
    • Instant Messaging (QNAP Bot)
    • Push Service (Qmanager)
  3. Notification Setting Rule
Resource Monitor
  1. System Resources
    • CPU/Memory/Network
  2. Storage Resources
    • Volumes/Status/Storage usage
  3. Processes activity
Security Center
  1. Certificate & Private Key
    • Replace Certificate & Download Certificate
  2. Password Policy
    • Password Strength Rule
    • Password Change Periodical Rule
  3. Anti-tampering for system
  4. Security Checkup
License Center
  1. License on Device
    • License Status/Activate License/Purchase License
  2. Recover License
  3. Software Store
  4. License Manager
System Management
  1. System
    • General Settings
    • Hardware
    • Power
    • System Update
    • Backup/Restore
    • UPS
    • System Status
  2. Privilege
    • Users Management
  3. Services
    • SSH Server
    • SNMP Service (V1/V2/V3)
    • UPnP Discovery Service
    • Bonjor
Helpdesk
  1. Help Request
  2. Remote Support
  3. Diagnostic Tool
Operating SystemQNE ADRA (embedded Linux)
Supported Client Operating Systems
  1. Apple Mac OS 10.7 or later
  2. Linux and UNIX
  3. Microsoft Windows 7, 8, 10, and 11 or later
  4. Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, and 2022 or later
Supported Browsers
  1. Apple Safari 7 or later
  2. Google Chrome
  3. Microsoft Internet Explorer 10 or later
  4. Mozilla Firefox
Supported Languages
  1. Chinese (traditional and simplified), Czech
  2. Danish, Dutch
  3. English
  4. Finnish, French
  5. German, Greek
  6. Hungarian
  7. Italian
  8. Japanese
  9. Korean
  10. Norwegian
  11. Polish, Portuguese (Brazil)
  12. Romanian, Russian
  13. Spanish, Swedish
  14. Thai, and Turkish
Supported File SystemsInternal hard drive (EXT4)
