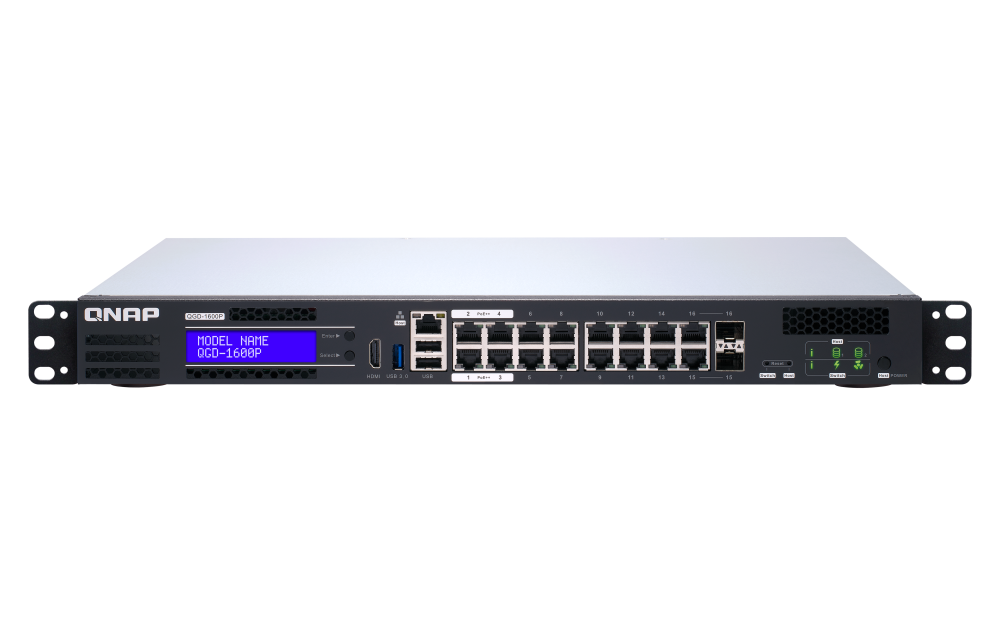

QNAP’s QGD-1600P is the world’s first PoE managed switch that supports Virtual Machines (VMs). It features 4-port 60-watt and 12-port 30-watt Gigabit PoE (with two PoE/SFP Combo ports) for highly flexible networking environment deployment. With a dual-CPU design, the QGD-1600P provides both Layer 2 management functions for VM and QTS applications. The QGD-1600P also features Software-Defined Networking (SDN), enabling it to function as a NAS, NVR, router, firewall and AP controller for IP surveillance, network security, storage expansion, and wireless LAN management applications. Therefore, the Guardian series offers SMBs a cost-optimized and centrally managed LAN deployment solution.
Features:
PoE++/ PoE+
QGD-1600P is compliant with the latest IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards, and offers 4-port 60-watt and 12-port 30-watt Gigabit PoE capability. QGD-1600P can supply a total power budget of 360 watts to meet the demands of high-powered devices (PDs).
Layer 2 network
QGD-1600P provides comprehensive Layer 2 management features, such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN for IT administrators to efficiently control the network bandwidth and enhance security via the user-friendly switch management web interface.
User-friendly management interface
QuNetSwitch offers a user-friendly web interface to help IT administrators efficiently control Layer 2 and PoE networks. Additionally, the overview dashboard and graphical statistics analysis show IT administrators all switch information and powered devices at a glance, making central management of high-power devices intuitive and easy.
Two SATA drive bays
Supports up to two SATA drives.
Flexible PCIe expansion
PCIe expandability allows for 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or Wireless Adapters.
Virtualization applications
Host containerized applications and virtual machines with various operating systems. Flexibly install virtual router, firewall, or wireless LAN management software for various networking management applications.
Hardware Spec
| Management Type | Web Managed |
| Number of Ports | 16 |
| 1GbE (RJ45) | 14 |
| 1GbE SFP/RJ45 Combo Ports | 2 |
| Total PoE Ports | 16 |
| PoE PSE (802.3af, 15.4W) | Ports 1-16 |
| PoE+ PSE (802.3at, 30W) | Ports 1-16 |
| PoE++ PSE (802.3bt, 60W) | Ports 1-4 |
| PoE Power Output | Ports 1-4 (60W), Ports 5-16 (30W) |
| Total PoE Power Budget | 360W |
| PCIe Slot | Slot 1: PCIe Gen2 (x2) Slot 2: PCIe Gen2 (x2) |
| USB 3.2 Gen 1 port | 1 |
| USB 2.0 port | 2 |
| Management Port | 1 x 1GbE |
| USB 3.2 Gen 2 (10Gbps) Port | Optional via PCIe adapter |
| HDMI Output | 1 |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 418W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 8K |
| Total Non-Blocking Throughput | 16Gbps |
| Switching Capacity | 32Gbps |
| Management Interface | Web |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | Yes |
| Fan | System: 2 x 4 cm (12V DC) |
| Supported Standards | IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3z 1000Base-X IEEE 802.3x Full-duplex flow control IEEE 802.3af/at/bt Power-over-Ethernet (PoE) IEEE 802.1q Virtual LANs (VLAN) IEEE 802.1p QoS Protocol for Traffic Prioritization |
| Form Factor | Rackmount |
| LED Indicators | Per Port: Link/Activity/Speed/PoE Per System: Warning/PoE/Fan |
| LCD Management | Yes |
| Buttons | Device PSU power button Host power button Host reset button(load default) Switch reset button |
| Dimensions (HxWxD) | 47.2 × 436.2 × 326.2 mm |
| Weight (Net) | 4.41 kg |
| Weight (Gross) | 5.56 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5% to 95% non-condensing, wet bulb: 27˚C (80.6˚F) |
| Certifications | CE, FCC, VCCI, BSMI RCM, CCC |
| Electromagnetic Compliance | CLASS A, UL62368 |
| Jumbo Frames | 9k |
| QTS Built-in | Yes |
| CPU | Intel Celeron J4115 quad-core 1.8 GHz processor (burst up to 2.5 GHz) |
| CPU Architecture | 64-bit x86 |
| Internal Network Bandwidth | 2 x 1GbE |
| Graphics Processors | Intel® HD Graphics 600 |
| Floating Point Unit | Yes |
| Encryption Engine | (AES-NI) |
| System Memory | 8 GB (2 x 4 GB) |
| Maximum Memory | 8 GB |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bays | 2 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 2.5-inch bays: 2.5-inch solid-state drives 2.5-inch hard disk drives |
| Hot-swappable | Yes |
| M.2 SSD Slots | Optional via PCIe adapter |
| SSD Cache Acceleration Support | Yes |
| File System: Internal Hard Drive | EXT4 |
| File System: External Hard Drive | EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license) |
| Warranty | 2 Years |
Software Spec
| Standards Compliance |
|
| Web Administration |
|
| Network Detection & Response |
|
| Network Quarantine |
|
| Network Manager |
|
| QuNetSwitch |
|
| Storage Space |
|
| myQNAPcloud |
|
| QuLog Center |
|
| Notification Center |
|
| Resource Monitor |
|
| Security Center |
|
| License Center |
|
| System Management |
|
| Helpdesk |
|
| Operating System | QNE ADRA (embedded Linux) |
| Supported Client Operating Systems |
|
| Supported Browsers |
|
| Supported Languages |
|
| Supported File Systems | Internal hard drive (EXT4) |
