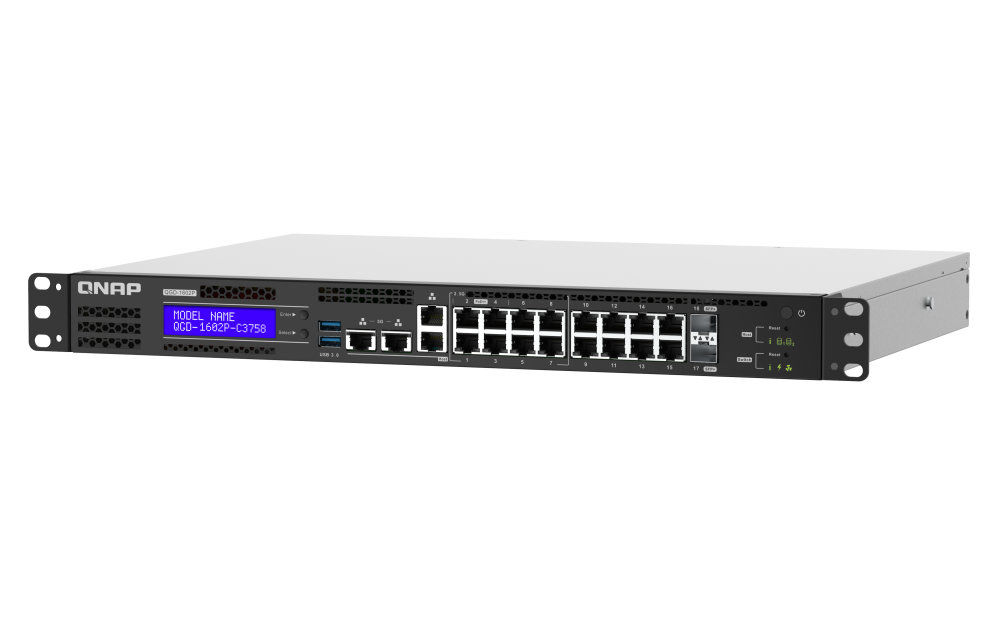

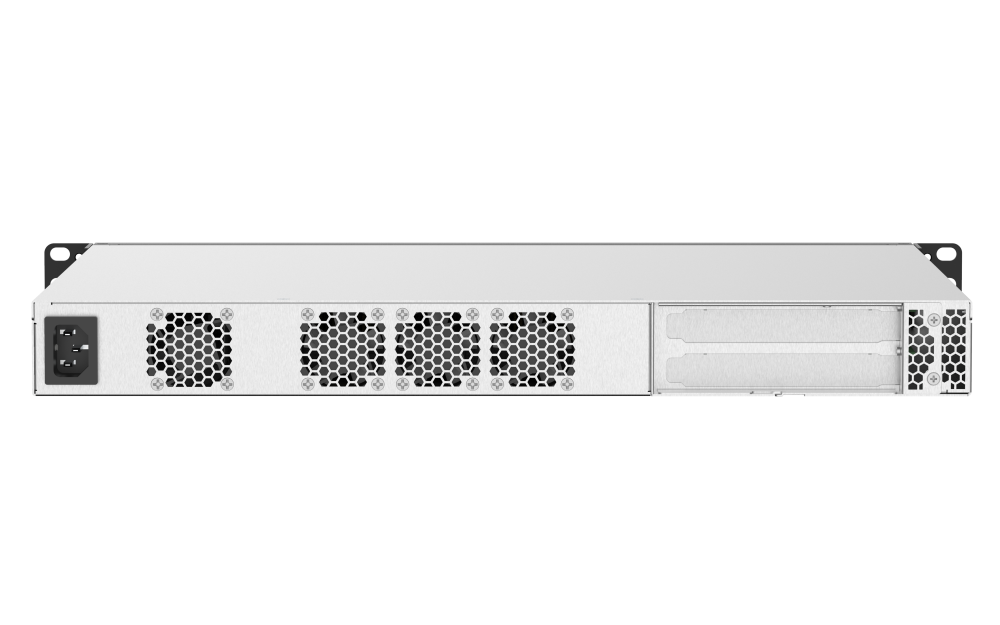

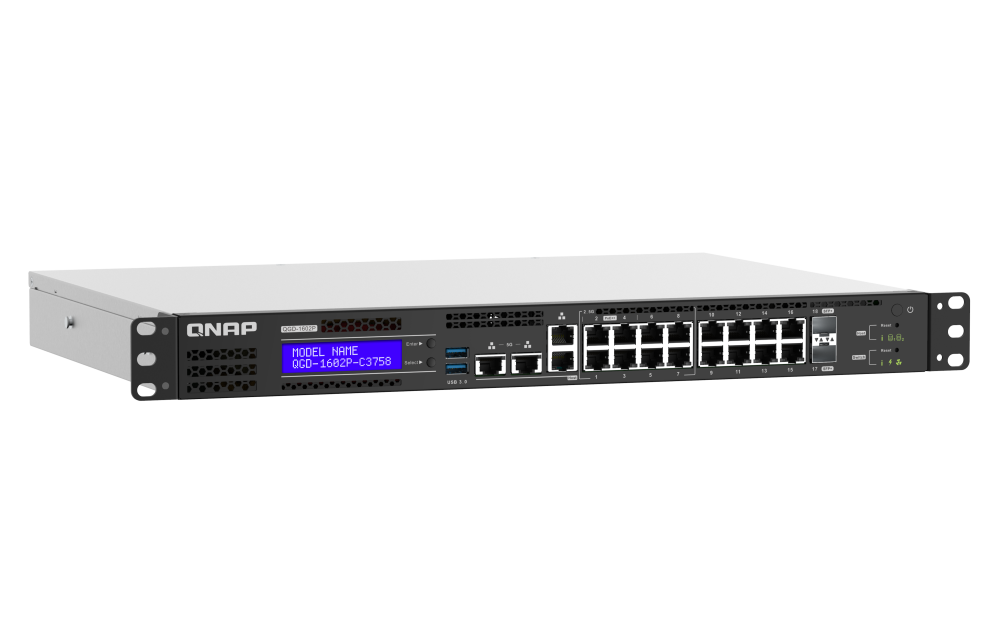

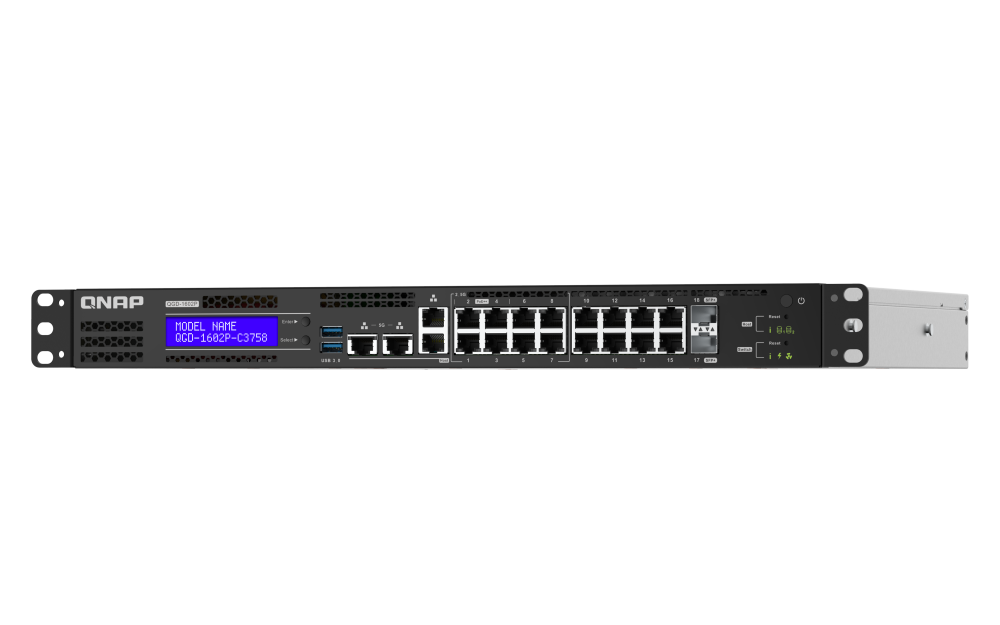

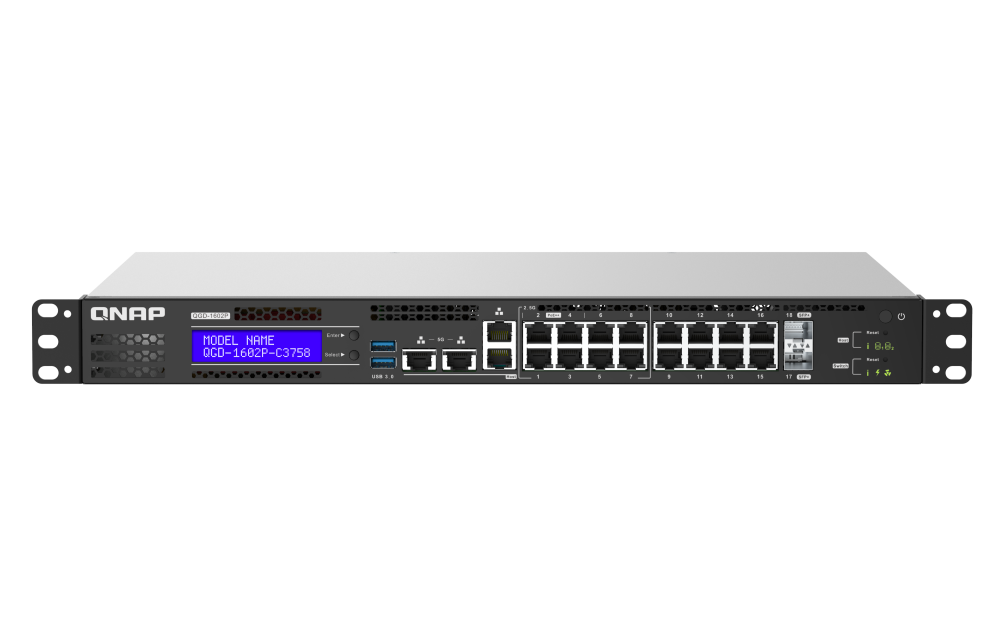

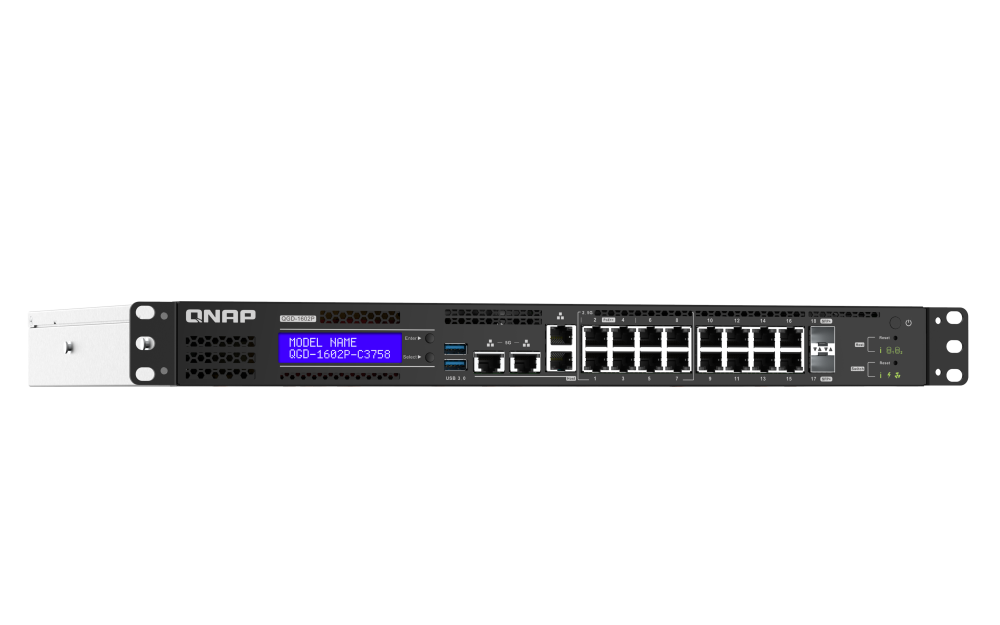

The QNAP QGD-1602P is the world’s first PoE managed switch series that supports Virtual Machines (VMs). Featuring 2.5GbE and 10GbE SFP+ ports and up to 90-watt PoE output, the QGD-1602P allows you to build a high-speed and high-power PoE network infrastructure for Wi-Fi 6 Access Points and Routers. With a dual-CPU design, the QGD-1602P uses Intel Atom multi-core 2.2GHz processors with two SATA drive bays to support VM and QTS applications. The QGD-1602P not only fulfills IP surveillance, network security, wireless AP management, and storage expansion applications, but also integrates QuWAN to form a SD-WAN architecture with other QNAP devices across multiple sites, helping to build a resilient and secure IT infrastructure. With 20GbE internal bandwidth capacity and Intel QuickAssist Technology (Intel QAT), the QGD-1602P achieves the high-performance transmission required for edge computing virtualization and IPsec VPN, and offers SMBs a cost-optimized and centrally managed LAN deployment solution.
Features:
PoE++/PoE+
Compliant with the IEEE 802.3bt PoE++ and IEEE 802.3at PoE+ standards. Offers 4-port 90-watt and 12-port 30-watt Gigabit PoE capabilities. Can supply a total power budget of 380 watts to meet the demands of high-powered devices (PDs) and supports intelligent PoE management functions.
10GbE connectivity
Two 10GbE SFP+ ports provide computers, LAN switches and NAS with higher bandwidth to empower applications like virtualization, 4K video editing and file sharing.
Layer 2 network
Provides comprehensive Layer 2 management features (such as VLAN, LACP, QoS IGMP Snooping, and Wake-on-LAN) with user-friendly network management software. IT staff can efficiently control network bandwidth and enhance security using a web-based management interface.
Dual M.2 PCIe slots
Set up an SSD cache or storage pools to increase file access efficiency.
Flexible PCIe expansion
Two PCIe Gen3 x4 slots allow users to install 10GbE network cards, QM2 dual-port M.2 SSD/10GbE cards, USB 3.2 Gen 2 (10Gbps) cards, or wireless adapters.
Mesh VPN
Host containerized applications and virtual machines with various operating systems. Flexibly install QuWAN, virtual router, firewalls, or wireless LAN management software for various networking management applications.
Hardware Spec
| Management Type | Web Managed |
|---|---|
| Number of Ports | 18 |
| 10GbE SFP+ | 2 10G/1G |
| 2.5GbE (RJ45) | 8 |
| 1GbE (RJ45) | 8 |
| Total PoE Ports | 16 |
| PoE PSE (802.3af, 15.4W) | Ports 1-16 |
| PoE+ PSE (802.3at, 30W) | Ports 1-16 |
| PoE++ PSE (802.3bt, 90W) | Ports 1-4 |
| PoE Power Output | Ports 1-4 (90W), Ports 5-16 (30W) |
| Total PoE Power Budget | 200W |
| PCIe Slot | Slot 1: PCIe Gen3 (x4 slot, x2 speed) Slot 2: PCIe Gen3 (x4 slot, x2 speed) |
| USB 3.2 Gen 1 port | 2 |
| Management Port | 2 x 5GbE ; 2 x 1GbE |
| USB 3.2 Gen 2 (10Gbps) Port | Optional via PCIe adapter |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 280W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 48Gbps |
| Switching Capacity | 96Gbps |
| Management Interface | Web |
| Fan | System: 3 x 4 cm (12V DC) |
| Supported Standards | IEEE 802.3u 100Tx Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet IEEE 802.3an 10GBASE-T 10G Ethernet IEEE 802.3ae 10GBASE-SR IEEE 802.3ae 10GBASE-LR IEEE 802.3z 1000Base-X IEEE 802.3x Full-duplex flow control IEEE 802.3af/at/bt Power-over-Ethernet (PoE) IEEE 802.1q Virtual LANs (VLAN) IEEE 802.1p QoS Protocol for Traffic Prioritization |
| Form Factor | Rackmount |
| LED Indicators | Per Port: Link/Activity/Speed/PoE Per System: Warning/PoE/Fan |
| LCD Management | Yes |
| Buttons | Device PSU power button Host power button Host reset button(load default) Switch reset button |
| Dimensions (HxWxD) | 44.2 × 435.2 × 327.7 mm |
| Weight (Net) | 4.37 kg |
| Weight (Gross) | 5.52 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5% to 95% non-condensing, wet bulb: 27˚C (80.6˚F) |
| Certifications | CE, FCC, VCCI, BSMI RCM |
| Electromagnetic Compliance | CLASS A, UL62368 |
| Jumbo Frames | Yes |
| QTS Built-in | Yes |
| CPU | Intel® Atom® C3558 quad-core 2.2 GHz processor |
| CPU Architecture | 64-bit x86 |
| Intel QAT Support | Yes |
| Internal Network Bandwidth | 2 x 10GbE |
| Floating Point Unit | Yes |
| Encryption Engine | (AES-NI) |
| System Memory | 8 GB (1 x 8 GB) |
| Maximum Memory | 64 GB |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bays | 2 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 2.5-inch bays: 2.5-inch solid-state drives 2.5-inch hard disk drives |
| Hot-swappable | Yes |
| M.2 SSD Slots | 2 (NVMe, PCIe Gen3 x 1) |
| SSD Cache Acceleration Support | Yes |
| File System: Internal Hard Drive | EXT4 |
| File System: External Hard Drive | EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license) |
| Warranty | 2 Years |
Software Spec
| Standards Compliance |
|
| Web Administration |
|
| Network Detection & Response |
|
| Network Quarantine |
|
| Network Manager |
|
| QuNetSwitch |
|
| Storage Space |
|
| myQNAPcloud |
|
| QuLog Center |
|
| Notification Center |
|
| Resource Monitor |
|
| Security Center |
|
| License Center |
|
| System Management |
|
| Helpdesk |
|
| Operating System | QNE ADRA (embedded Linux) |
| Supported Client Operating Systems |
|
| Supported Browsers |
|
| Supported Languages |
|
| Supported File Systems | Internal hard drive (EXT4) |
