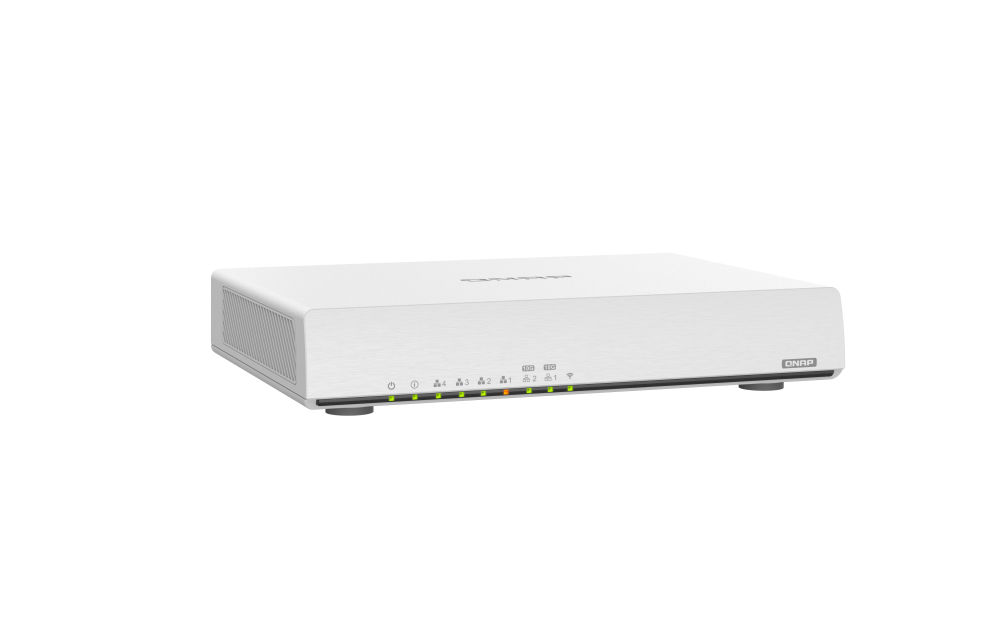

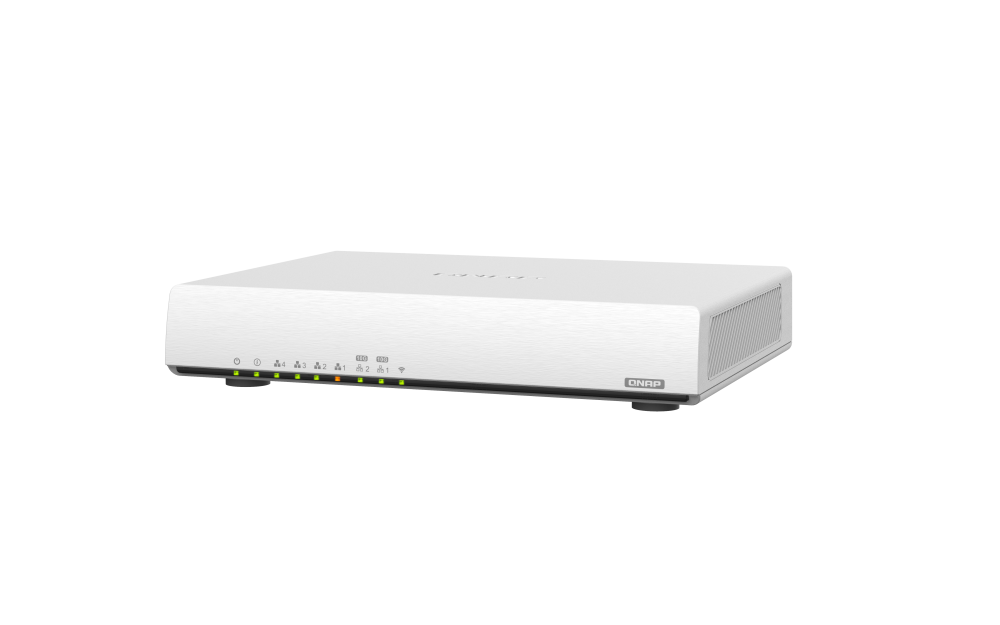

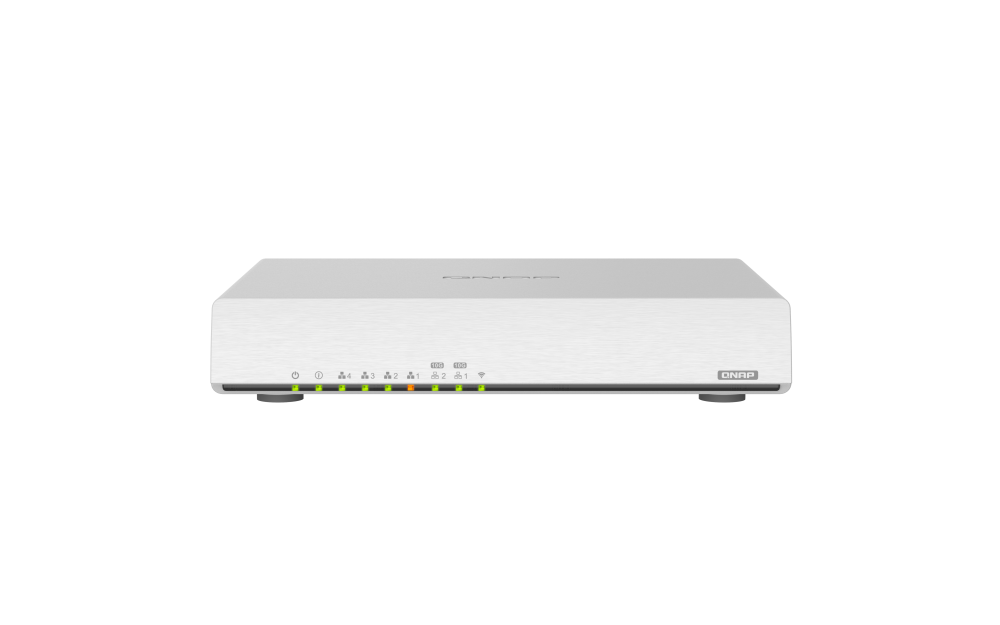

QNAP - QHora-301W-US - QNAP QHora 301W: Dual 10G Wifi 6 AX3600 Fanless SD-WAN Router
QNAP - QHora-301W-US - QNAP QHora 301W: Dual 10G Wifi 6 AX3600 Fanless SD-WAN Router
Part number:
QHora-301W-US
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

To embrace the new normal of remote working, businesses must deploy both a remote VPN that is quickly accessible by multi-location users, and a high-speed in-premises solution covering wired and wireless connections. The QHora-301W supports high-speed Wi-Fi 6 and 10GbE connections, while also providing an enterprise-grade SD-WAN VPN to allow multi-site VPN deployment via the cloud. Combined with a budget-friendly price, the QHora-301W is a solid foundation for building a next-generation network.



Features:



  • Mesh VPN

    QuWAN SD-WAN technology automatically establishes a secure mesh VPN with QNAP devices at multiple sites.

  • Wi-Fi 6

    Supports Wi-Fi 6 dual-band 802.11ax (2.4GHz & 5GHz), delivering up to 3600Mb/s transfer speeds - 1.38x faster than Wi-Fi 5 – and supporting 4x more concurrent Wi-Fi clients!

  • NBASE-T Ethernet

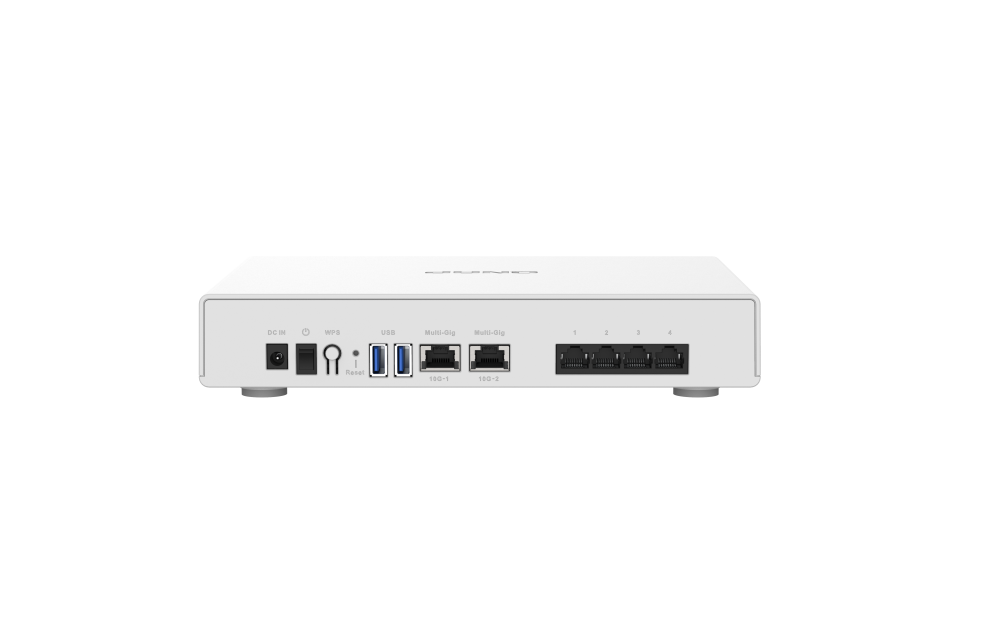

    Two 10GbE ports and four Gigabit ports for flexible LAN and WAN deployment.

  • Dual-band 2.4GHz/5GHz

    Eight antennas provide a perfect wireless pattern view and supports Wi-Fi 6 for high-coverage signals.

  • Six SSIDs

    Supports up to six SSID groups for different VLAN settings.

  • Automatic device search

    Compared with conventional routers with complicated IP settings, QHora-301W supports Automatic Device Search in WAN/LAN.

Hardware Spec



Number of Ethernet Ports6
10GbE BASE-T (RJ45)2 x 10GBASE-T (10G/5G/2.5G/1G/100M)
1GbE (RJ45)4
CPUQualcomm IPQ8072A Hawkeye 2 Quad-core 2.2 GHz 64-bit CPU
Memory1GB
Flash Memory4GB eMMC
Wireless Antenna8 Internal Antennas
Wireless Standard802.11a/b/g/n/ac/ax
Wireless Speed RatingAX3600
Wireless Speed 2.4 GHz2.4G (1182Mbps): 4x4 (40MHz)
Wireless Speed 5 GHz5G (2475Mbps): 4x4 (80MHz), 2x2 (160MHz)
Frequency Band 2.4 GHzYes, dual band
Frequency Band 5 GHZYes, dual band
Wireless Bandwidth20/40/80/160 MHz
Transmit Output PowerDepends on country code
Wireless Antenna Type8 Internal 5dBi Antennas
Antenna Gain 2.4 GHz4.5dBi
Antenna Gain 5 GHz5.2dBi
Transmission Power24dBm
Wi-Fi 6 (802.11ax)Yes
Wi-Fi 5 (802.11ac)Yes
USB 3.2 Gen 1 port

2

Only for connecting USB dongle storage for FTP service on the router

ButtonPower, WPS, Reset
Power12V DC
Power consumption24W
Dimensions250×180×48 mm
Weight1.9kg
Packing weight2.2kg
Operating Temperature0°C ~ +40°C
Operating Humidity5% to 95% non-condensing
CertificationsJATE / CE / FCC / BSMI / NCC / IC / SRRC / CCC / VCCI / RCM
QNAP SD-WAN solution, QuWANYes




Software Spec



Standards Compliance
  1. IEEE 802.3 Ethernet
  2. IEEE 802.3u 100BASE-T
  3. IEEE 802.3ab 1000BASE-T
  4. IEEE 802.3bz 2.5G/5GBase-T
  5. IEEE 802.3an 10G BASE-T
  6. IEEE 802.1Q VLAN Tagging
  7. IEEE 802.3x Full-Duplex Flow Control



System Status and Management
  1. Device connection status
  2. Device health status
    • System uptime
    • CPU temperature
    • Firmware version detect
  3. Connected Devices
  4. WAN status overview
    • Link up / Link down



Wired Network Management
  1. Customer defined WAN/LAN interface setting for each physical port
  2. Physical interface setting status
  3. WAN/LAN configuration
  4. VLAN configuration
  5. Bridge (port group) configuration
  6. Network port connection status
  7. IEEE 802.1Q virtual LAN (VLAN)
  8. IPv4 / IPv6 routing management
    • Routing table
    • Static table
  9. DDNS
  10. DHCP table



Security
  1. Protocol-based firewall (TCP, UDP, ICMP, TCP+UDP)
  2. Firewall rules based on domain names and IP addresses
  3. Port forwarding and Network Address Translation (NAT)
  4. Support FTP ALG, PPTP ALG and SIP ALG
  5. DMZ



VPN
  1. Secure remote access with L2TP, WireGuard, OpenVPN and QBelt (QNAP proprietary) protocol
  2. Client IP pool configuration
  3. VPN user management
    • User status for QBelt / L2TP / OpenVPN / WireGuard
    • User settings for QBelt / L2TP / OpenVPN / WireGuard
  4. Connection logs
  5. Secure remote access as VPN client with OpenVPN protocol



Access Control
  1. Parental control
  2. Domain Name System (DNS) filtering and content filtering
System Setting
  1. Event logs
  2. Restart, Reset, Backup, Audio Alert
  3. Local account, QNAP ID, Remote management
  4. Diagnostics network status
  5. USB Settings: FTP Server, Device User, USB usage condition



QuWAN SD-WAN Service
  1. Auto multi-site VPN
  2. QuWAN QVPN management
  3. Traffic monitoring using QuWAN Orchestrator
  4. Quality of Service
  5. Edge devices monitor
Performance
  1. 50,000 concurrent sessions
  2. 160 Mbps QBelt VPN performance(multiple tunnels)
  3. 324 Mbps QuWAN performance
  4. Max 1000 QBelt connections support(Need managed through QuWAN)

* Actual performance may vary depending on network conditions and activated applications
