QNAP - QHora-321-US - QHora-322: 2.5 High Speed QuWAN VPN Router, 6 x 2.5 GbE Port
QNAP - QHora-321-US - QHora-322: 2.5 High Speed QuWAN VPN Router, 6 x 2.5 GbE Port
Part number:
QHora-321-US
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

The QHora-321 enables high-speed connection with six 2.5GbE ports, while also providing enterprise-grade Mesh VPN networking. You can achieve multi-site LAN development via the cloud through QuWAN Orchestrator, with full software-controlled routing to build a next-generation network. It is strongly recommended to pair QHora-321 with a QNAP NAS for businesses to perform secure remote backup: By using the Hybrid Backup Sync app through QuWAN, you can transfer files and snapshot files between multiple NAS through a secure encrypted network. For enhanced security, you can also connect your NAS (QNAP or otherwise) directly behind the QHora-321 to prevent attacks.



Features:



  • Highly flexible software routing configuration

    Each network port and network segment are independent by default. Flexibly set network segments based on your organization or environment needs.

  • WAN/LAN Deployment

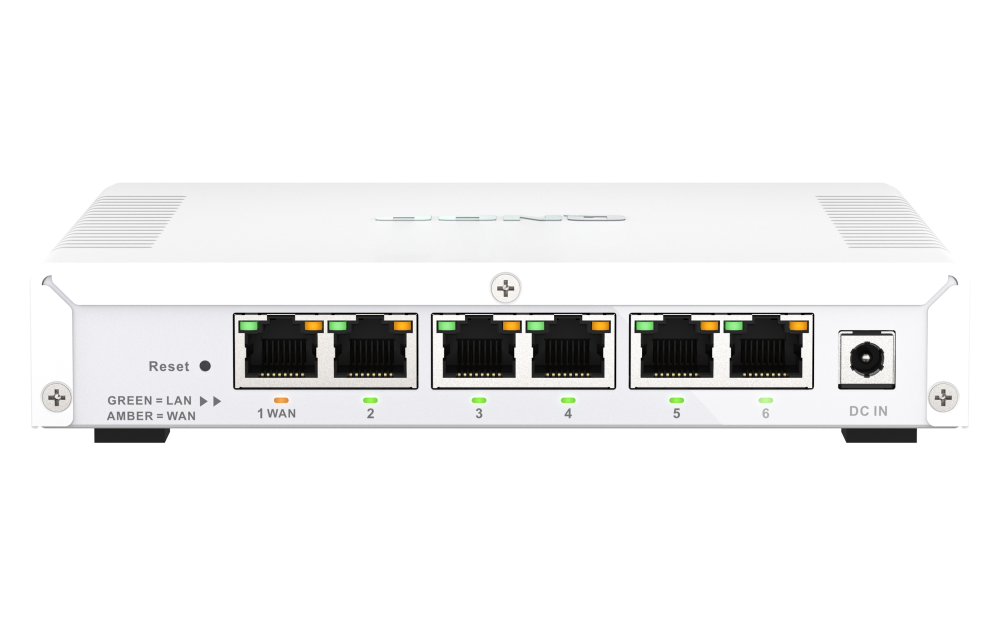

    The QHora-321 has six 2.5GbE ports for flexible WAN/LAN deployment.

  • Mesh VPN

    QuWAN SD-WAN technology automatically establishes a secure mesh VPN with QNAP devices at multiple sites.

  • Enterprise-grade VPN

    Enable up to 700 concurrent VPN connections with an optimal integrated hardware and software solution.

  • Intuitive management interface

    The QHora-321 uses the QuRouter OS, which features a user-friendly web-based UI to assist in everyday network management tasks.

  • Simple initialization settings

    Compared with conventional routers with complicated IP settings, the QHora-321 supports Automatic Device Search in WAN/LAN.

Hardware Spec



Number of Ethernet Ports6
2.5GbE (RJ45)6
CPUMarvell CN9130
Quad Core Armv8 Cortex-A72
Memory4GB DDR4
Flash Memory4MB SPI NOR Flash
4GB eMMC
ButtonReset
Power12V DC
Power consumption36W
Dimensions166.4 x 145.7 x 29.85mm
Weight0.81Kg
Packing weight1.35Kg
Operating Temperature0°C ~ +40°C
Operating Humidity5% to 95% non-condensing
CertificationsCE / FCC / VCCI / BSMI / RCM / CCC / UKCA
QNAP SD-WAN solution, QuWANYes




Software Spec



Standards Compliance
  1. IEEE 802.3 Ethernet
  2. IEEE 802.3u 100BASE-T
  3. IEEE 802.3ab 1000BASE-T
  4. IEEE 802.3bz 2.5G/5GBase-T
  5. IEEE 802.3an 10G BASE-T
  6. IEEE 802.1Q VLAN Tagging
  7. IEEE 802.3x Full-Duplex Flow Control



System Status and Management
  1. Device connection status
  2. Device health status
    • System uptime
    • CPU temperature
    • Firmware version detect
  3. Connected Devices
  4. WAN status overview
    • Link up / Link down



Wired Network Management
  1. Customer defined WAN/LAN interface setting for each physical port
  2. Physical interface setting status
  3. WAN/LAN configuration
  4. VLAN configuration
  5. Bridge (port group) configuration
  6. Network port connection status
  7. IEEE 802.1Q virtual LAN (VLAN)
  8. IPv4 / IPv6 routing management
    • Routing table
    • Static table
  9. DDNS
  10. DHCP table



Security
  1. Protocol-based firewall (TCP, UDP, ICMP, TCP+UDP)
  2. Firewall rules based on domain names and IP addresses
  3. Port forwarding and Network Address Translation (NAT)
  4. Support FTP ALG, PPTP ALG and SIP ALG
  5. DMZ



VPN
  1. Secure remote access with L2TP, WireGuard, OpenVPN and QBelt (QNAP proprietary) protocol
  2. Client IP pool configuration
  3. VPN user management
    • User status for QBelt / L2TP / OpenVPN / WireGuard
    • User settings for QBelt / L2TP / OpenVPN / WireGuard
  4. Connection logs
  5. Secure remote access as VPN client with OpenVPN protocol



Access Control
  1. Parental control
  2. Domain Name System (DNS) filtering and content filtering
System Setting
  1. Event logs
  2. Restart, Reset, Backup, Audio Alert
  3. Local account, QNAP ID, Remote management
  4. Diagnostics network status
  5. USB Settings: FTP Server, Device User, USB usage condition



QuWAN SD-WAN Service
  1. Auto multi-site VPN
  2. QuWAN QVPN management
  3. Traffic monitoring using QuWAN Orchestrator
  4. Quality of Service
  5. Edge devices monitor
Performance
  1. 50,000 concurrent sessions
  2. 160 Mbps QBelt VPN performance(multiple tunnels)
  3. 324 Mbps QuWAN performance
  4. Max 1000 QBelt connections support(Need managed through QuWAN)

* Actual performance may vary depending on network conditions and activated applications
