For NSA
The QM2-2P10G1TB allows you to easily add two M.2 NVMe SSDs and 10GbE RJ45 connectivity to your QNAP NAS. Compared with the SATA interface, the QM2-2P10G1TB's PCIe Gen3 x 8 interface provides higher bandwidth to deliver faster computing speed and data access.
For PC/Server
The QM2-2P10G1TB allows you to easily add two M.2 NVMe SSDs and 10GbE RJ45 connectivity to your PC/workstation. Compared with the SATA interface, the QM2-2P10G1TB's PCIe Gen3 x 8 interface provides higher bandwidth to deliver faster computing speed and data access.
The QM2-2P10G1TB features a 10GBASE-T Multi-Gigabit (10G/5G/2.5G/1G/100M) network port to empower your PC/workstation with 10GbE high-speed connectivity for bandwidth-demanding tasks. With QNAP's various 10GbE switches, you can easily upgrade to a high-speed network environment.
| Controller | Marvell AQC113C |
| Connector | 2 x M.2 2280 PCIe (Gen3 x4) NVMe SSD slots |
| PCIe and Lanes | PCIe Gen3 x8 |

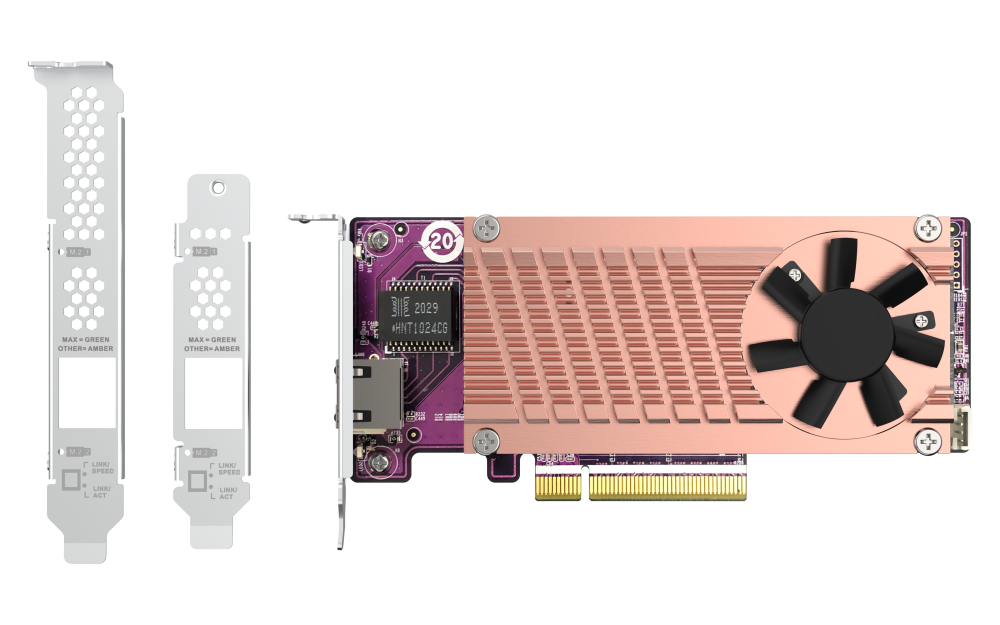

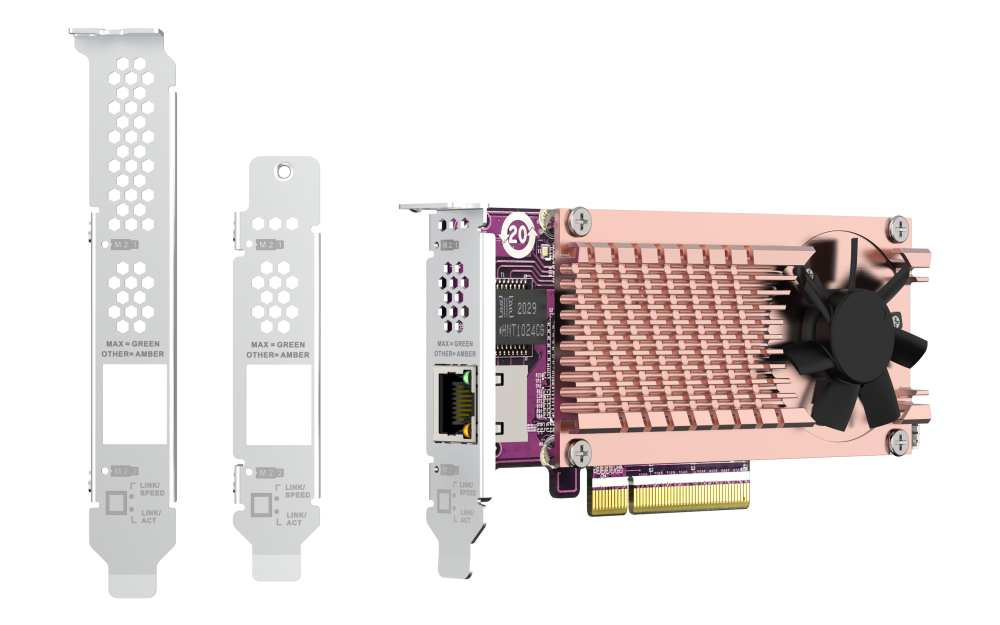

| Bracket | Low-profile (default). Low-profile flat and Full-height brackets are also included. |
| Dimensions (L x W x H) | 68.9 × 18.9 × 152.65 mm |
| Form factor | Low-profile |
| Cable | RJ-45; over CAT-6 class cable |
| Note [NAS] | Recommended models (please update your NAS to latest version) Note: The TS-x77 and TVS-x82(T) series only supports installing the QM2 in the System Zone PCIe slot (PCIe slot 1). Please check the M.2 SSD compatibility list and QM2 Installation Guide |
| Note [PC] | Note: Windows devices: The driver for QM2-2P10G1TB is required. Click here to download the driver |
