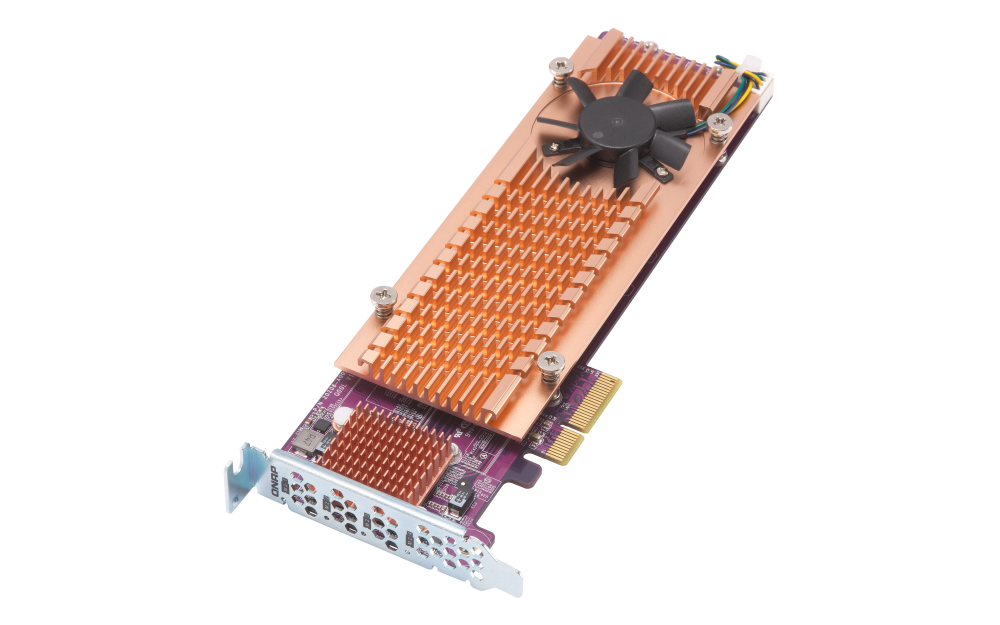

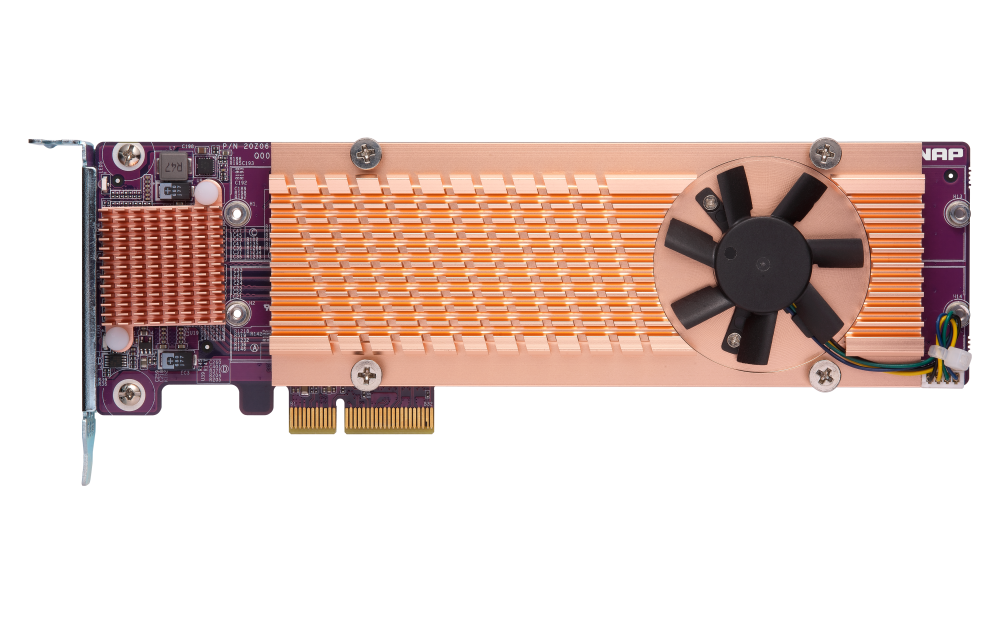

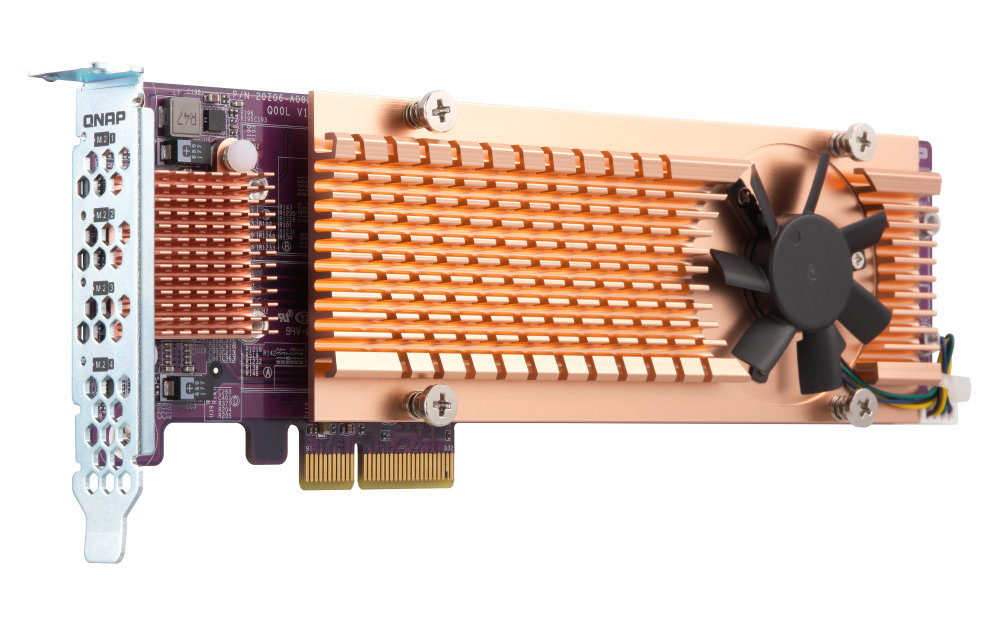

QNAP - QM2-4P-342 - Quad M.2 PCIe SSD expansion card
Part number:
QM2-4P-342
Price:
Quad M.2 PCIe SSD expansion card; supports up to four M.2 2280 formfactor M.2 PCIe (Gen3 x2) SSDs; PCIe Gen3 x4 host interface; Low-profile bracket pre-loaded, Low-profile flat and Full-height are bundled
For NSA
QM2 series PCIe cards add support for M.2 NVMe SSDs to a QNAP NAS, allowing users to configure SSD caching, a caching pool, or an auto-tiering volume to improve overall NAS performance.

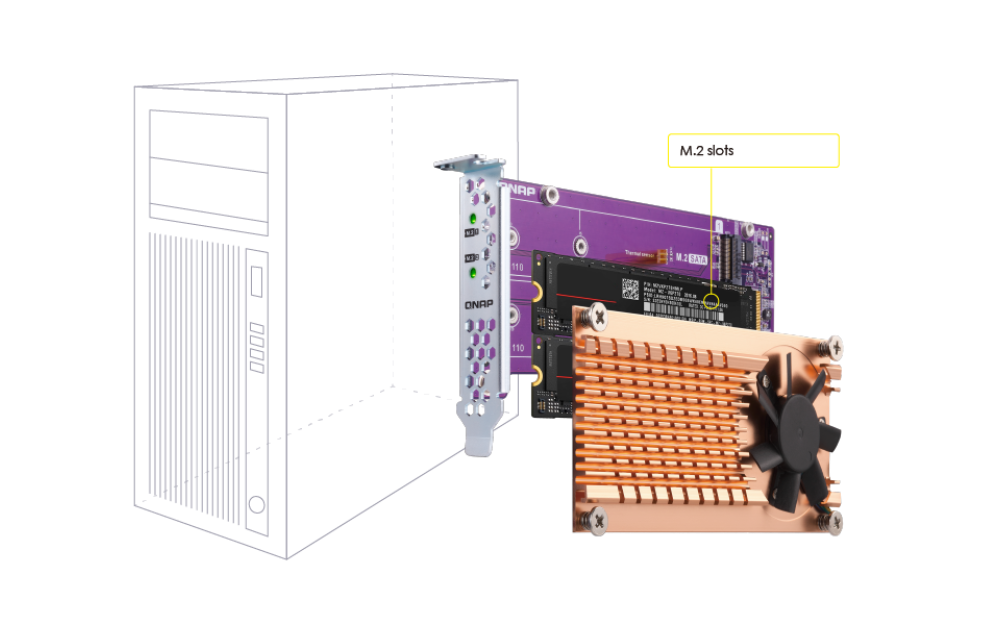

For PC/Server
QM2 series PCIe cards add support for M.2 NVMe SSDs to a QNAP NAS, allowing users to configure SSD caching, a caching pool, or an auto-tiering volume to improve overall NAS performance.
| Connector | 4 x M.2 2280 PCIe (Gen3 x 2) NVMe SSD slots |
| PCIe and Lanes | PCIe Gen3 x 4 |
| Bracket | Low-profile (default). Low-profile flat and Full-height brackets are also included. |
| Dimensions (L x W x H) | 204.95 × 68.9 × 20.6 mm |
| Form factor | Low-profile |
| Note [NAS] | Recommended models (please update your NAS to latest version) Note: The TS-x77 and TVS-x82(T) series only supports installing the QM2 in the System Zone PCIe slot (PCIe slot 1). Please check the M.2 SSD compatibility list and QM2 Installation Guide |
| Note [PC] | Note: The system BIOS and Operating System (OS) must be capable of supporting a PCIe NVMe SSD. Please refer to the technical manual of your system or consult with the vendor. |
