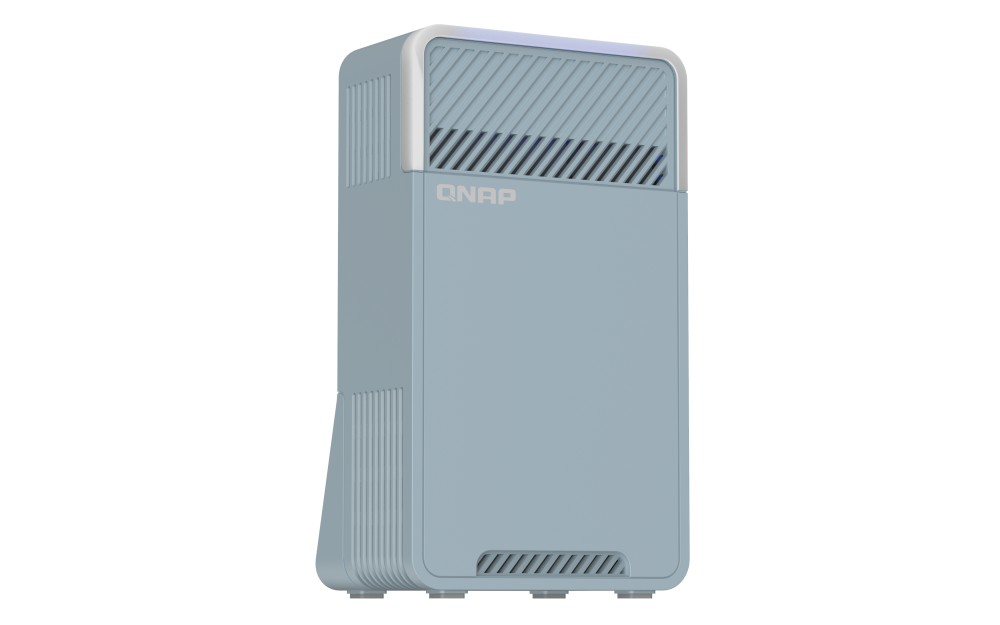

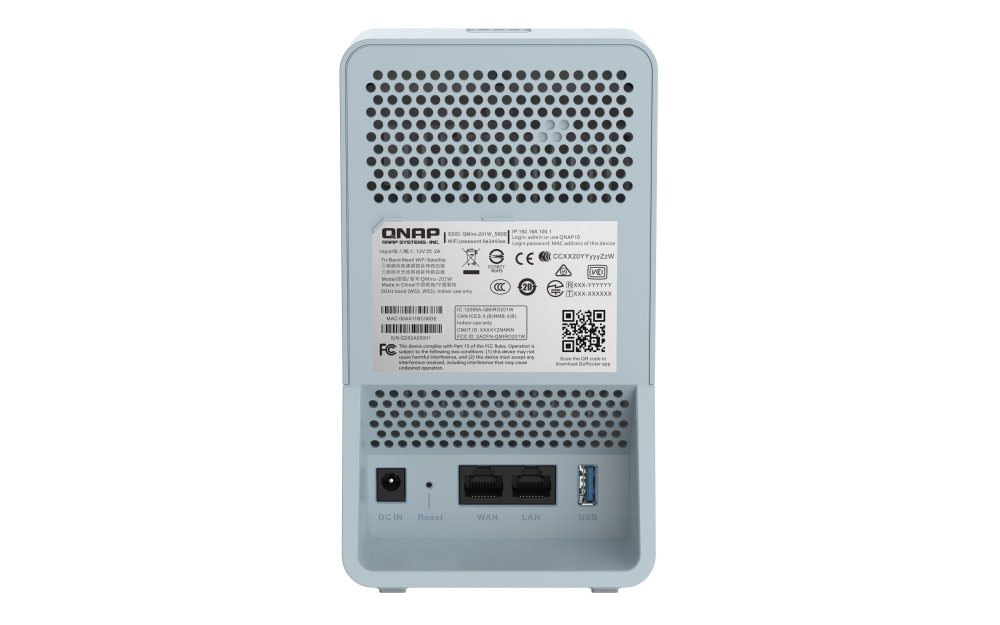

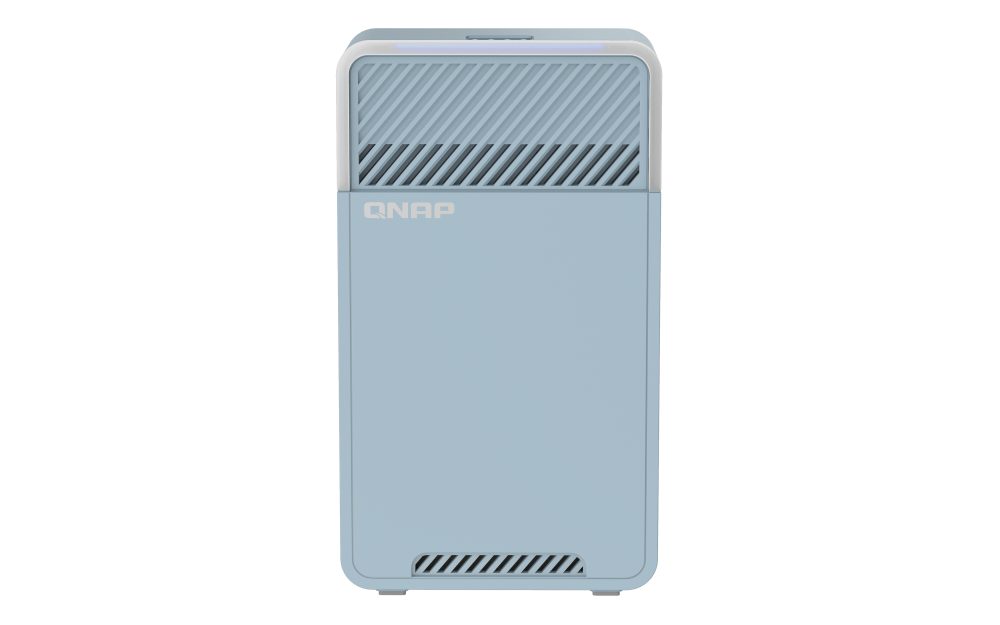

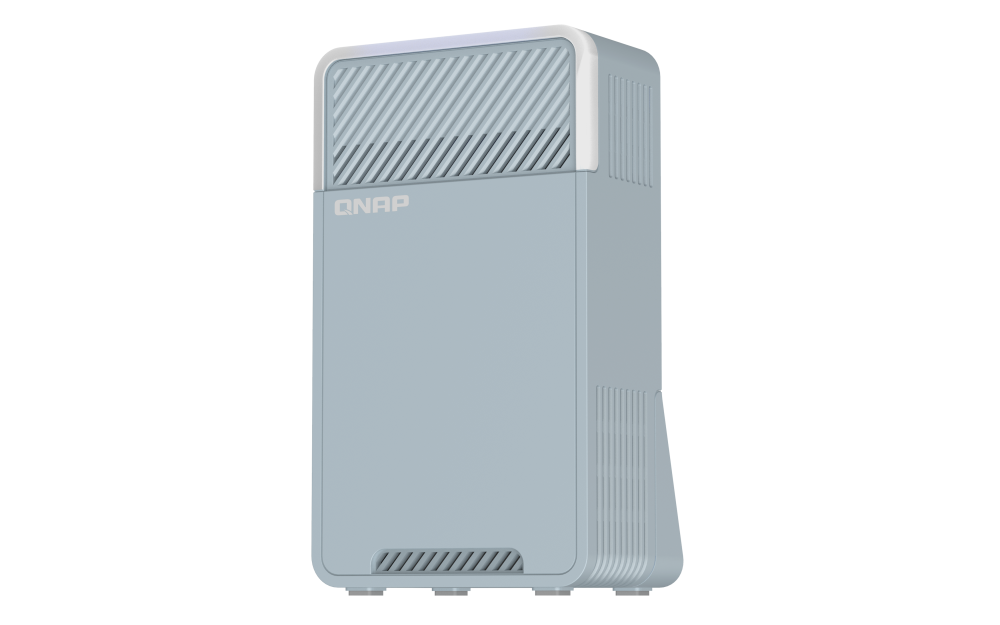

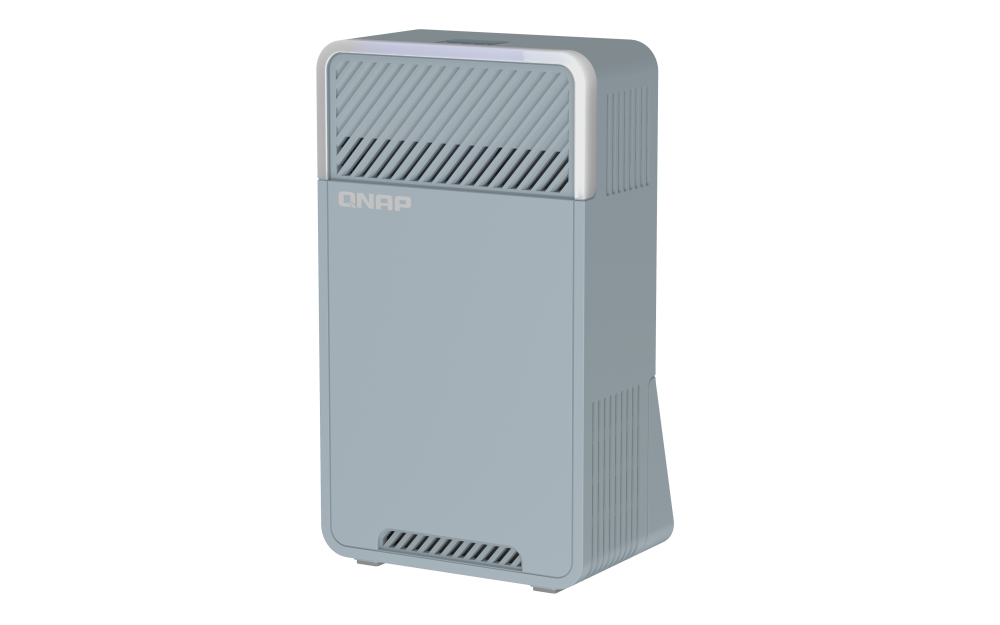

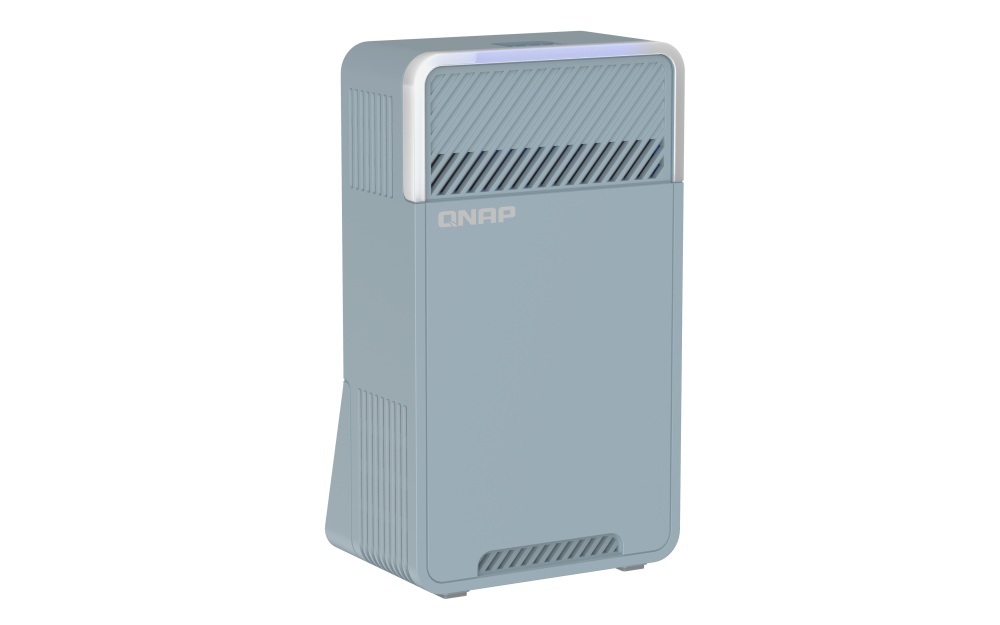

QNAP - QMiro-201W-US - QNAP QMiro-201W Tri-Band AC2200 Mesh WiFi SD-WAN Router
QNAP - QMiro-201W-US - QNAP QMiro-201W Tri-Band AC2200 Mesh WiFi SD-WAN Router
Part number:
QMiro-201W-US
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

To embrace the new normal of remote working, businesses must deploy both a remote VPN that is quickly accessible by multi-location users, and a high-speed in-premises solution covering wired and wireless connections. The QMiro-201W supports tri-band Mesh Wi-Fi 5 and an enterprise-grade SD-WAN VPN solution to enable multi-site VPN deployment via the QuWAN Orchestrator. Combined with a budget-friendly price, the QMiro-201W is a solid foundation for building next-generation networks.



Features:



  • Tri-band Wi-Fi

    Tri-Band Wi-Fi guarantees smooth and stable Wi-Fi connections via 2.4GHz, 5GHz and dedicated Mesh 5GHz frequencies.

  • Mesh Wi-Fi handover

    Supports Mesh Wi-Fi Handover for wide-range connectivity.

  • Mesh VPN

    Easily and securely connect to your company networks and multi-site VPN using the built-in QNAP SD-WAN solution, QuWAN.

Hardware Spec



Number of Ethernet Ports2
1GbE (RJ45)2
CPUQualcomm IPQ4019, Quad 4core ARM Cortex A7@716.8MHz
Memory512MB DDR3
Flash Memory4MB SPI NOR Flash
4GB eMMC
Wireless Antenna4 Internal Antennas
Wireless Standard802.11a/b/g/n/ac
Wireless Speed RatingAC2200
Wireless Speed 2.4 GHz2.4G (400Mbps): 2x2 Dual Band(20/40MHz)
Wireless Speed 5 GHz5G (867+867Mbps): 2x2 Dual Band(20/40/80MHz), 2x2 Single Band(20/40/80MHz)
Frequency Band 2.4 GHzYes
Frequency Band 5 GHZYes
Wireless Bandwidth20/40/80MHz
Transmit Output PowerDepends on country code
Wireless Antenna Type2 Internal dual band(2.4G/5G) antennas
2 Internal single band(5G) antennas
Antenna Gain 2.4 GHz4.6dBi, 2.7dBi
Antenna Gain 5 GHz4.9dBi, 6.0dBi
Transmission Power24dBm
Wi-Fi 5 (802.11ac)Yes
USB 3.2 Gen 1 port

1

Only for connecting USB dongle storage for FTP service on the router

BluetoothVersion 5
Bluetooth Antenna Gain2.3dBi
ButtonReset, WPS
Power12V DC
Power consumption24W
Dimensions68x100x175.5 mm
Weight0.44Kg
Packing weight1.11Kg
Operating Temperature0°C ~ +40°C
Operating Humidity5% to 95% non-condensing
CertificationsJATE / CE / FCC / BSMI / NCC / IC / SRRC / VCCI / RCM / OFCA
Wi-Fi Mesh(with Tri-Band)
QNAP SD-WAN solution, QuWANYes



Software Spec



Standards Compliance
  1. IEEE 802.3 Ethernet
  2. IEEE 802.3u 100BASE-T
  3. IEEE 802.3ab 1000BASE-T
  4. IEEE 802.3bz 2.5G/5GBase-T
  5. IEEE 802.3an 10G BASE-T
  6. IEEE 802.1Q VLAN Tagging
  7. IEEE 802.3x Full-Duplex Flow Control



System Status and Management
  1. Device connection status
  2. Device health status
    • System uptime
    • CPU temperature
    • Firmware version detect
  3. Connected Devices
  4. WAN status overview
    • Link up / Link down



Wired Network Management
  1. Customer defined WAN/LAN interface setting for each physical port
  2. Physical interface setting status
  3. WAN/LAN configuration
  4. VLAN configuration
  5. Bridge (port group) configuration
  6. Network port connection status
  7. IEEE 802.1Q virtual LAN (VLAN)
  8. IPv4 / IPv6 routing management
    • Routing table
    • Static table
  9. DDNS
  10. DHCP table



Security
  1. Protocol-based firewall (TCP, UDP, ICMP, TCP+UDP)
  2. Firewall rules based on domain names and IP addresses
  3. Port forwarding and Network Address Translation (NAT)
  4. Support FTP ALG, PPTP ALG and SIP ALG
  5. DMZ



VPN
  1. Secure remote access with L2TP, WireGuard, OpenVPN and QBelt (QNAP proprietary) protocol
  2. Client IP pool configuration
  3. VPN user management
    • User status for QBelt / L2TP / OpenVPN / WireGuard
    • User settings for QBelt / L2TP / OpenVPN / WireGuard
  4. Connection logs
  5. Secure remote access as VPN client with OpenVPN protocol



Access Control
  1. Parental control
  2. Domain Name System (DNS) filtering and content filtering
System Setting
  1. Event logs
  2. Restart, Reset, Backup, Audio Alert
  3. Local account, QNAP ID, Remote management
  4. Diagnostics network status
  5. USB Settings: FTP Server, Device User, USB usage condition



QuWAN SD-WAN Service
  1. Auto multi-site VPN
  2. QuWAN QVPN management
  3. Traffic monitoring using QuWAN Orchestrator
  4. Quality of Service
  5. Edge devices monitor
Performance
  1. 50,000 concurrent sessions
  2. 160 Mbps QBelt VPN performance(multiple tunnels)
  3. 324 Mbps QuWAN performance
  4. Max 1000 QBelt connections support(Need managed through QuWAN)

* Actual performance may vary depending on network conditions and activated applications
