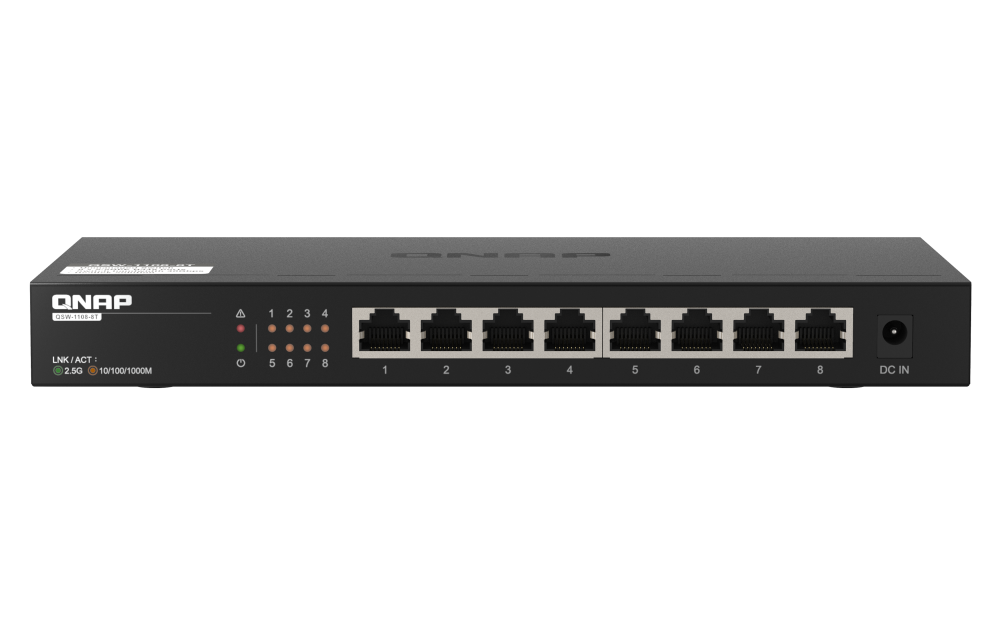

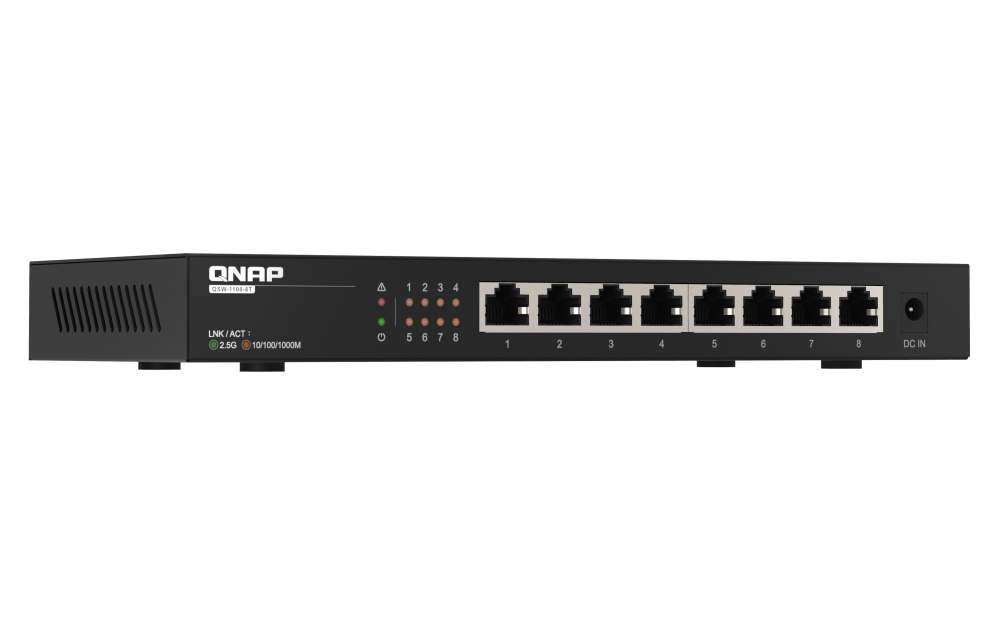

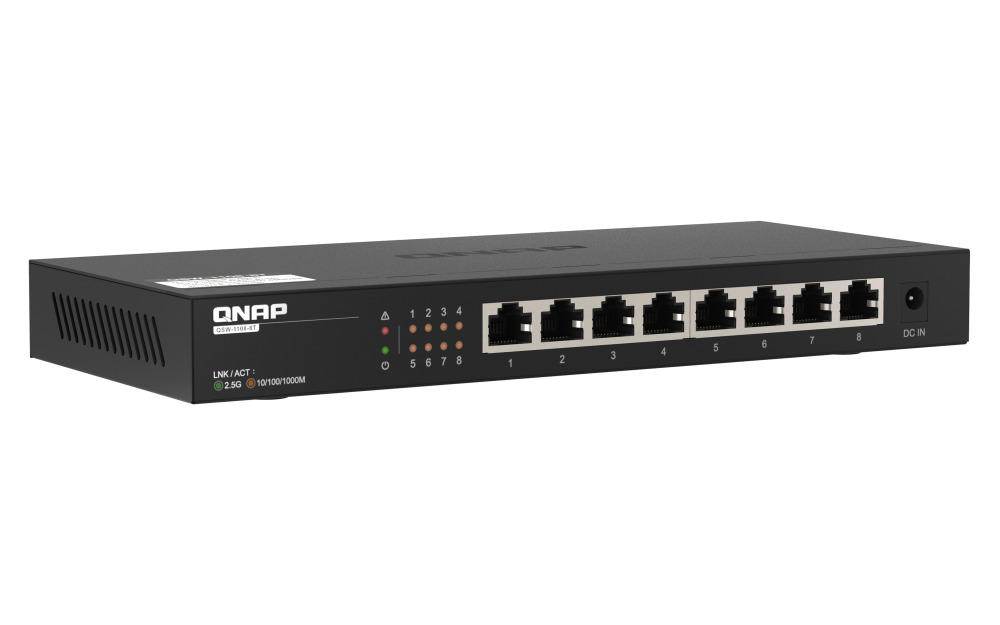

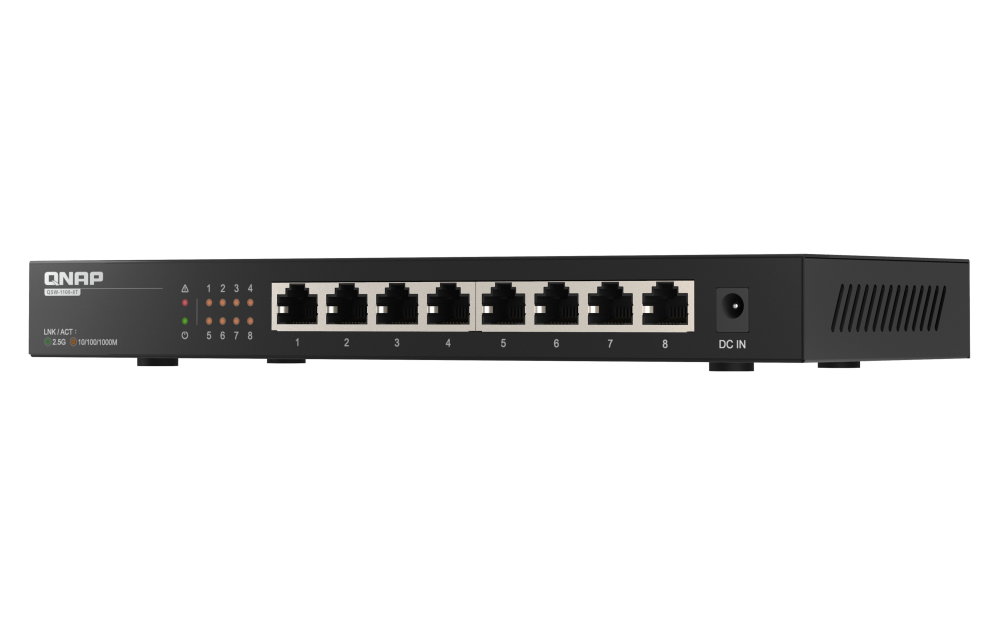

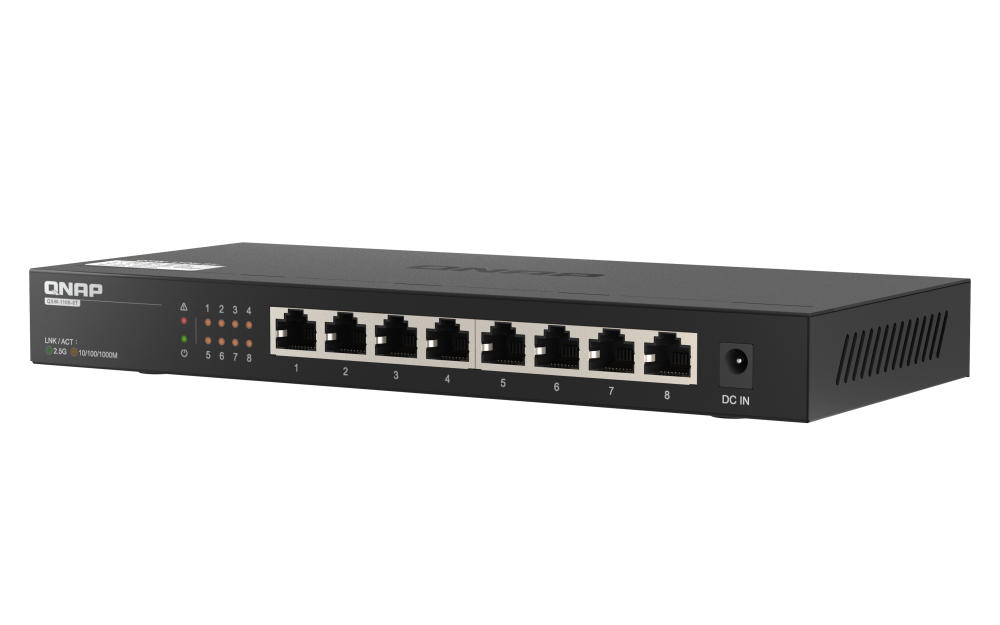

QNAP - QSW-1108-8T-US - QNAP Desktop QSW-1108-8T, Unmanaged Switch, 8 Port 2.5Gbps Auto Negotiation (2.5G/1G/100M) RJ45 port, Realtek RTL8371
Part number:
QSW-1108-8T-US
Price:
Unleash the potential of your 2.5GbE NAS and computers with a Multi-Gigabit 2.5GbE switch! With eight 2.5GbE ports, the QNAP QSW-1108-8T switch instantly upgrades your network to take advantage of 2.5GbE-enabled devices and NAS without requiring any new network cables. Featuring a near-silent fanless design and plug-and-play set up, the QSW-1108-8T provides network loop detection and blocking functions, making it easy for you to create an affordable high-speed network environment for your home or business.
Hardware Spec
| Management Type | Unmanaged |
| Number of Ports | 8 |
| 2.5GbE (RJ45) | 8 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 18W |
| Input Power Type | DC |
| Input Voltage Range | 12V/1.5A |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 20Gbps |
| Switching Capacity | 40Gbps |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | |
| Fanless | |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBase-T IEEE 802.3x Full-Duplex Flow Control |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Loop LED: Loop Per System: Power/Status |
| Dimensions (HxWxD) | 27 x 240 x 105 mm |
| Weight (Net) | 0.639 kg |
| Weight (Gross) | 0.99 kg |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~90% Non-condensing |
| Certifications | FCC, CE, BSMI, VCCI, LVD,CCC,KCC, UKCA |
| Electromagnetic Compliance | Class B |
| Jumbo Frames | 12K |
| Warranty | 2 Years |
