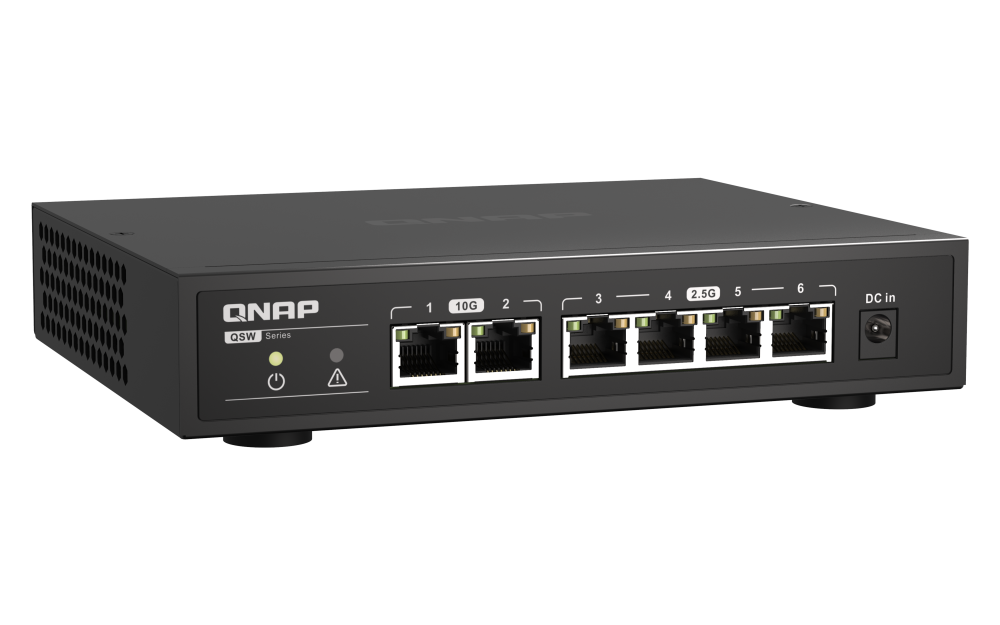

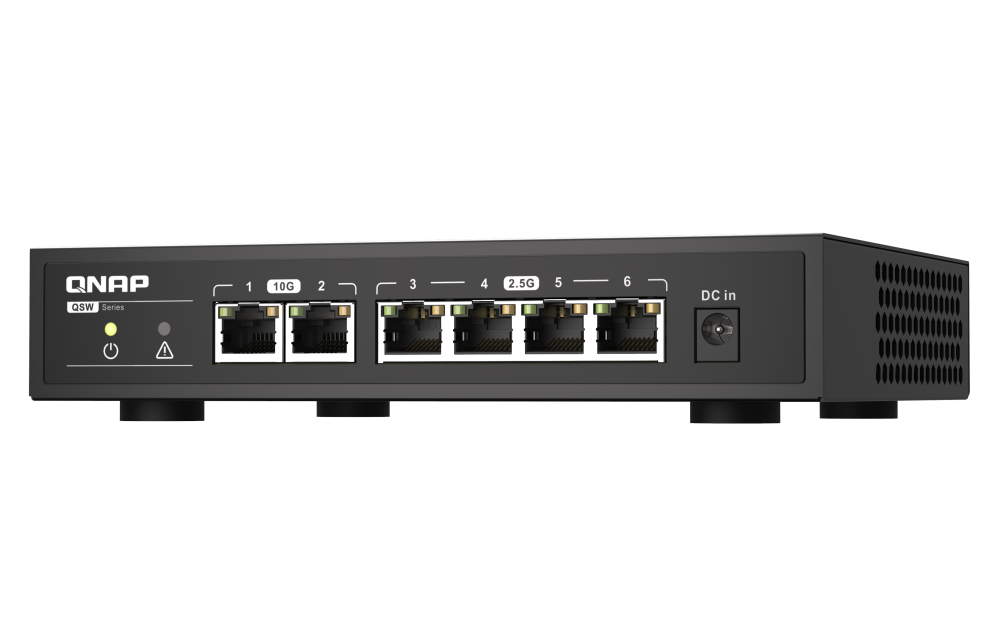

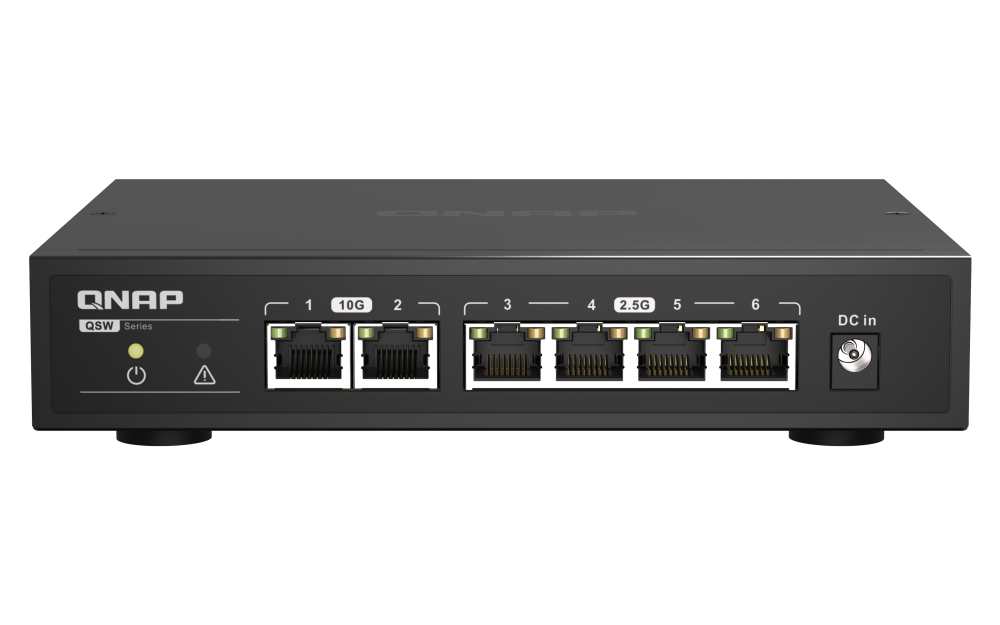

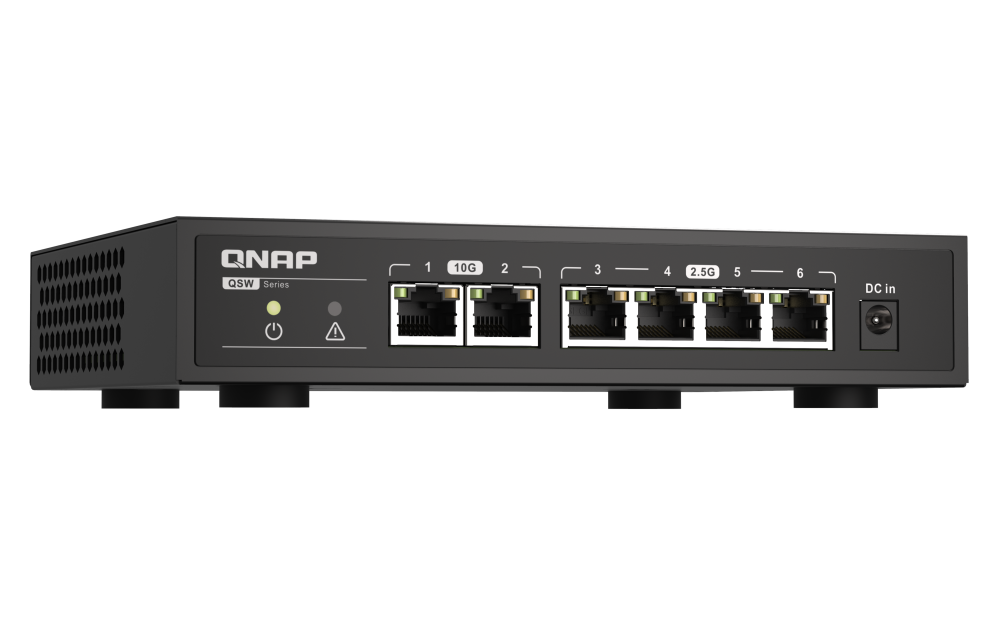

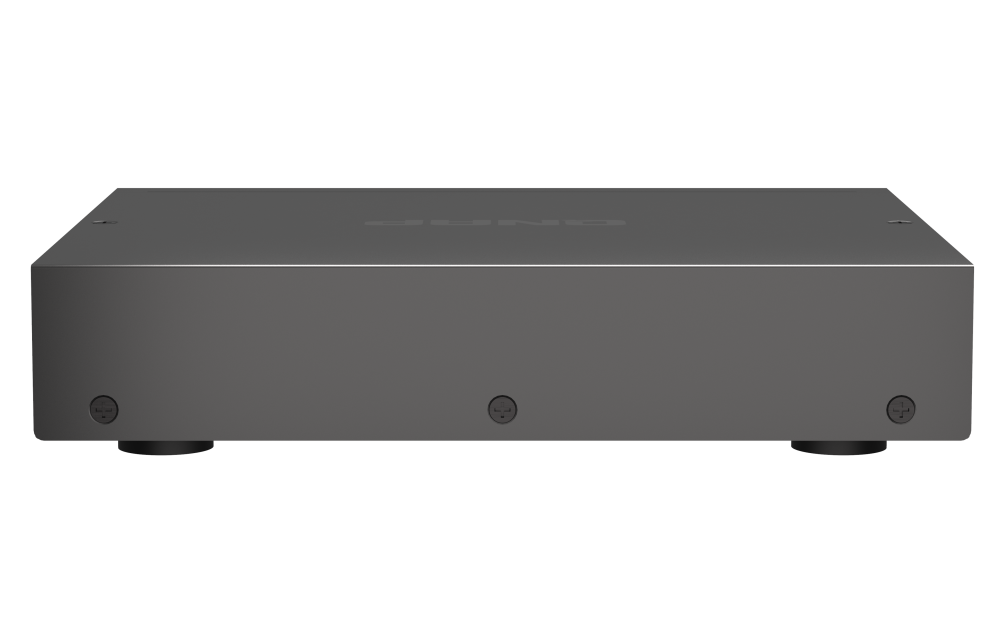

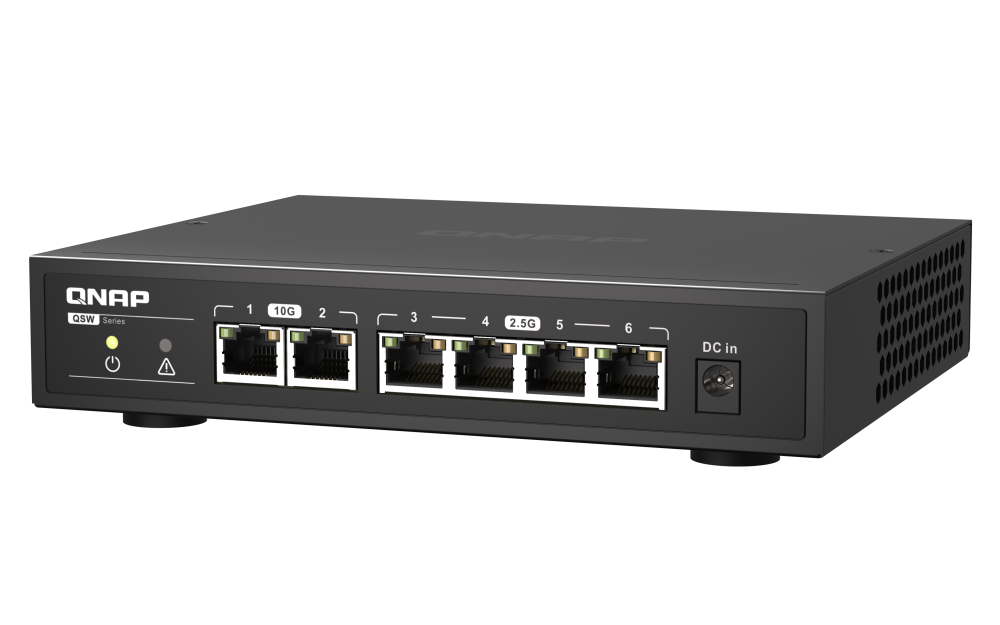

The QSW-2104-2T is an easy-to-use unmanaged switch with 2-port 10GbE RJ45 and 4-port 2.5GbE RJ45, allowing you to upgrade your network environment by connecting a wider range of devices with different bandwidth requirements. Featuring a near-silent fanless design and compliance with IEEE 802.3az (Energy Efficient Ethernet, EEE), the QSW-2104-2T operates quietly and with optimal power usage. With high performance and superb functionality, the QSW-2104-2T is the ideal choice for creating an affordable high-speed network environment in your home or workplace.
Features:
NBASE-T Ethernet
Two 10GbE RJ45 ports (compatible with the 10GBASE-T/NBASE-T™ standard) support 5 speeds (10G/5G/2.5G/1G/100M) to meet different bandwidth requirements.
2.5GbE connectivity
Four 2.5GbE RJ45 (2.5G/1G/100M) ports can immediately multiply your network speed by 2.5 times using existing Cat 5e cables.
Plug and play
No complex settings are required, and auto-negotiation ensures optimal performance.
Loop detection
Automatic loop detection and blocking to ensure continuous network operation.
Silent operation
The unique fanless design with ventilated construction provides noiseless operation.
Energy saving
IEEE 802.3az (EEE) helps to reduce power consumption for low-speed and inactive connections.
Hardware Spec
| Management Type | Unmanaged |
| Number of Ports | 6 |
| 10GbE BASE-T (RJ45) | 2 |
| 2.5GbE (RJ45) | 4 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 12W |
| Input Power Type | DC |
| Input Voltage Range | 12V/1A |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 30Gbps |
| Switching Capacity | 60Gbps |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | Yes |
| Fanless | Yes |
| Supported Standards | IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10GBase-T IEEE 802.3az Energy Efficient Ethernet (EEE)IEEE |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Loop LED: Loop Per System: Power/Status |
| Dimensions (HxWxD) | 34 x 180 x145 mm |
| Weight (Net) | 0.722 kg |
| Weight (Gross) | 1.02 kg |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 5~90% Non-condensing |
| Certifications | FCC, CE, BSMI, VCCI, LVD,CCC,KCC |
| Electromagnetic Compliance | Class B |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
