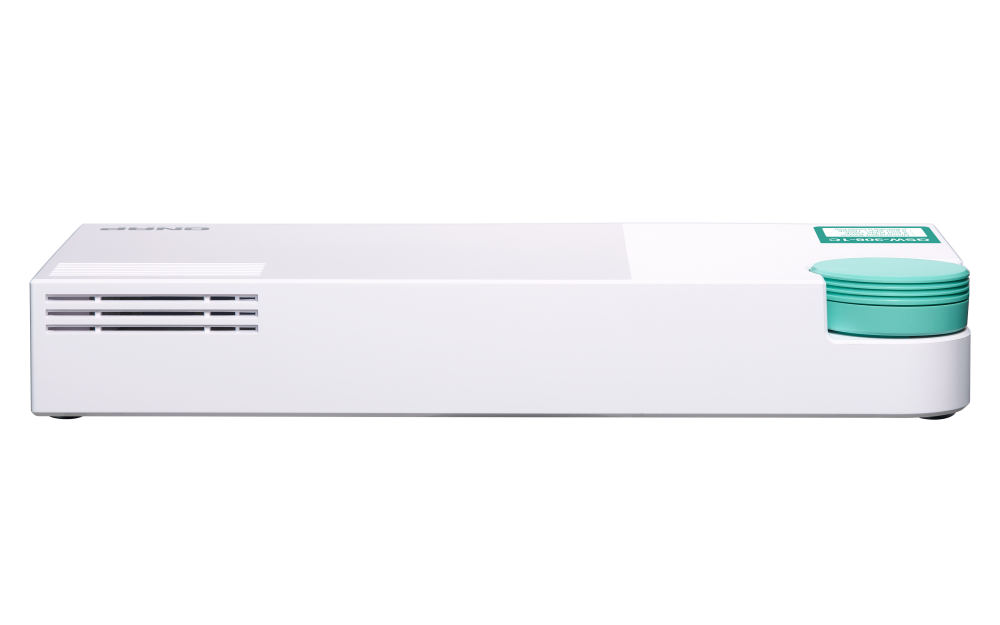

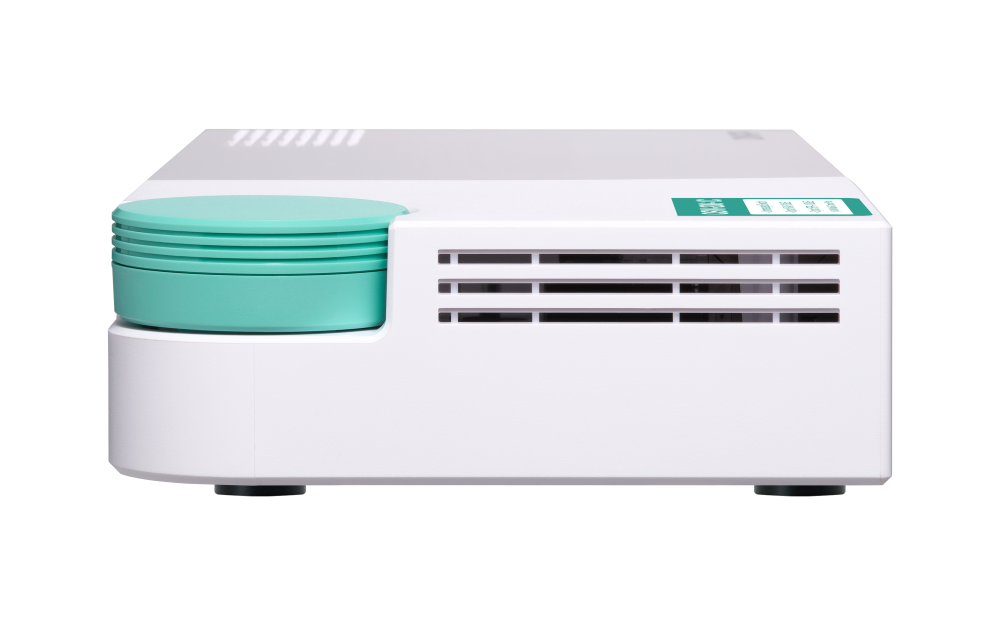

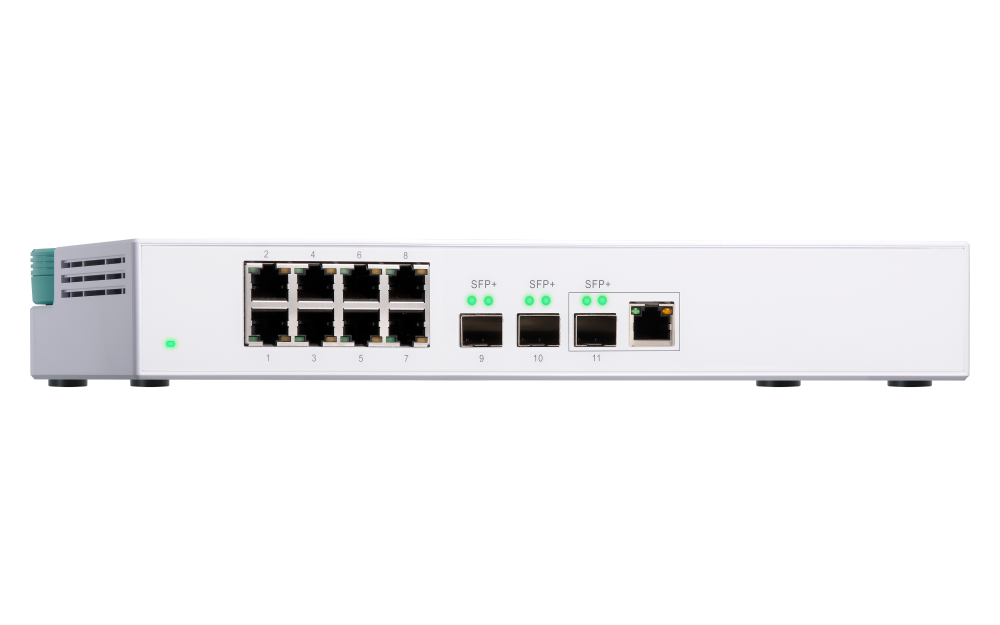

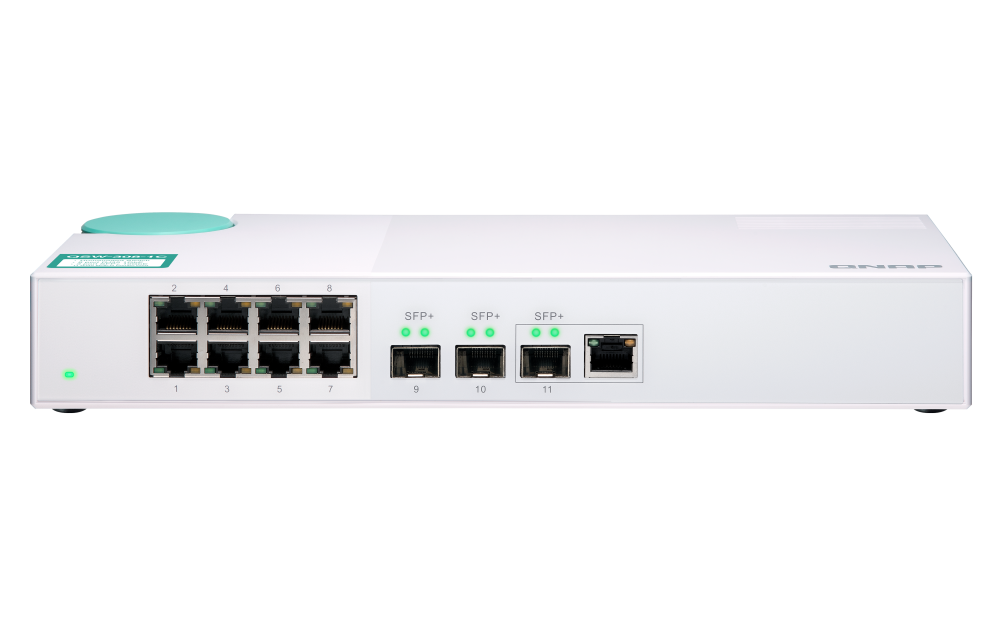

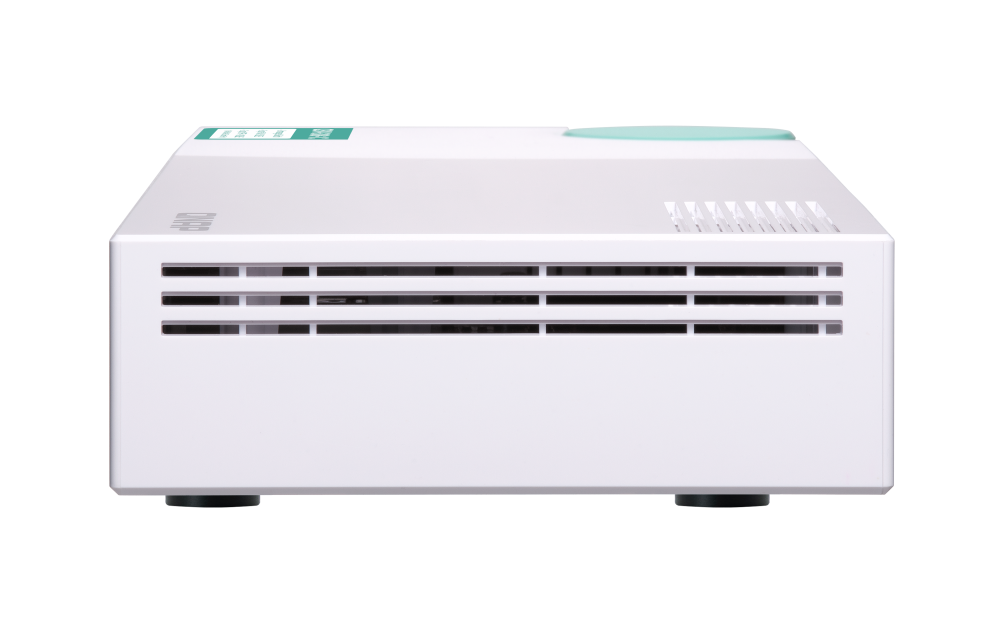

The QSW-308-1C is a 3-port 10G SFP+ and 8-port Gigabit Unmanaged Switch, providing three 10GbE SFP+ ports (with one 10GbE SFP+/RJ45 combo port) and eight Gigabit ports. The QSW-308-1C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price and is compatible with 10GbE and NBASE-T technologies to support up to five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo port also provides higher transmission speeds when used with existing cables. With its desktop size and silent operation, the QSW-308-1C perfectly blends into homes and offices while providing high performance, low latency and superb functionality.
Features:
10GbE connectivity
The QSW-308-1C provides three 10GbE SFP+ ports (with one 10GbE SFP+/RJ45 combo port) and eight Gigabit ports. QSW-308-1C is compatible with 10GbE and NBASE-T technologies to support five speeds (10G / 5G / 2.5G / 1G / 100M). The SFP+/RJ45 (copper) combo port offers higher transmission speeds when used with existing cables.
Silent operation
The unique fanless design with ventilated construction provides silent operations while maintaining high performance.
Plug and play
Simply connect the QSW-308-1C to your devices and it will do the rest. It supports auto-negotiation for optimal speed and duplex detection when connecting different devices.
Hardware Spec
| Management Type | Unmanaged |
| Number of Ports | 11 |
| 10GbE SFP+ | 2 10G only |
| 10GbE SFP+/RJ45 Combo Ports | 1 Note1: The 10GbE SFP+ ports are not backward compatible with 1GbE SFP; the RJ45 (copper) combo port supports up to five speeds (10G/5G/2.5G/1G/100M). |
| 1GbE (RJ45) | 8 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 36W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 38Gbps |
| Switching Capacity | 76Gbps |
| Fan | Fanless |
| Fanless | Yes |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3an 10GBASE-T IEEE 802.3bz 2.5G/5G BASE-T Multi-Gig Ethernet |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status |
| Dimensions (HxWxD) | 42.5 × 290 × 127 mm |
| Weight (Net) | 0.77 kg |
| Weight (Gross) | 1.19 kg |
| Operating Temperature | 0 - 40˚C / 32~104°F |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI RCM, CCC |
| Electromagnetic Compliance | CLASS B, UL62368 |
| Jumbo Frames | 10k |
| Warranty | 2 Years |
